Operating elements for crane operation
9.2 Short description of the operating elements
9 - 134 Operating manual
GMK5150L
Maximum permissible working radius display
Shows the maximum permissible working
radius (5) for each slewing range.
Current working radius display
Current slewing angle display
Current position display
– When slewing
The display (3) remains at the current position. The chart moves a
corresponding distance to the right or left.
– When telescoping or derricking
The diagram remains at the current position. The display (3) moves a
corresponding distance up or down.
à Slewing range type Standard, p. 11 - 53
à Slewing range type MAXbase, p. 11 - 55

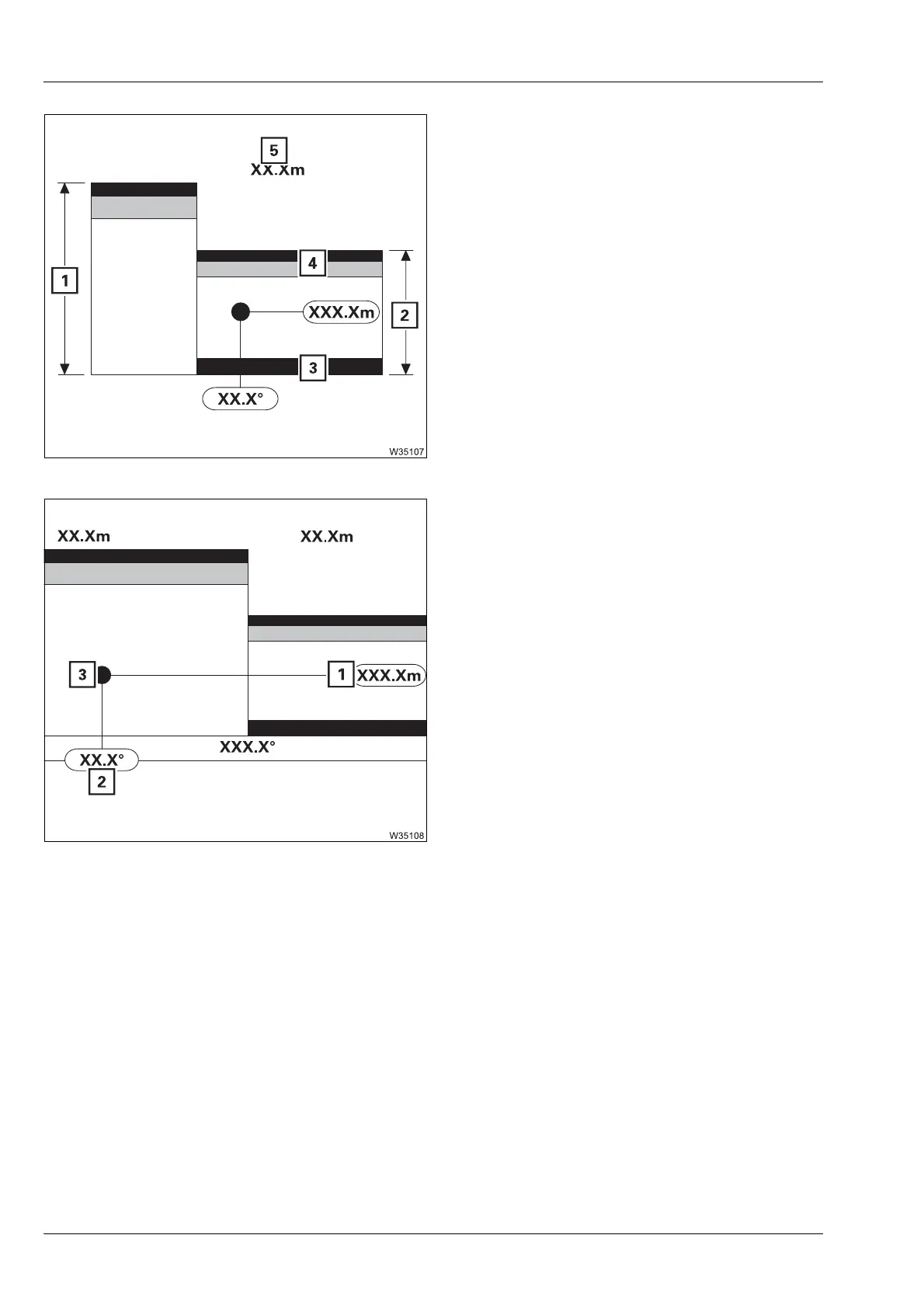

1 Display area – always corresponds to the
largest maximum working radius (5)
2 Maximum permissible working radius in
the corresponding slewing range with the
currently lifted load
3 White – limit region for minimum
permissible working radius (display only
with active limitation)
4 Red/yellow – limit region for maximum
permissible working radius
1 Display occurs in the same manner as in
the
Monitoring menu; à p. 11 - 49.
2 Display occurs in the same manner as in
the
Monitoring; menu; à p. 11 - 50.
3 Shows the current position of the boom
head in the slewing range and working
radius range.
