Rigging work
12.10 Rigging work on the main boom
12 - 124 3 302 709 en Operating manual
GMK5150L
12.01.2018
12.10.5 Reeving and unreeving the hoist rope
You must reeve a certain number of rope lines, depending on the required
load bearing capacity. Four reeved rope lines correspond, for example,
to 4-fall reeving;
à Possible reevings on the main boom, p. 12 - 132.
To reeve and unreeve the hoisting rope, you must remove the pocket lock.
After reeving you must reattach the pocket lock.
There are A or B versions.

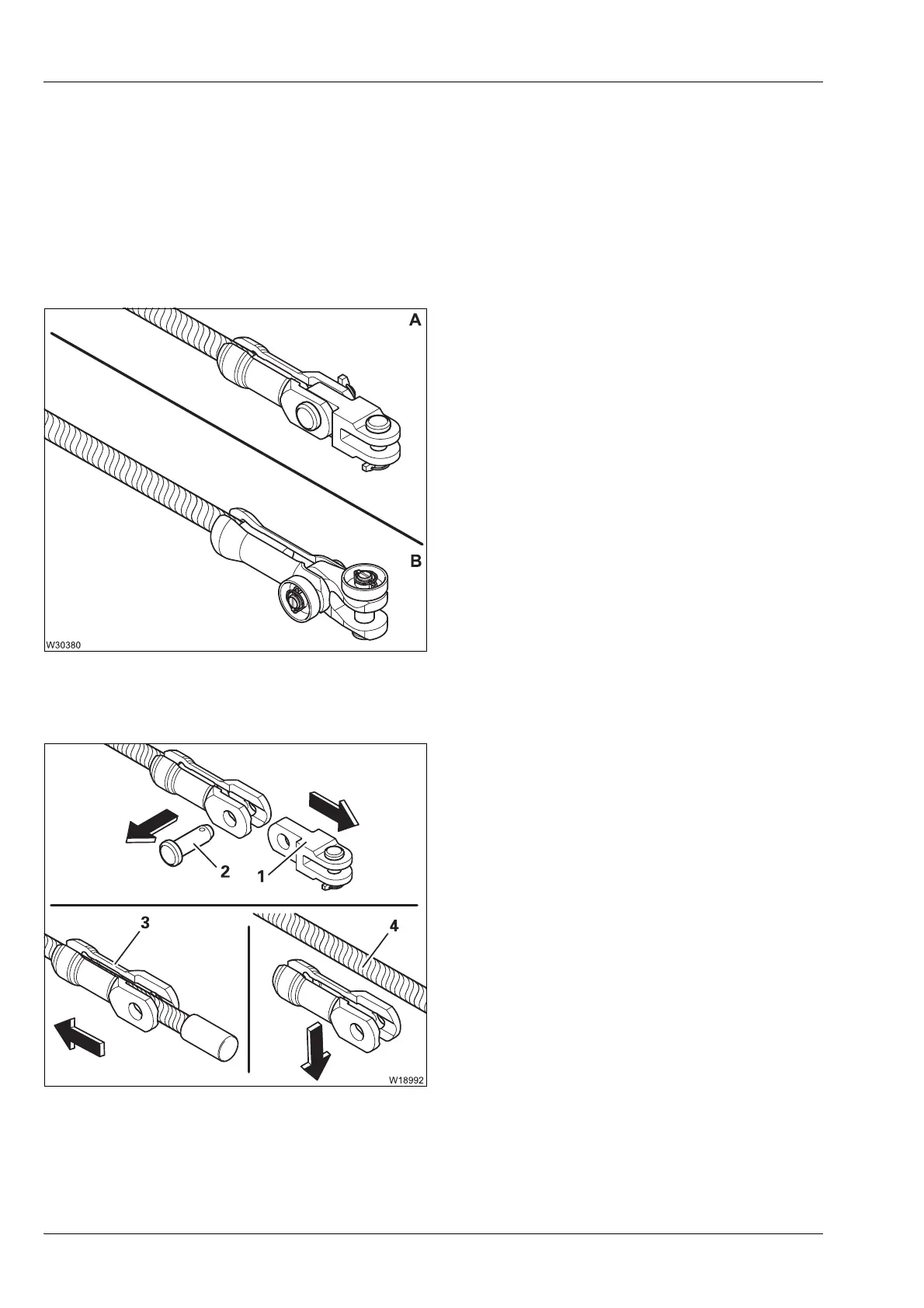

Version A
Removing
• Pull the pin (2) out and remove the fork
element (1).
• Slide the holder (3) back and remove it from
the hoist rope (4).
