Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 709 en 12 - 125
GMK5150L
12.01.2018

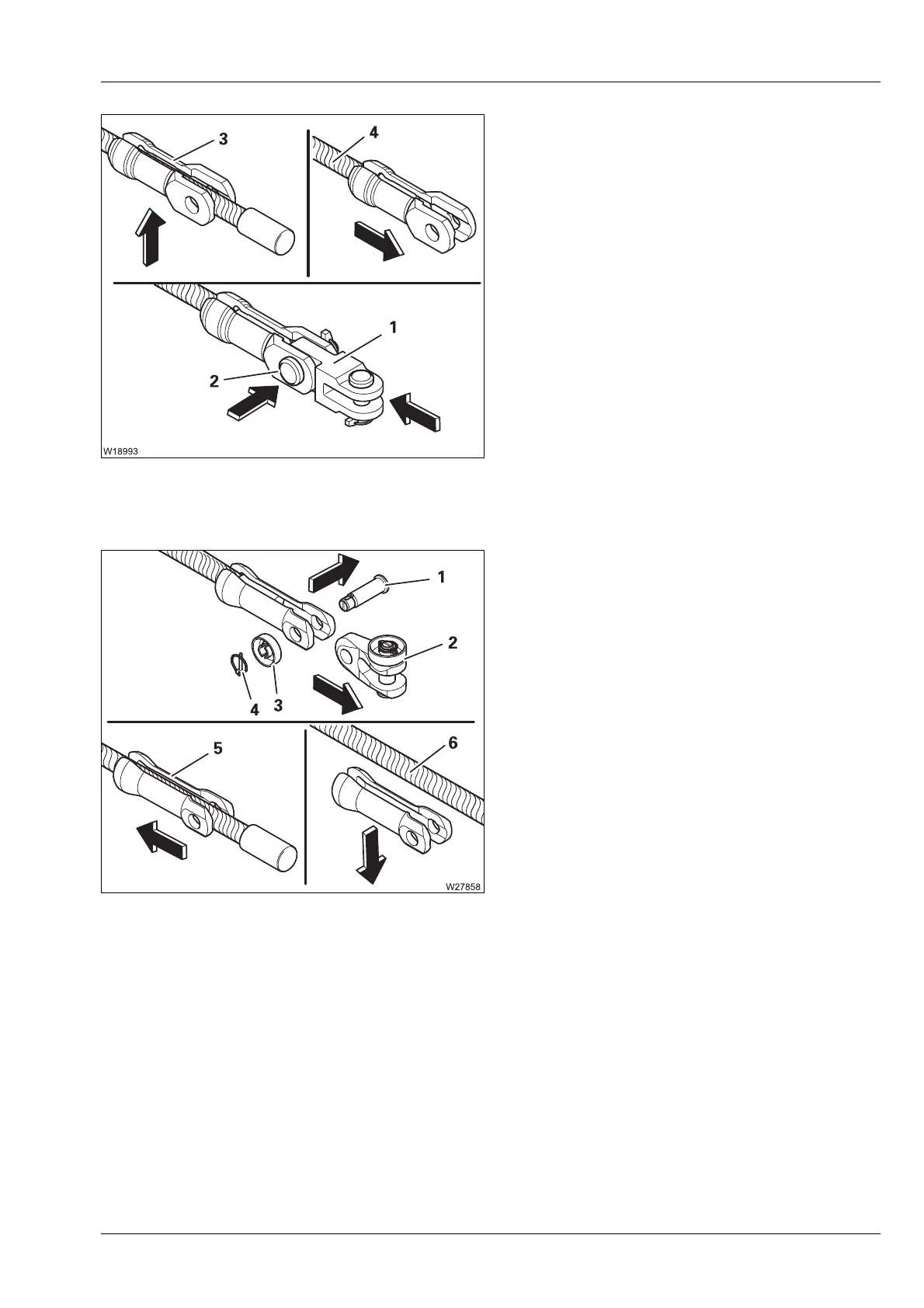

Positioning
• Plug the holder (3) and slide it onto the hoist
rope as far as it will go (4).
• Fasten the fork (1) using the pin (2).
• Secure the pin.
Version B
Removing
• Remove the linchpin (4).
• Release the locknuts (3) and pull out the
pins (1). Remove the bracket (2).
• Slide the padlock (5) back and remove it
from the hoist rope (6).
