Crane operation
11.7 Working range limiter
Operating manual 3 302 709 en 11 - 137
GMK5150L
12.01.2018
In the CCS
Start menu
The RCL shows the limited working range for the Slewing angle and Working
radius
monitoring systems.
Display examples for switched-on
Slewing
angle
and Working radius monitoring systems.
11.7.2 Opening the working range limiter menu
•
If necessary, open the overview of the menu
groups and select the corresponding
symbol (1) to (4).
The corresponding menu will open, and
you can enter limit values and switch the
monitoring on and off.
s

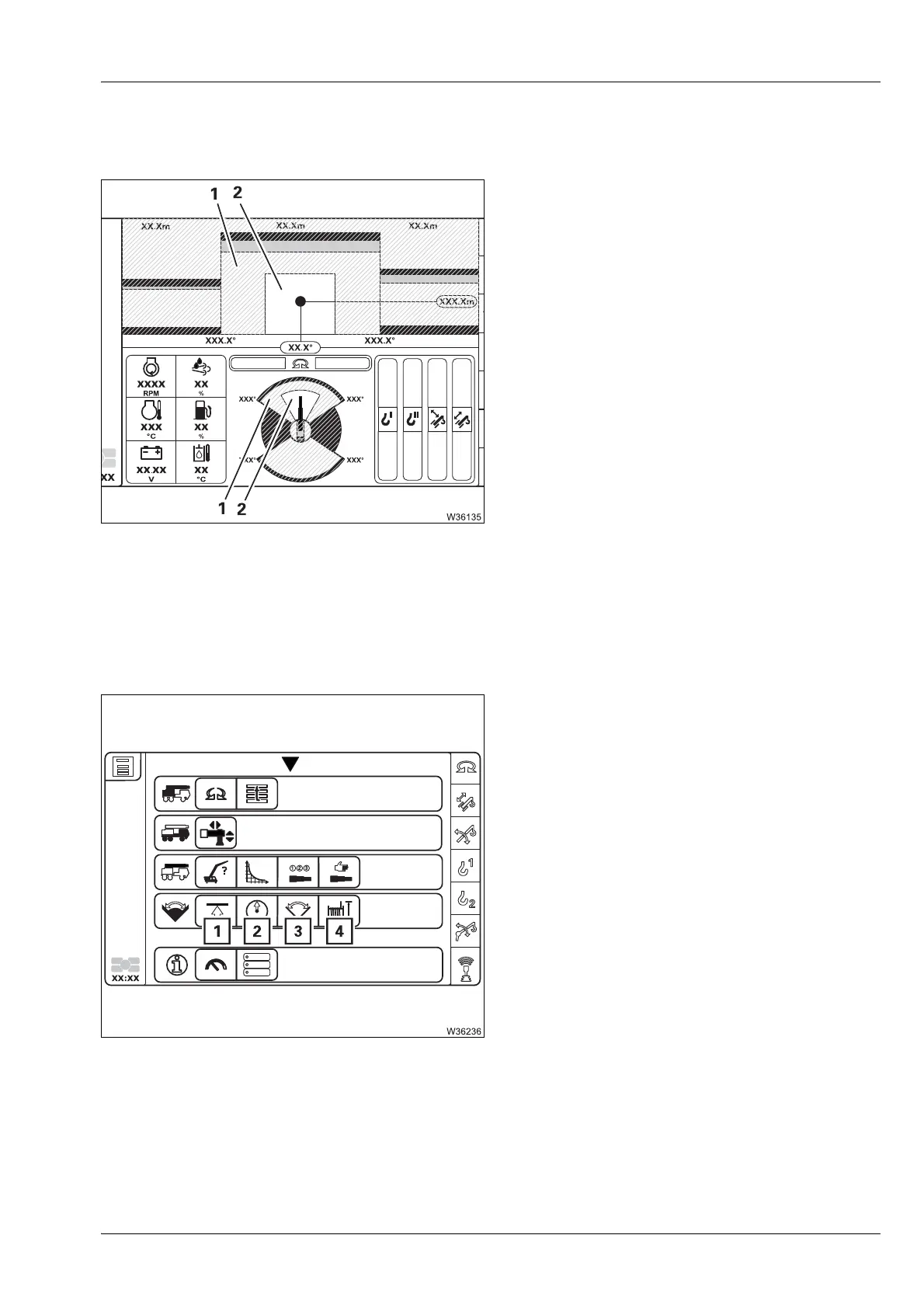

1 Permissible working range according to
the
Lifting capacity table – shown darkened
2 Limited working range – shown lightened
1 For the overall height; Ã p. 11 - 138
2 For the working radius;
à p. 11 - 140
3 For the slewing range;
à p. 11 - 142.
4 For the hoist rope monitoring;
à p. 11 - 145
