Operating elements for crane operation
9.2 Short description of the operating elements
9 - 116 Operating manual
GMK5150L
Warning for lifting limit switch shutdown

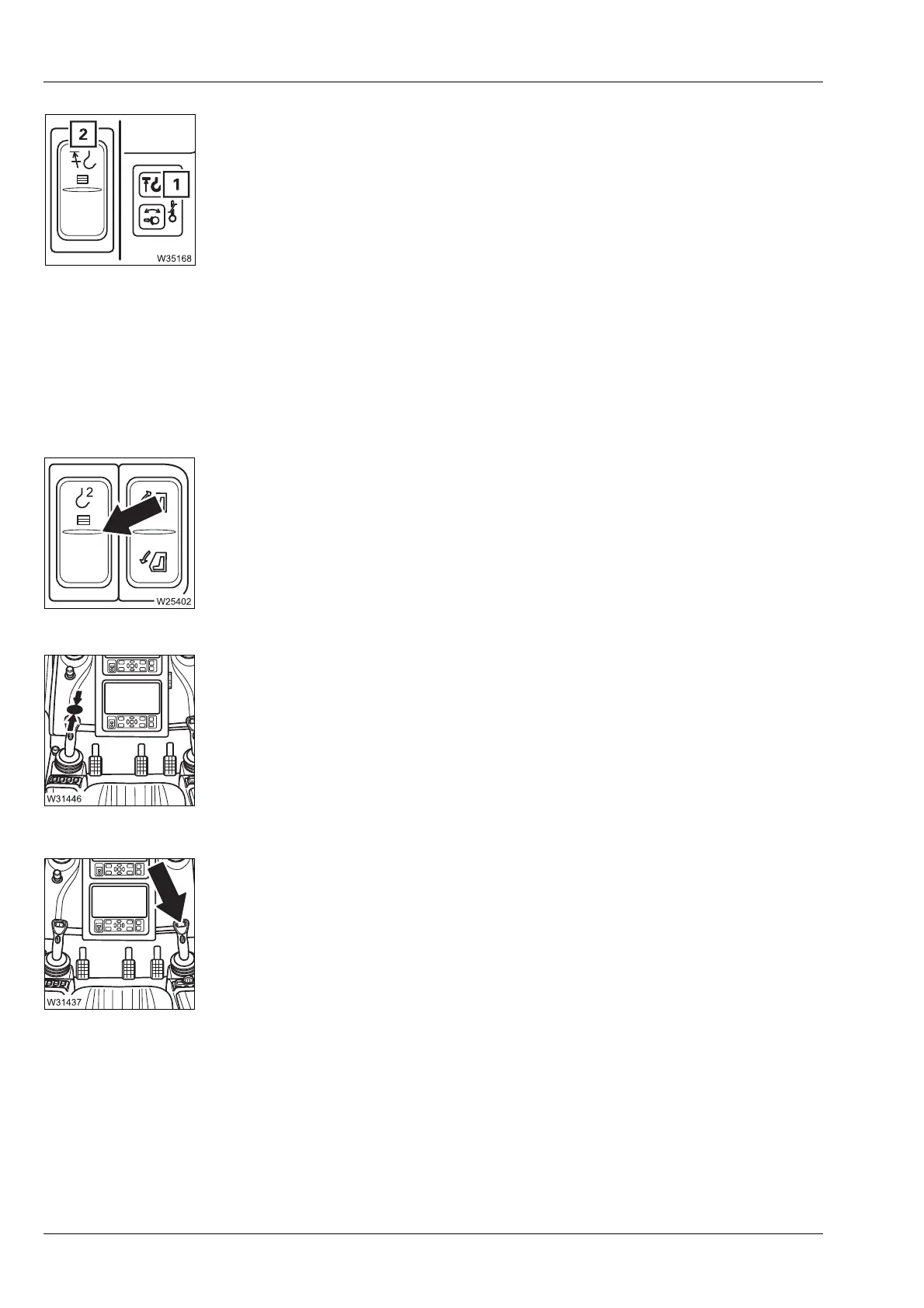

9.2.15 Auxiliary hoist
Control panels
Auxiliary hoist on/off
There is a lamp in the button.
Left control lever
Hoist high-speed mode on/off
The parking brake is engaged.
1–On: Lifting limit switch triggered – movements which
increase the load moment stops
1 – Flashing: Button (2) pressed
1–Out: Lifting limit switch not triggered and not bridged
à p. 11 - 82
– Press once: – Lamp bright – auxiliary hoist on
– Lamp dim – auxiliary hoist off
à p. 11 - 79
– Back: Lifting
–Forward: Lowering
à p. 11 - 80
–Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to right or once
to left:
High-speed mode off
à p. 11 - 113
