Manitowoc GROVE GMK5150L User Manual

Driving modes and rigging for on-road driving
6.5 Rigging the auxiliary hoist
6 - 40 3 302 709 en Operating manual
GMK5150L
12.01.2018

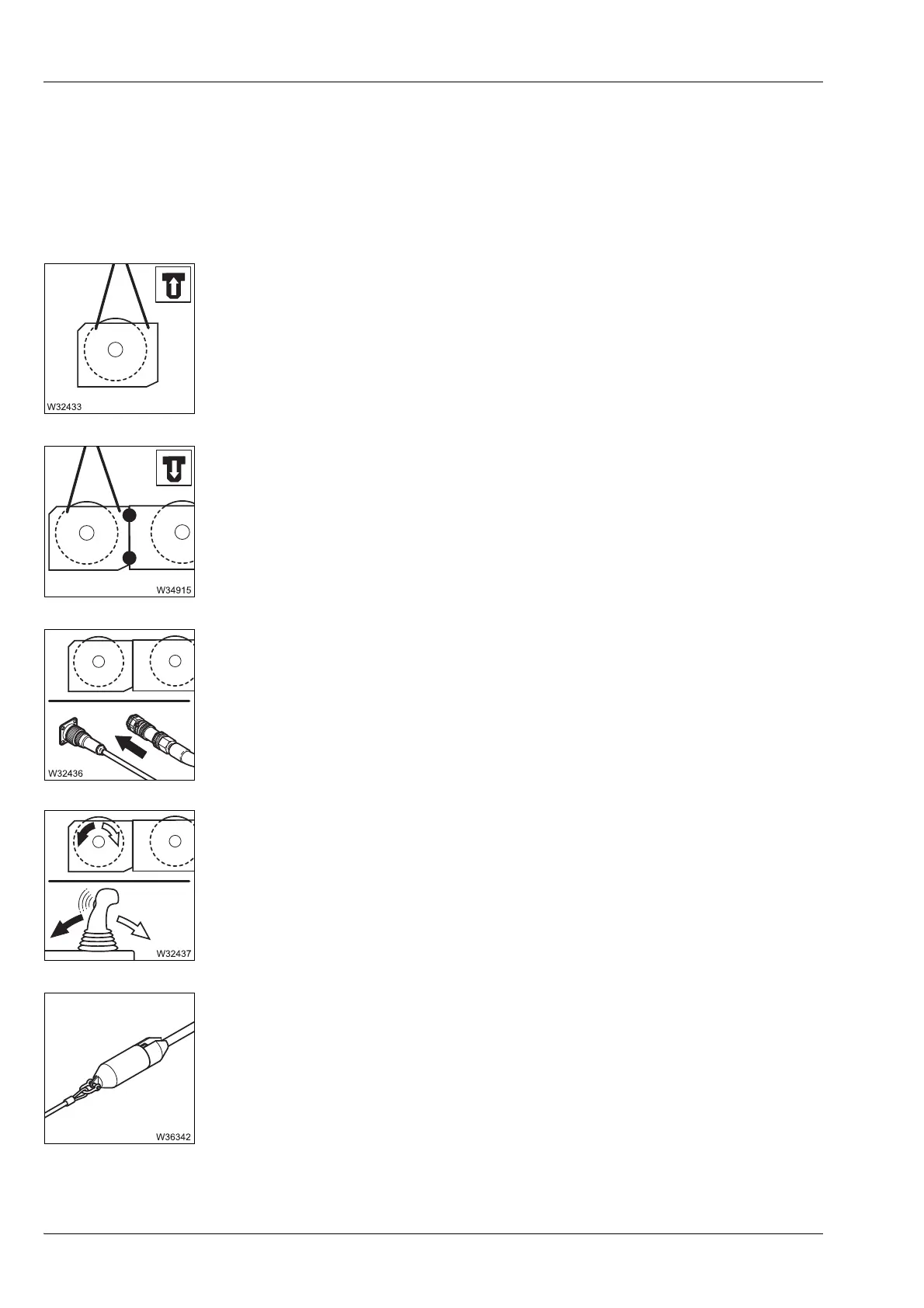

6.5.2 CHECKLIST: Installing the auxiliary hoist
– The superstructure is slewed to the front.
– The main boom is resting in the boom rest.
1. Attach the auxiliary hoist at the centre of gravity and remove the pins
from the connection points;
à p. 6 - 39.
2. Lift the auxiliary hoist on to the turntable and make the connections;
à p. 6 - 42.
3. – Make the hydraulic connections;
à p. 6 - 43.
– Make the electrical connection;
à p. 6 - 44.
– Establish the connection to the central lubrication;
à p. 6 - 45
4. – Check that the auxiliary hoist is functioning properly;
à p. 6 - 47.
5. – Fit the hoist rope, using the rigging aid if necessary;
à p. 6 - 48.
– Reeve the hoist rope;
à p. 12 - 124.
