6.5 Rigging the auxiliary hoist
6 - 42 3 302 709 en Operating manual
GMK5150L
12.01.2018
6.5.4 Making/breaking the connection between the auxiliary hoist
and the turntable
Making the connection

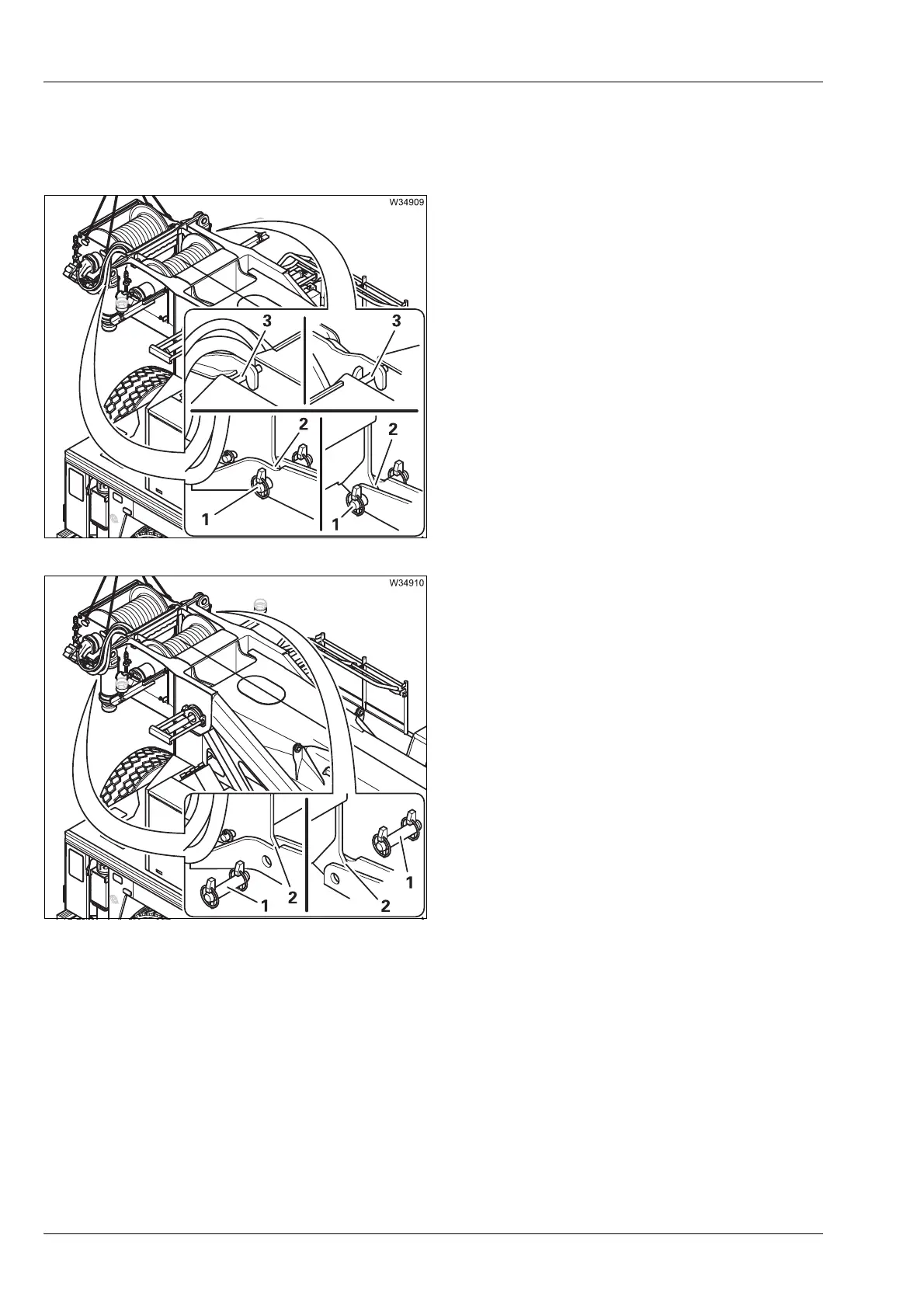

• Suspend the auxiliary hoise in the connect-
ing points (3) at the turntable.
• Lower the auxiliary hoist until the connect-
ing points (2) align.
• Insert the pins (1) and secure them.
Undoing the connection
• Attach the auxiliary hoist on to an auxiliary
crane.
• Remove the pins (1) from the connecting
points (2).
• Lift the auxiliary hoist off the turntable.
• Lift the auxiliary hoist on to a separate
vehicle;
à p. 6 - 46.
