Driving modes and rigging for on-road driving
6.5 Rigging the auxiliary hoist
Operating manual 3 302 709 en 6 - 39
GMK5150L
12.01.2018
6.5 Rigging the auxiliary hoist
You will require the following equipment with a sufficient load bearing
capacity:
– An auxiliary crane
– Suitable lifting gear and guide ropes,
– A separate vehicle.
Transport dimensions and weight;
à p. 1 - 13.
6.5.1 Slinging the auxiliary hoist
•

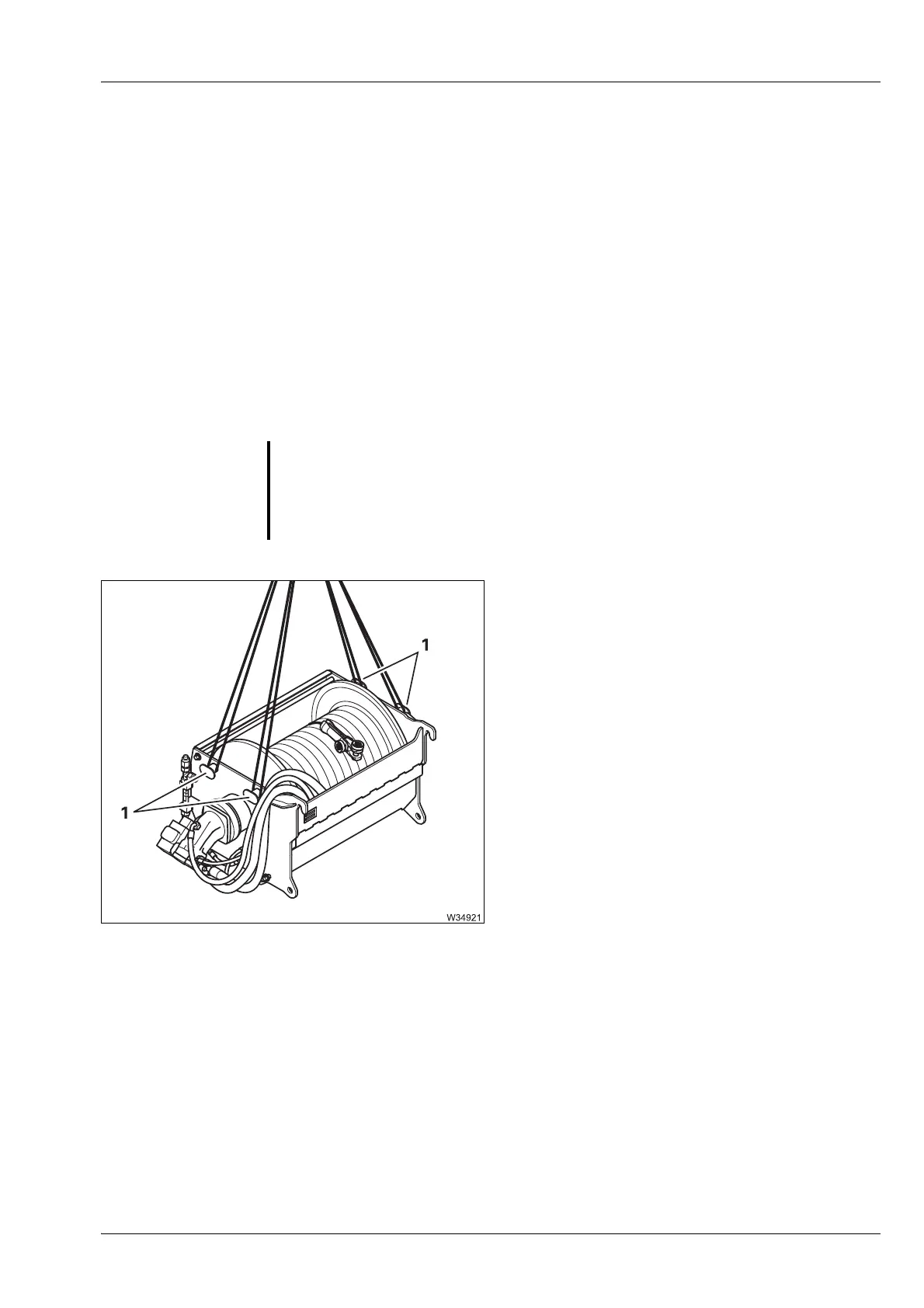

Sling the auxiliary hoist at the slinging
points (1).
Use suitable lifting gear with the same length,
so that the auxiliary hoist hangs at the centre
of gravity.
• If necessary, remove the pins from the
connecting points:
S
Risk of damage to the auxiliary hoist and truck crane
Only sling the auxiliary hoist onto the slinging points provided. Always use
suitable lifting gear with sufficient lifting capacity.
