Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating manual 3 302 709 en 6 - 17
GMK5150L
12.01.2018
6.4 Rigging the main boom
This section applies only to truck crane which are fitted with the pulling
devices for removing/mounting the main boom.
Additional equip-
ment required

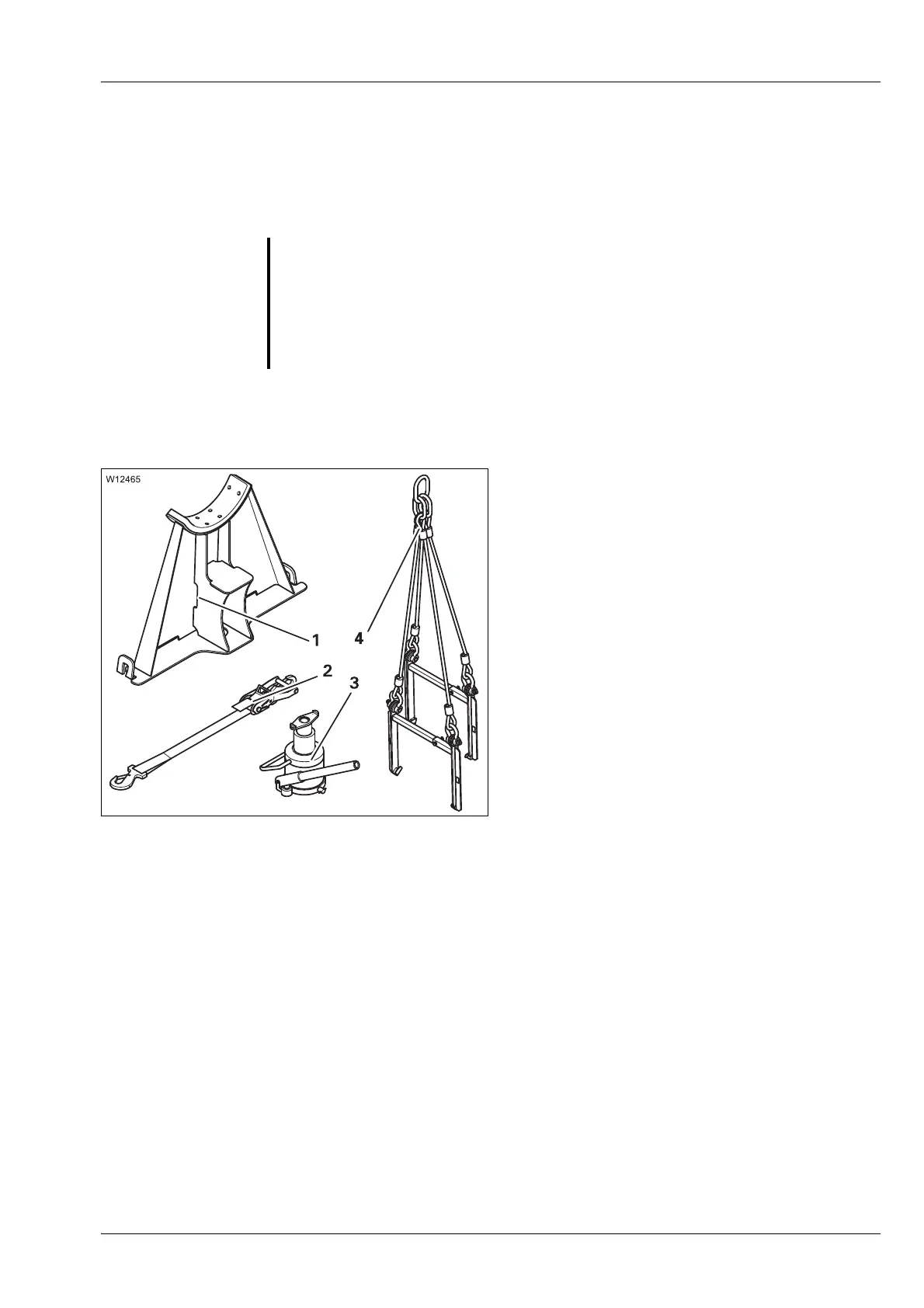

In addition to the pulling devices, you also need the following accessories:
– a derricking cylinder support (1)
– a tightening belt (2)
– a lifting device (3)
– lifting gear (4)
as well as
– an auxiliary crane with sufficient lifting
capacity,
– a separate vehicle with sufficient load
bearing capacity and loading area.
Transport dimensions and weight;
à p. 1 - 10.
G
Risk of accident when removing/installing the main boom without pulling
devices
Only remove or install the main boom if the truck crane is equipped with
the factory-installed pulling devices and with the necessary accessories.
Without these factory-installed pulling devices, the main boom may be
removed by Manitowoc Crane Care only.
