Driving modes and rigging for on-road driving
6.3 Rigging work for driving with a dolly
Operating manual 3 302 709 en 6 - 15
GMK5150L
12.01.2018

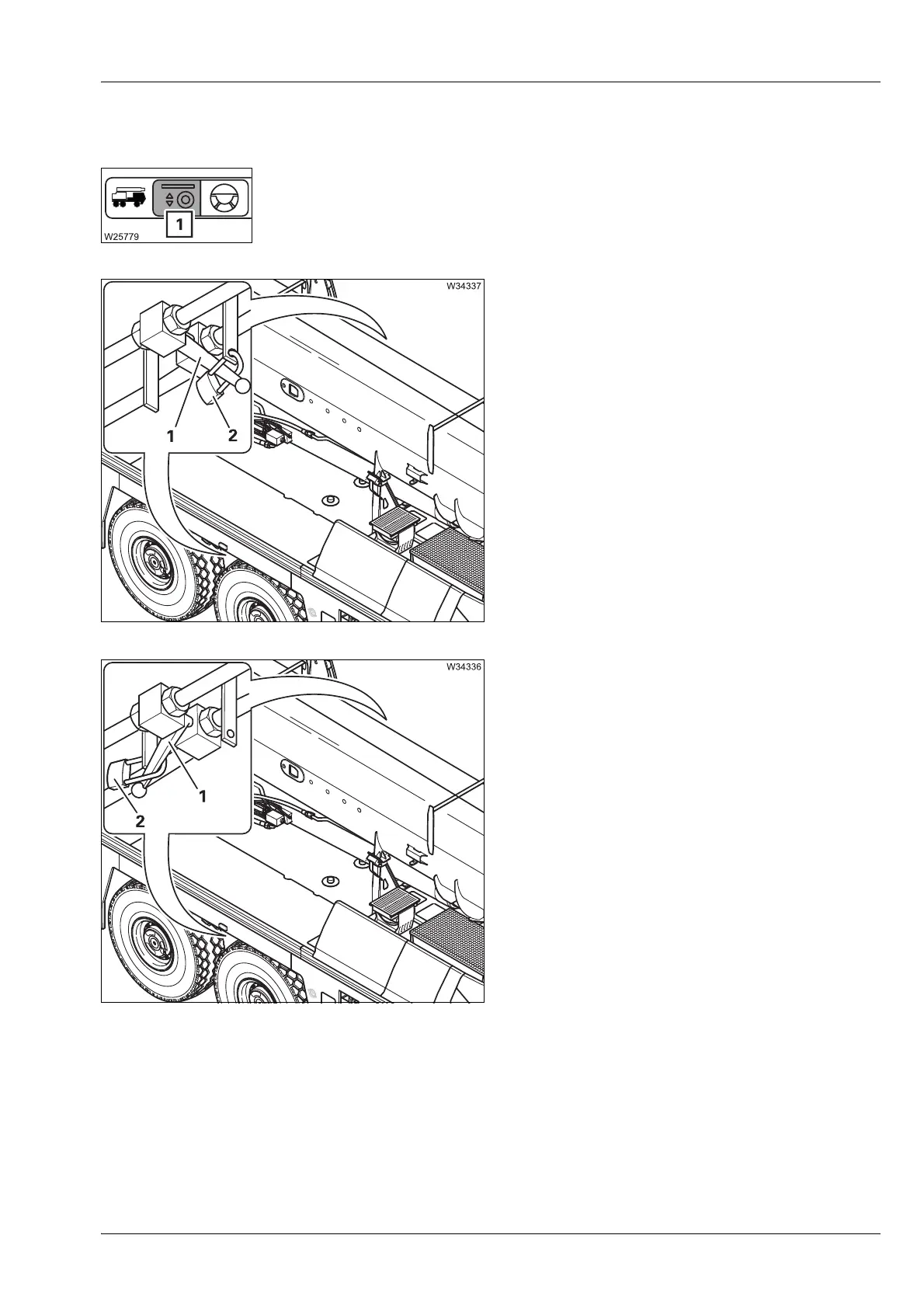

6.3.4 Raising/lowering the 3rd axle line for dolly operation
•
Open the Suspension/level adjustment (1) menu.
Lifting
• Use the level adjustment system to lower
the truck crane to its lowest position;
à p. 5 - 54.
• Remove the padlocks (2).
• Switch over valves I and II – levers (1)
forwards.
• Secure the levers (1) with the padlocks (2).
• Establish the on-road level; à p. 5 - 54.
Lowering
• Use the level adjustment system to lower
the truck crane to its lowest position;
à p. 5 - 54.
• Remove the padlocks (2).
• Switch over valves I and II – levers (1)
backwards.
• Secure the levers (1) with the padlocks (2).
• Establish the on-road level; à p. 5 - 54.
