Driving modes and rigging for on-road driving
6.5 Rigging the auxiliary hoist
Operating manual 3 302 709 en 6 - 43
GMK5150L
12.01.2018
6.5.5 Establishing/disconnecting the hydraulic connections

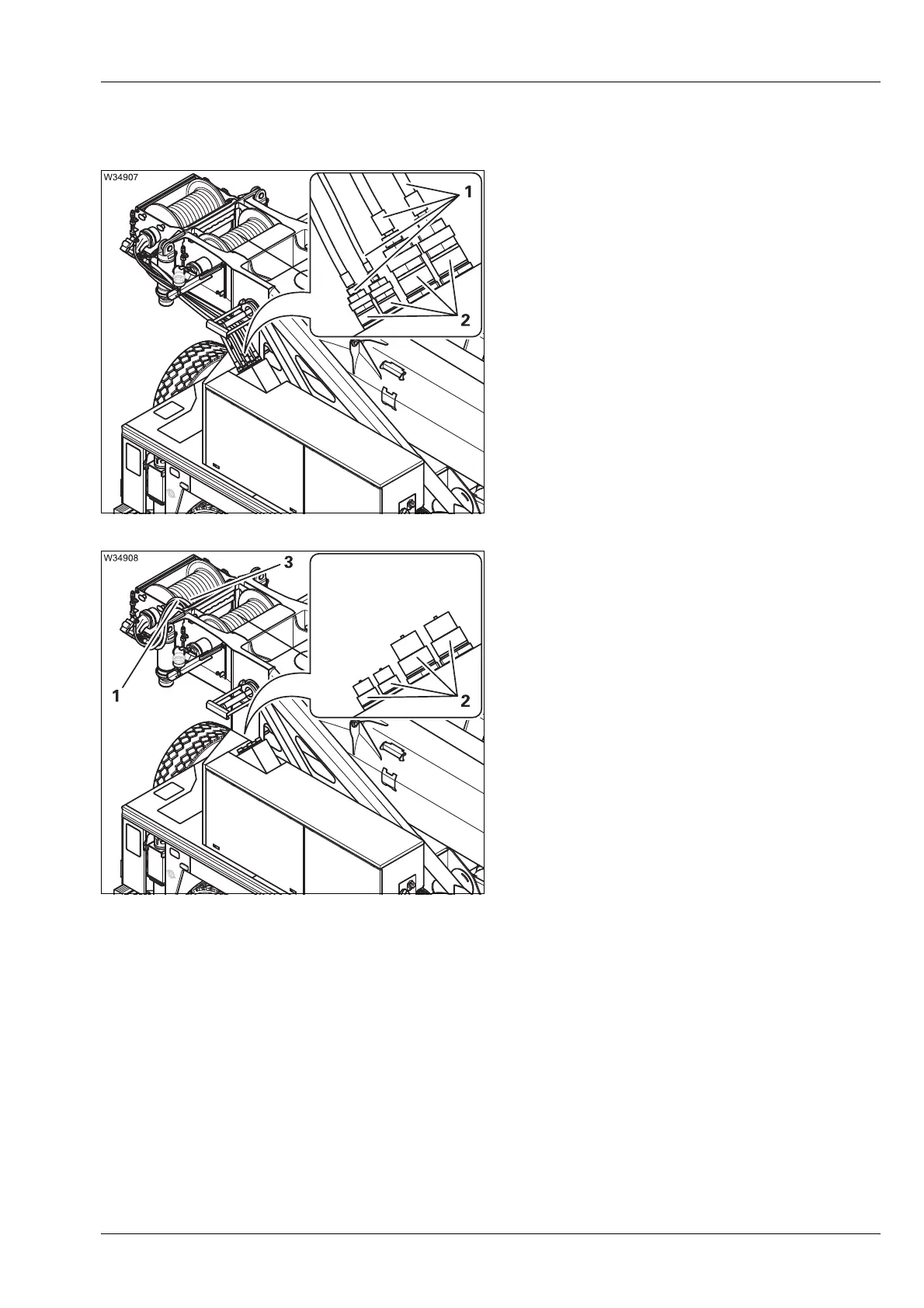

Making the connection
The assignment is given by the size and colour
designations.
• Connect the hoses (1) to the connections (2).
Undoing the connection
• Remove the hoses (1) from the connec-
tions (2).
• Close all hoses and connections.
• Insert the hoses into the hoist frame (3).
