Manitowoc GROVE GMK5150L User Manual

Rigging work
12.8 Outrigger operation
Operating manual 3 302 709 en 12 - 53
GMK5150L
12.01.2018

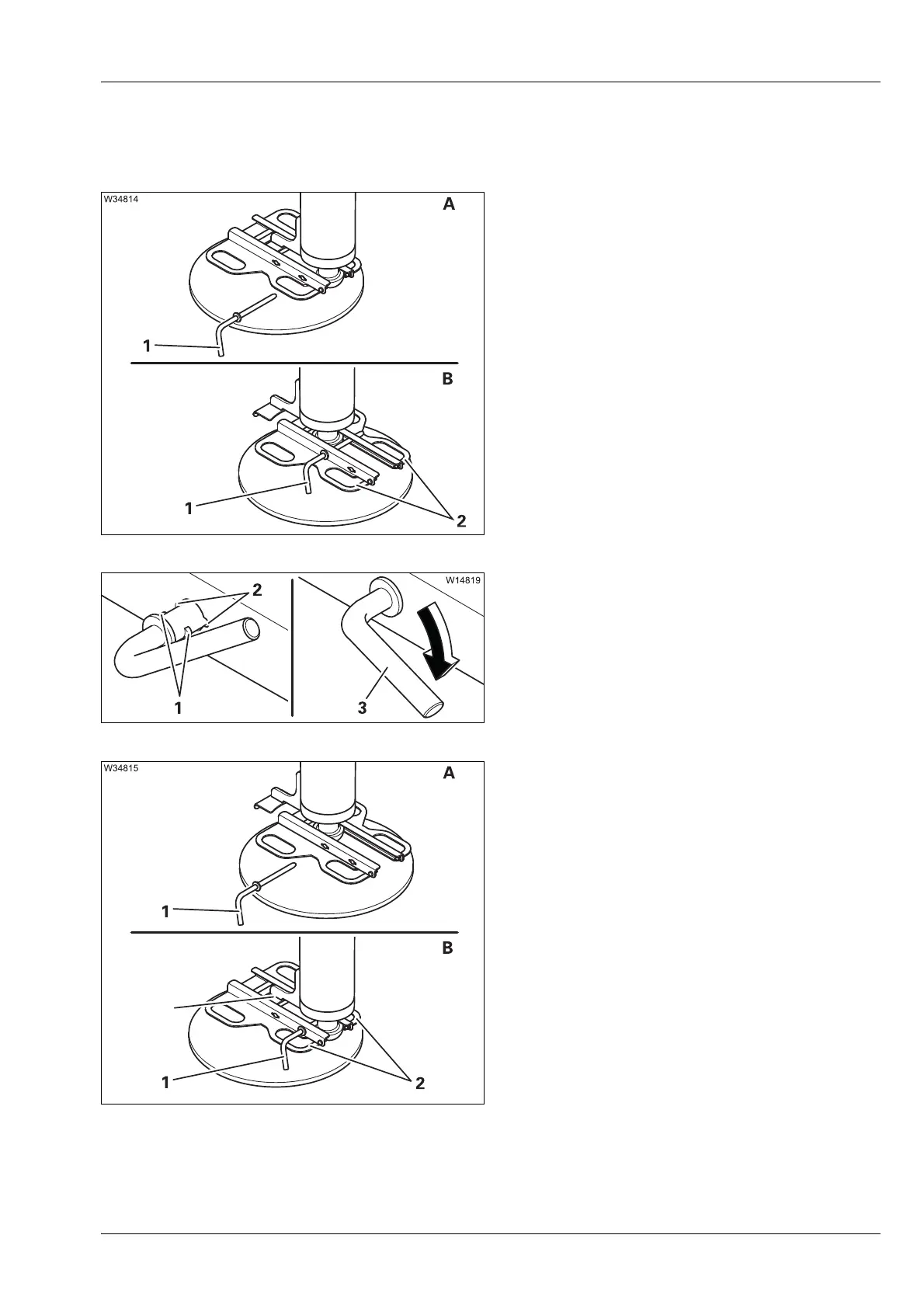

12.8.6 Moving the outrigger pads into operating/driving position
Moving them into working position
• (A) – Pull out the pin (1).
• (B) – Pull the outrigger pad outwards by the
handle (2).
• Secure the outrigger pad with the pin (1).
• Secure the pin (1).
• Move the other outrigger pads into operat-
ing position in the same way.
Securing pin
• Plug the pin with the peg (1) through the
cutout (2).
• Turn the grip (3) downwards.
Moving into driving position
• (A) – Pull out the pin (1).
• (B) – Pull the outrigger pad by the handle (2)
onto the holder (3).
• Secure the outrigger pad with the pin (1).
• Secure the pin (1).
• Move the other outrigger pads into driving
position in the same way.
