Rigging work
12.8 Outrigger operation
12 - 52 3 302 709 en Operating manual
GMK5150L
12.01.2018
Moving the outrigger beams
H
You can only operate the outrigger beams to the left and right of the control
unit on the operator's side.
• Observe the safety instructions for operating the outriggers;
à p. 12 - 49.
• Press the button
• Additionally press the button for the desired
outrigger beam.
The outrigger beams move until you let go of the respective button or until
the respective end position has been reached.
5 For high-speed mode
6 For normal speed.

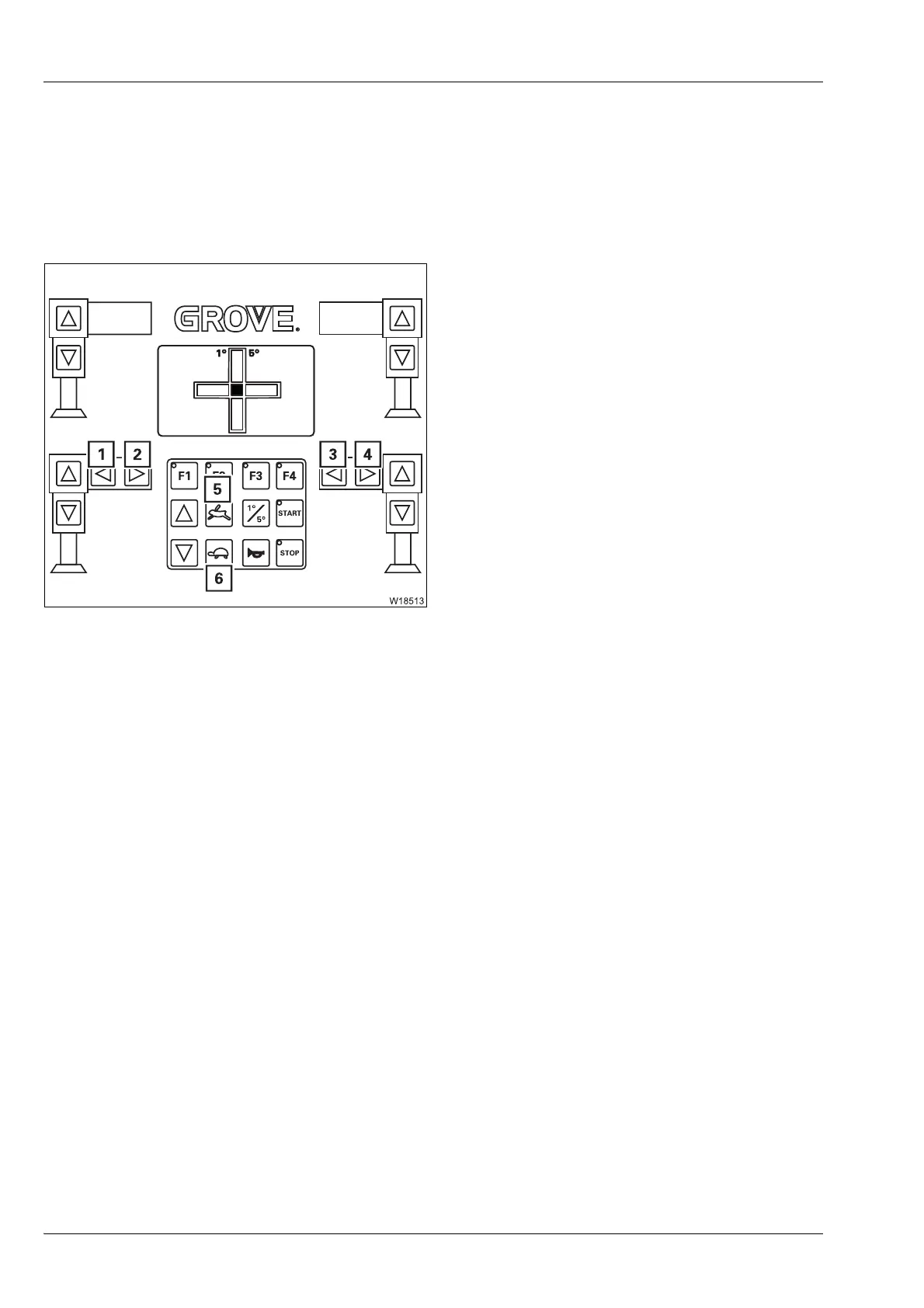

1 Extend left
2 Retract left
3 Retract right
4 Extend right
1 + 4 Extend both
2 + 3 Retract both
