Rigging work
12.11 Other rigging work
12 - 150 3 302 709 en Operating manual
GMK5150L
12.01.2018
12.11.2 Folding the mirrors in and out, and adjusting them
The mirror must be folded in for driving. You must fold the mirror out and
adjust it for crane operation or driving from the superstructure.

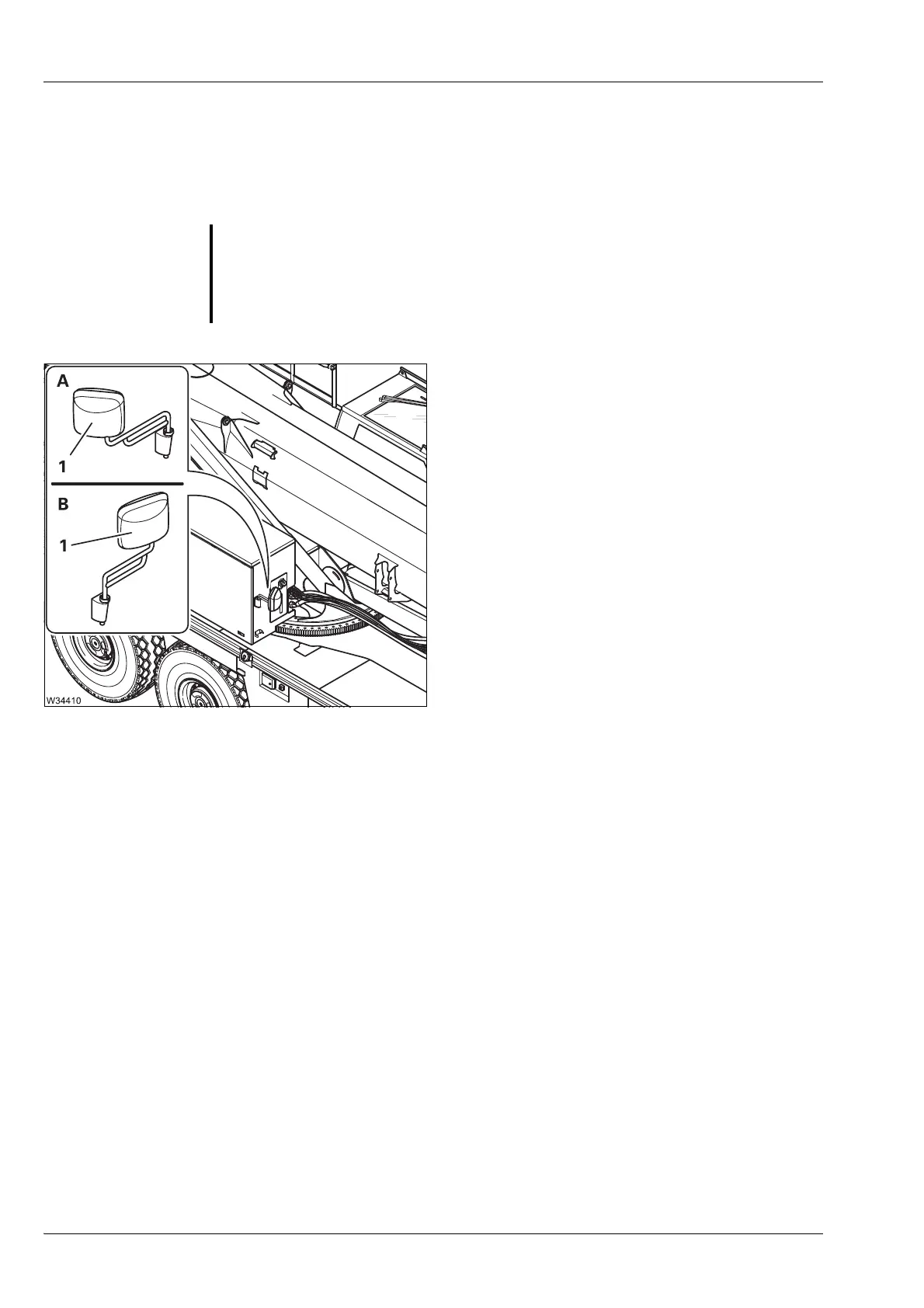

(A) – Folding out and adjusting the mirror
• Fold out the mirror (1).
• Adjust the mirror (1) so that the rear right
outrigger beam can be observed clearly
from the crane cab (when the main boom
is raised).
Folding in the mirror
• Fold in the mirror (1) until it does not
protrude over the side of the carrier.
G
Risk of accidents due to exceeding the permissible dimensions!
Fold the mirror in for driving. The overall width specified for on-road
driving is exceeded if the mirror is folded out.
