Starting the engine for driving / switching it off
4.1 Starting the engine from the driver's cab
Operating manual 3 302 709 en 4 - 9
GMK5150L
12.01.2018

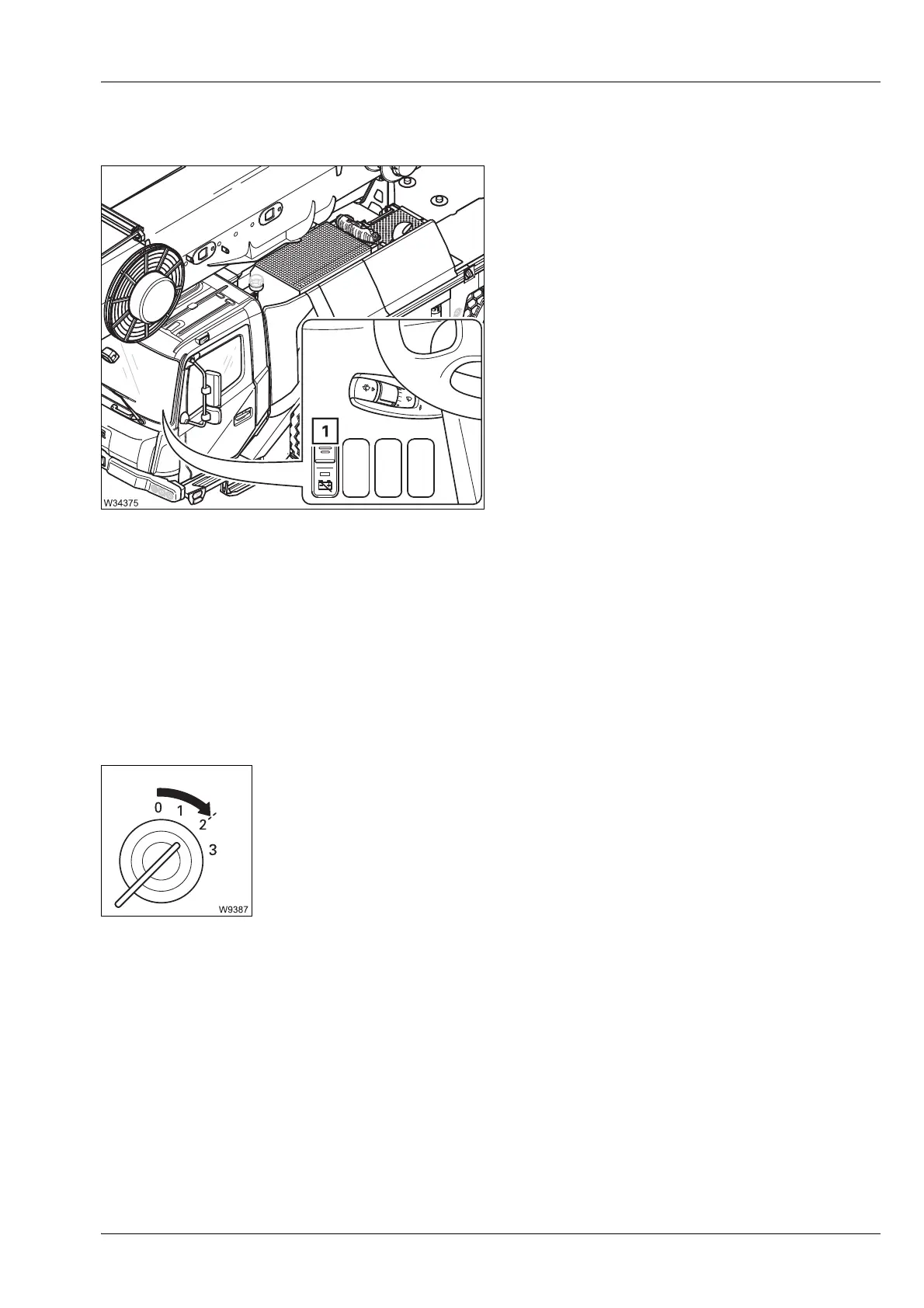

Battery master
switch
You can only start the engine when the battery master switch is switched
on.
• Press switch (1) up – the battery master
switch will be switched on.
Checking the
hand-held control
Check that the hand-held control has been removed, and that the bridging
plugs for the hand-held control are inserted into all sockets;
à p. 9 - 83.
4.1.5 Switch the ignition on
• Insert the ignition key into the ignition lock and turn the key to position 2.
After switching on the ignition, a lamp test is performed and switching
states are aligned.
H
Do not start the engine until the main menu is displayed.
