Manitowoc GROVE GMK5150L

Crane operation
11.7 Working range limiter
Operating manual 3 302 709 en 11 - 147
GMK5150L
12.01.2018
11.7.7 Shutdown by working range limiter
If a limit value is reached, RCL shutdown will occur. All movements that
would go closer to the limit value will be disabled. Shutdown will remain
active even if you switch off the monitoring function.
The
RCL display also shows an information symbol. You must leave the
shutdown area in order to enable the movement.
If you override the RCL, the shutdown will be overridden and all movements
enabled.

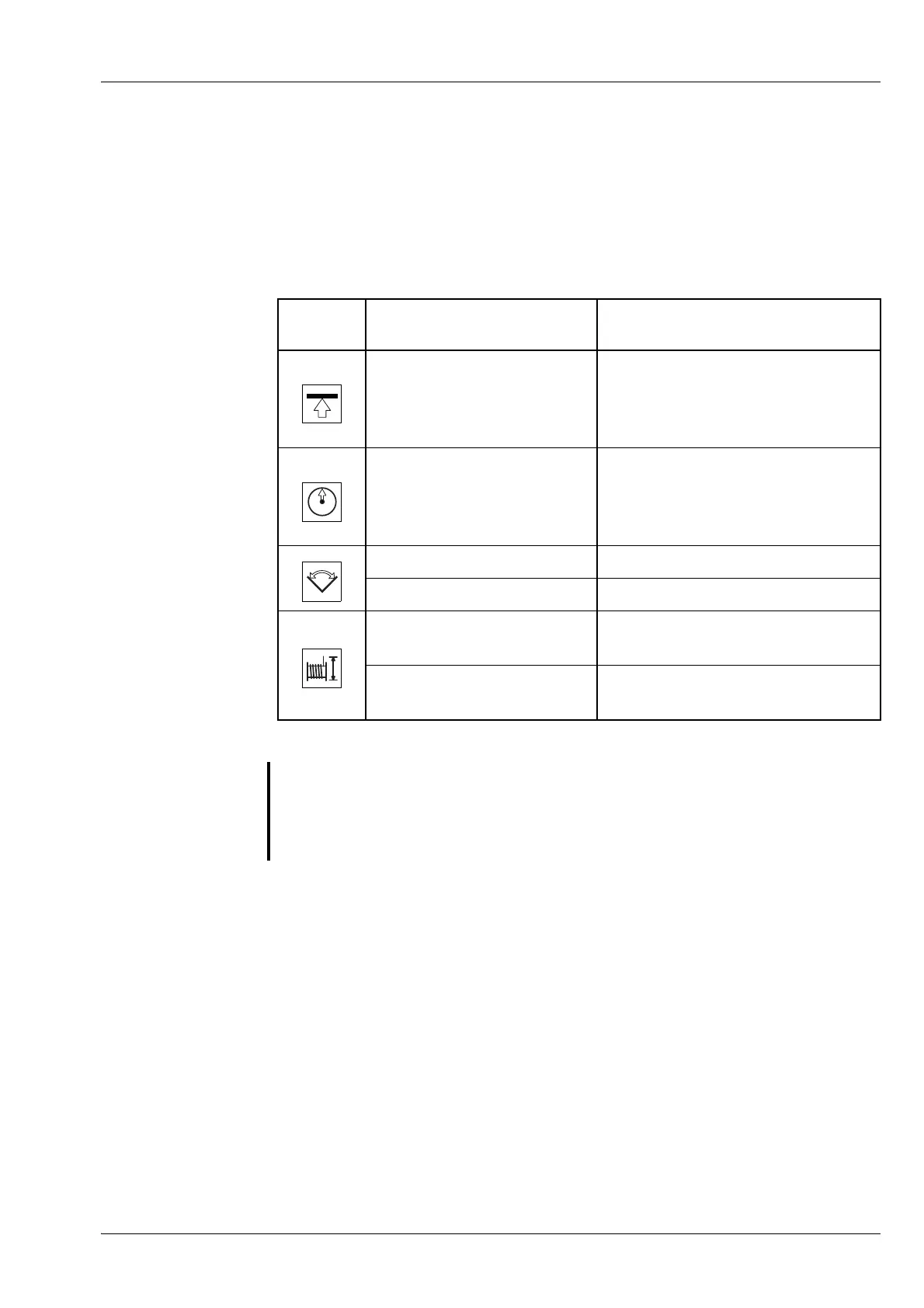

RCL
display
Shutdown point reached
for
Disabled movements
Overall height
–Raising
–Extension
– Lowering the hoist
– Derricking the
lattice extension
Working radius
– Lowering the boom
–Extension
– Lifting the hoist
– Derricking the lattice extension
Slewing angle A – Slewing to the left
Slewing angle B – Slewing to the right
Rope travel limitation
Lifting
– Lifting
Rope travel limitation
Lowering
–Lowering
G
Risk of accidents due to overriding shutdown procedures
Override RCL only if it is absolutely necessary and you have a clear view of
the hazard area. Bear in mind that, due to the boom bending for example,
the overall height is increased if you set down the load.
