11.7 Working range limiter
11 - 146 3 302 709 en Operating manual
GMK5150L
12.01.2018

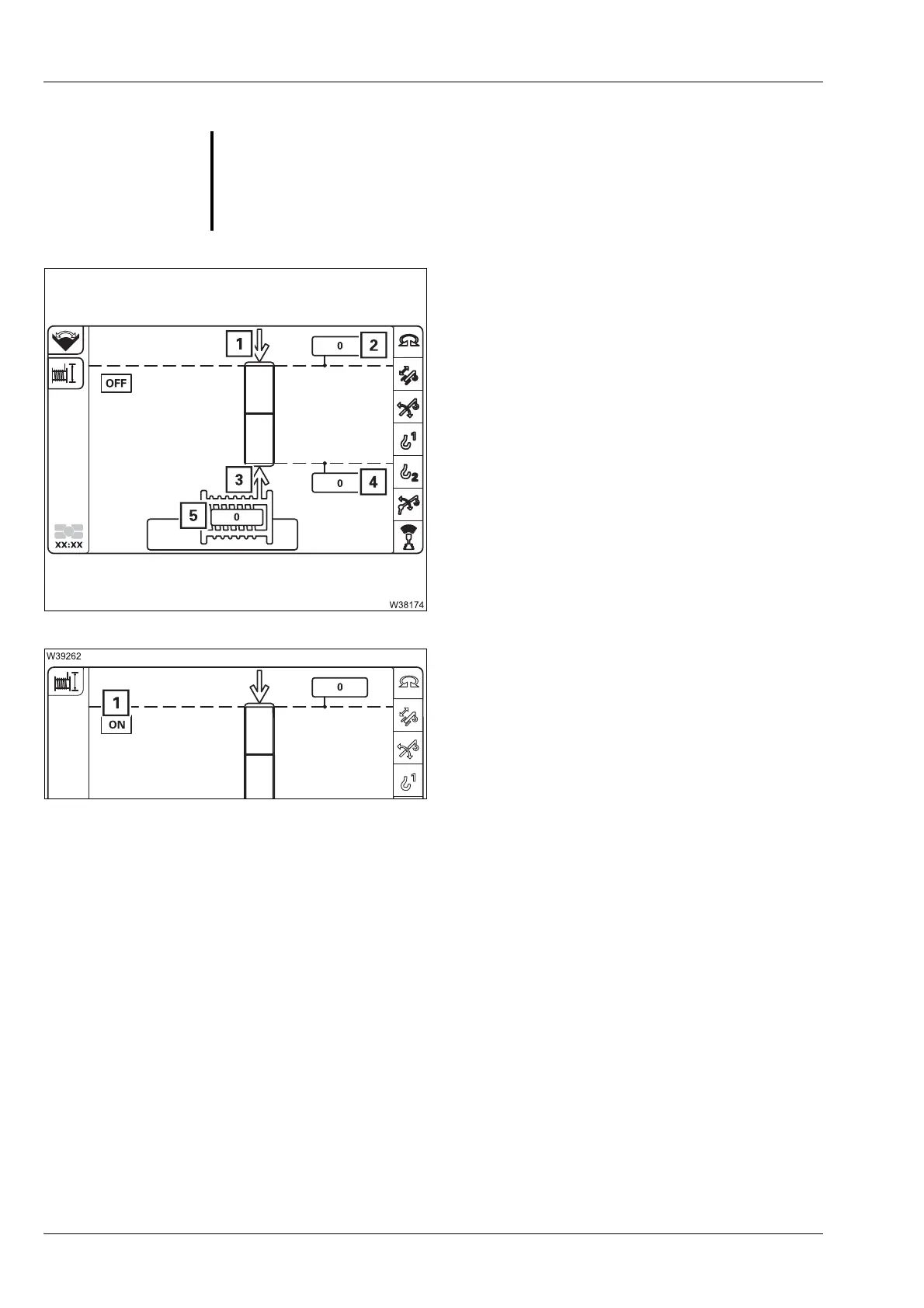

Entering the limit value for Raise
• Lift the load to the necessary height.
• Select and confirm the display (2).
The number value (5) is set as limit value (2)
for
Raise. The symbol (1) confirms the entry.
Entering the limit value for
Lower
• Lower the load to the necessary height.
• Select and confirm the symbol (4).
The number value (5) is set as limit value (4)
for
Lower. The symbol (3) confirms the entry.
Switch on monitoring
• Select and confirm the symbol (1).
The
Hoist rope travel monitoring is
switched on.
H
The movement towards the shutdown limit is continually reduced until
reaching a standstill. The current limitation is displayed;
à On the RCL dislay, p. 11 - 136,
à On the CCSdisplay, p. 11 - 53.
G
Risk of accidents due to the hoist rope travel limitation being switched off!
Always set the telescope status and the boom position for crane operation
first before setting limit values.
In this way you prevent an interruption of crane operation due to shutdown.
