12.11 Other rigging work
12.11.1 Railings on the turntable
The turntable is equipped with fixed handrails or extendable/retractable
handrails, depending on the version.
Always fold out the railings when you are working above on the turntable.
Always fold in the railings before driving.
Folding out

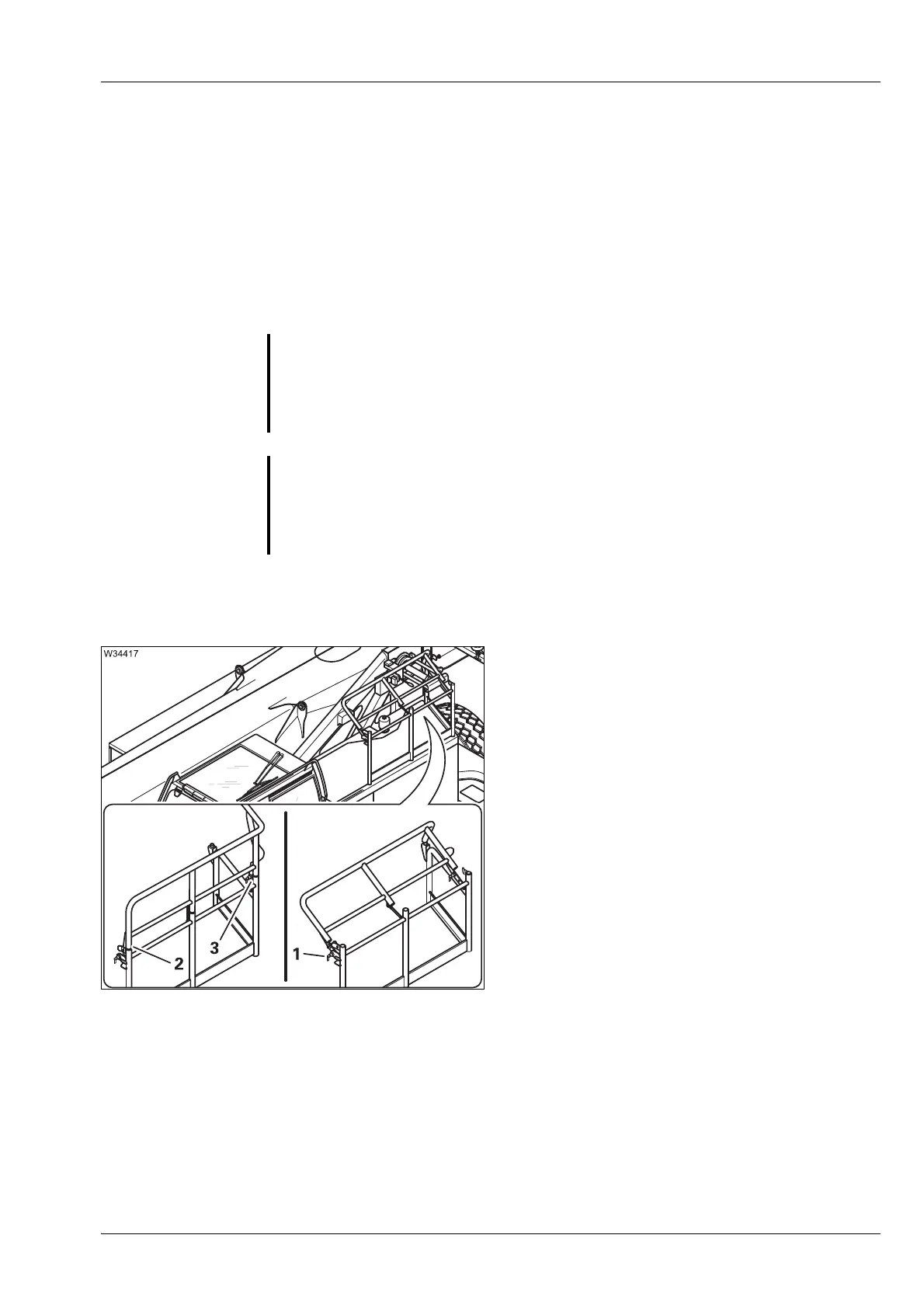

• Release the bolt (1). Fold the railings out
until the latches (2) and (3) engage.
Folding in
• Release the bolt (3).
• Pull the locking bar (2) and fold in the railing
until the locking bar (1) engages.
G
Risk of accidents if railings are not pushed out!
The railings provide protection from falling. Always fold out the railings
before stepping on to the turntable.
G
Risk of accidents due to exceeding the permissible dimensions!
Fold in the railings before driving. When the railings are unfolded,
the overall height specified for on-road driving is exceeded.
