Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 709 en 12 - 111
GMK5150L
12.01.2018
12.9.10 Setting down counterweight for driving
Which parts of the counterweight sections can be transported on the turn-
table and counterweight platform when driving the truck crane depends on
the driving mode of the truck crane;
à Driving modes, p. 6 - 1.
With all versions, the 1 t compensation weight or the auxiliary hoist is
mounted on the turntable.
Versions 1 and 3
For driving with axle loads up to 12 t

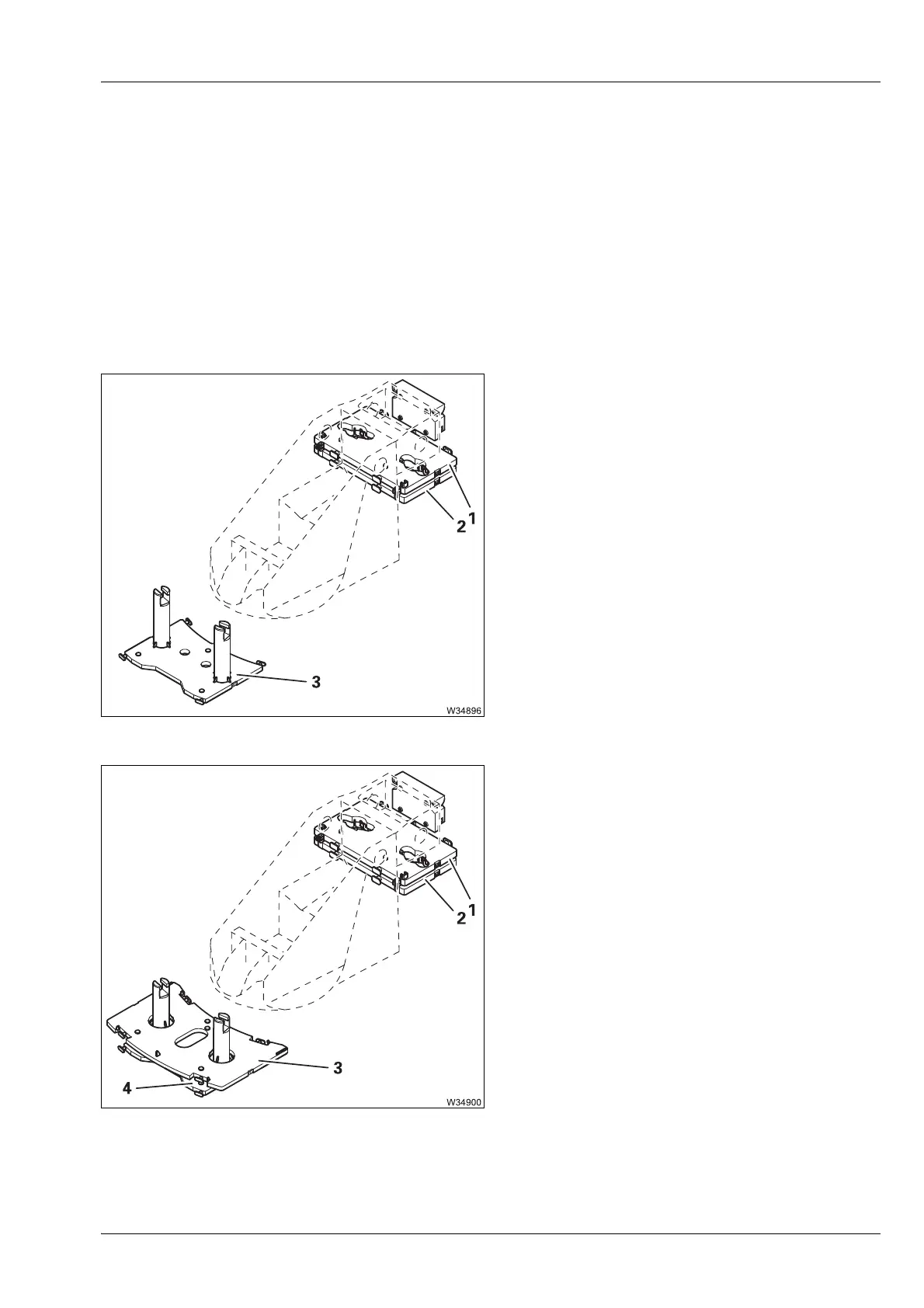

– The 2.3 t plates (1) and (2) are mounted on
the turntable,
– The 2.3 t base plate (3) is on the counter-
weight platform,
or, for the respective driving mode
– The 2.3 t plates (1) and (2) are mounted on
the turntable,
– The 2.3 t base plate (4) and the 2.3 t plate (3)
lie on the counterweight platform.
