Rigging work
12.9 Rigging/unrigging the counterweight
12 - 110 3 302 709 en Operating manual
GMK5150L
12.01.2018
Installing
Version 1 and 3
• Use automatic mode to lift the counter-
weight combination onto the turntable;
à Automatic mode rigging, p. 12 - 105.

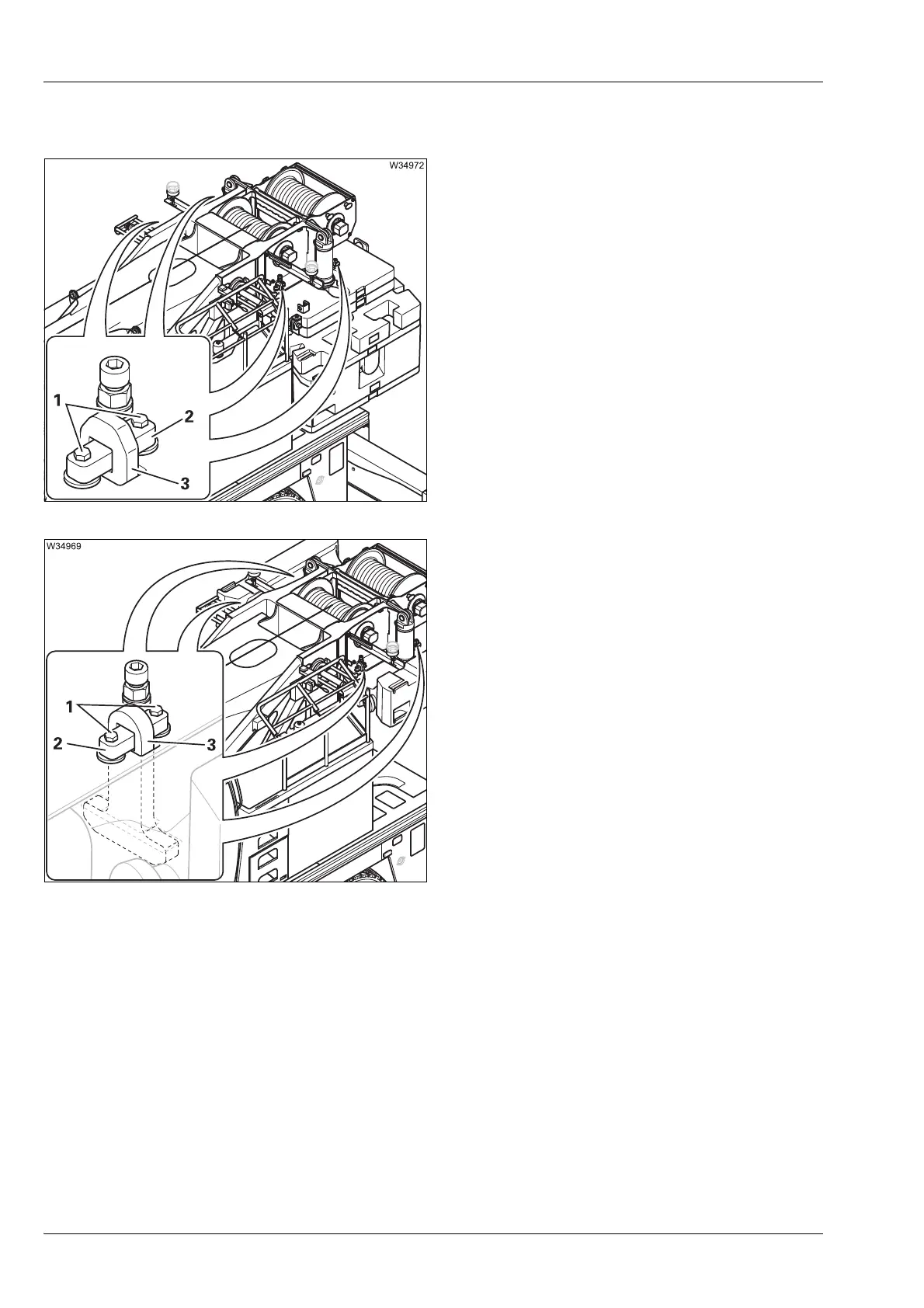

• Push the clamp (2) through the bracket (3).
• Fasten the clamp (2) using the bolts (1) –
tightening torque 75 Nm (55.3 lbf ft).
If no further work is to be performed using
the truck crane:
• Use automatic mode to lower the counter-
weight combination onto the turntable.
Version 2
• Use suitable auxiliary equipment (e.g. fork-
lift) to lift the 9.2 t plate onto the turntable
until the connecting points line up.
• Insert the bracket (3) through the counter-
weight section from below.
• Push the clamp (2) through the bracket (3).
Fasten the clamp (2) using the bolts (1) –
tightening torque 75 Nm (55.3 lbf ft).
