Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating manual 3 302 709 en 6 - 21
GMK5150L
12.01.2018
6.4.2 CHECKLIST: Mounting the main boom
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there!
Prerequisites The truck crane is supported with at least an outrigger span
of 8.030 x 2.50 m (26.3 x 8.2 ft).
Or the parking brake is applied, the truck crane has been aligned horizon-
tally with the level adjustment system and the suspension is locked.

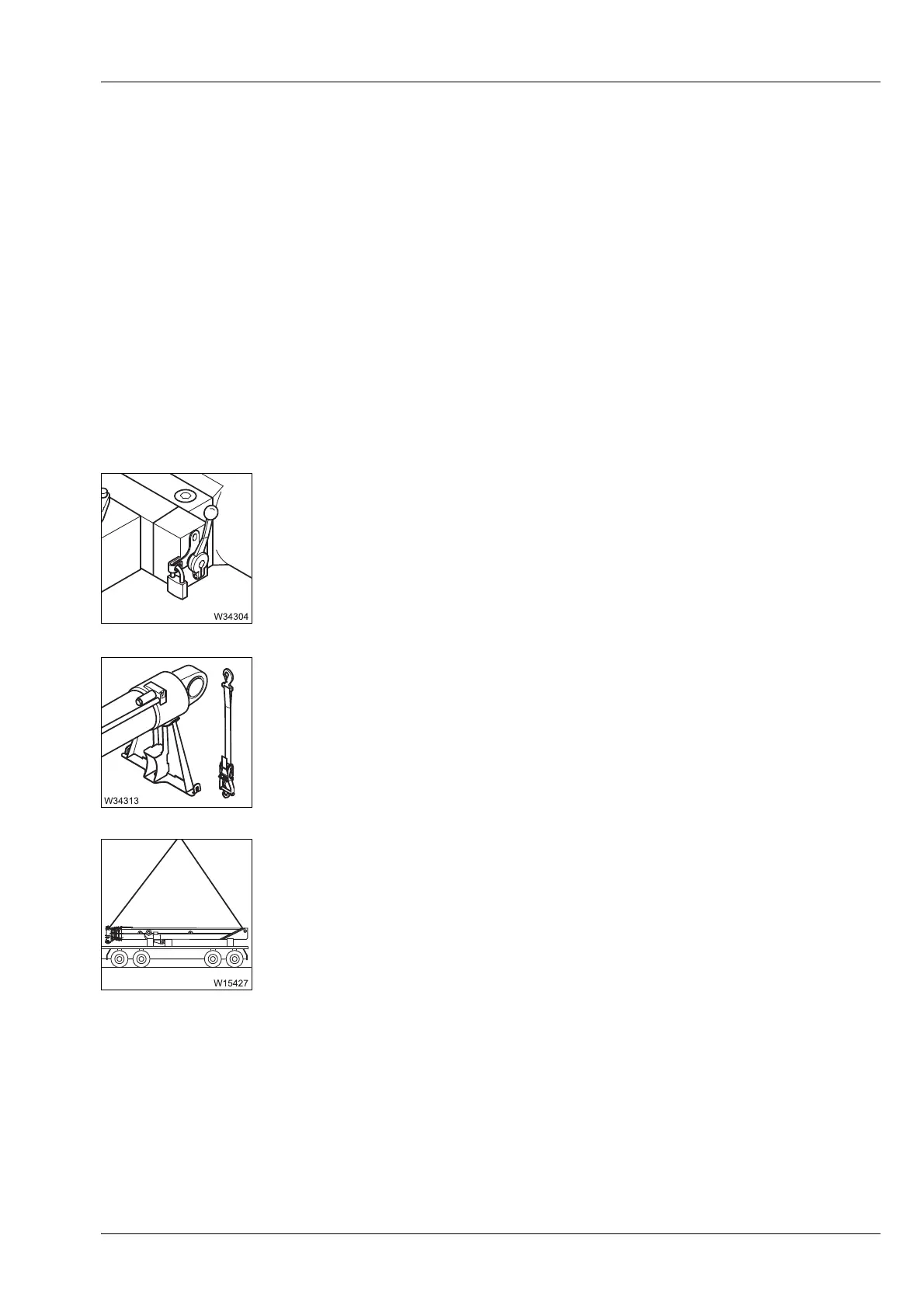

Checklist
1. Check whether the pressure relief for the derricking cylinder is switched
on;
à p. 6 - 29.
2. Remove the tightening belt from the derricking cylinder;
à p. 6 - 35.
3. Sling the main boom to an auxiliary crane;
à p. 6 - 26.
