Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 22 3 302 709 en Operating manual
GMK5150L
12.01.2018

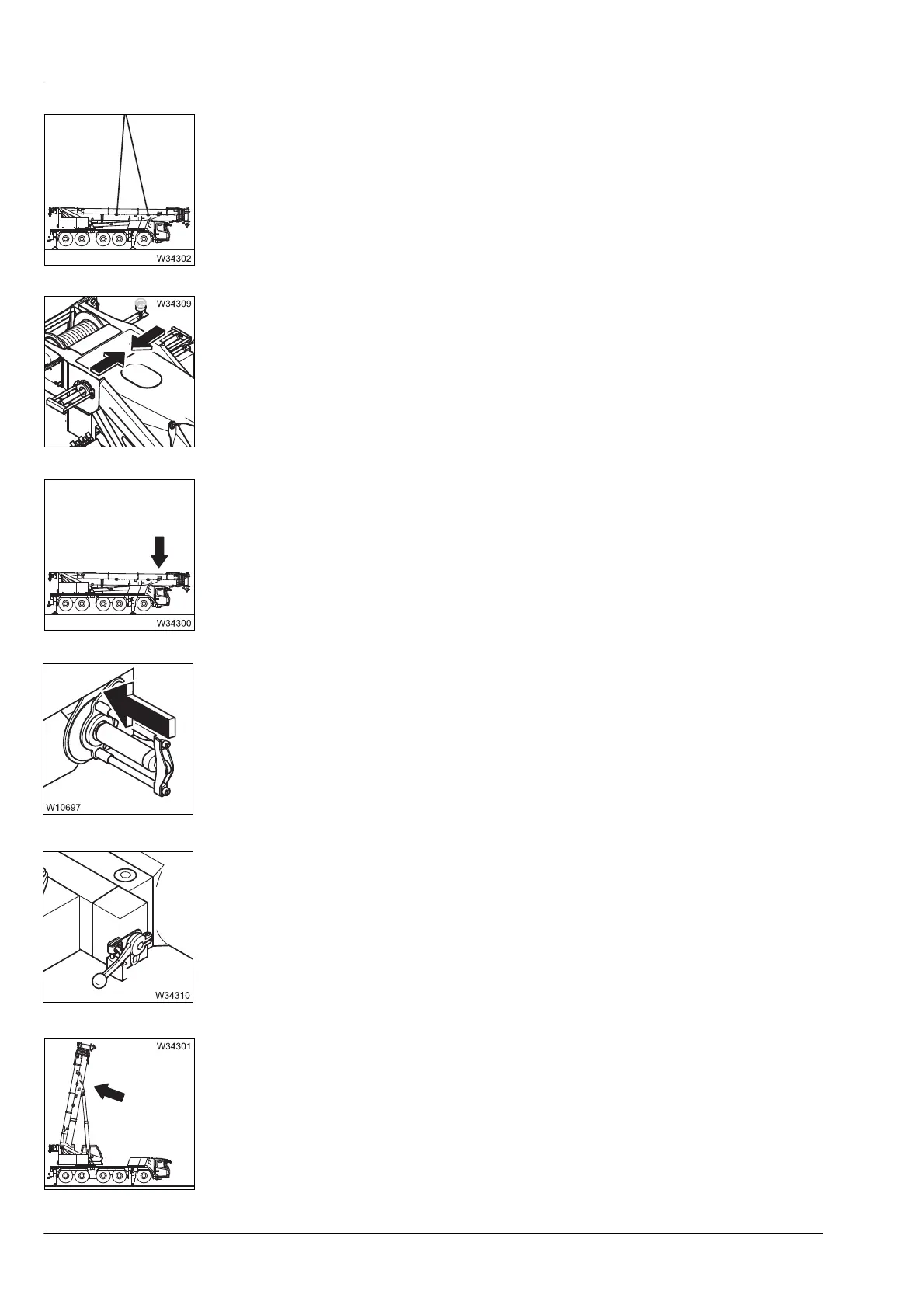

4. Lift the main boom into the turntable and align the connecting points;
à p. 6 - 36.
5. On the boom pivot pin
– Push in the pivot pin
– secure the pivot pin;
– Switch the hydraulic circuit over
à p. 6 - 32.
6. Set down the main boom in the boom rest with the auxiliary crane and
remove the lifting gear.
7. On the derricking cylinder head axle
– Level the derricking cylinder,
– Fit the head pin
– Secure the head pin;
à p. 6 - 30.
8. Switch off the derricking cylinder pressure relief;
à p. 6 - 29.
9. Raise the main boom.
