Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating manual 3 302 709 en 6 - 37
GMK5150L
12.01.2018
6.4.12 Inspections after main boom mounting
•
Check to see if the pressure relief is switched off and is secured with the
lock;
à p. 6 - 29.
• Switch on the ignition.

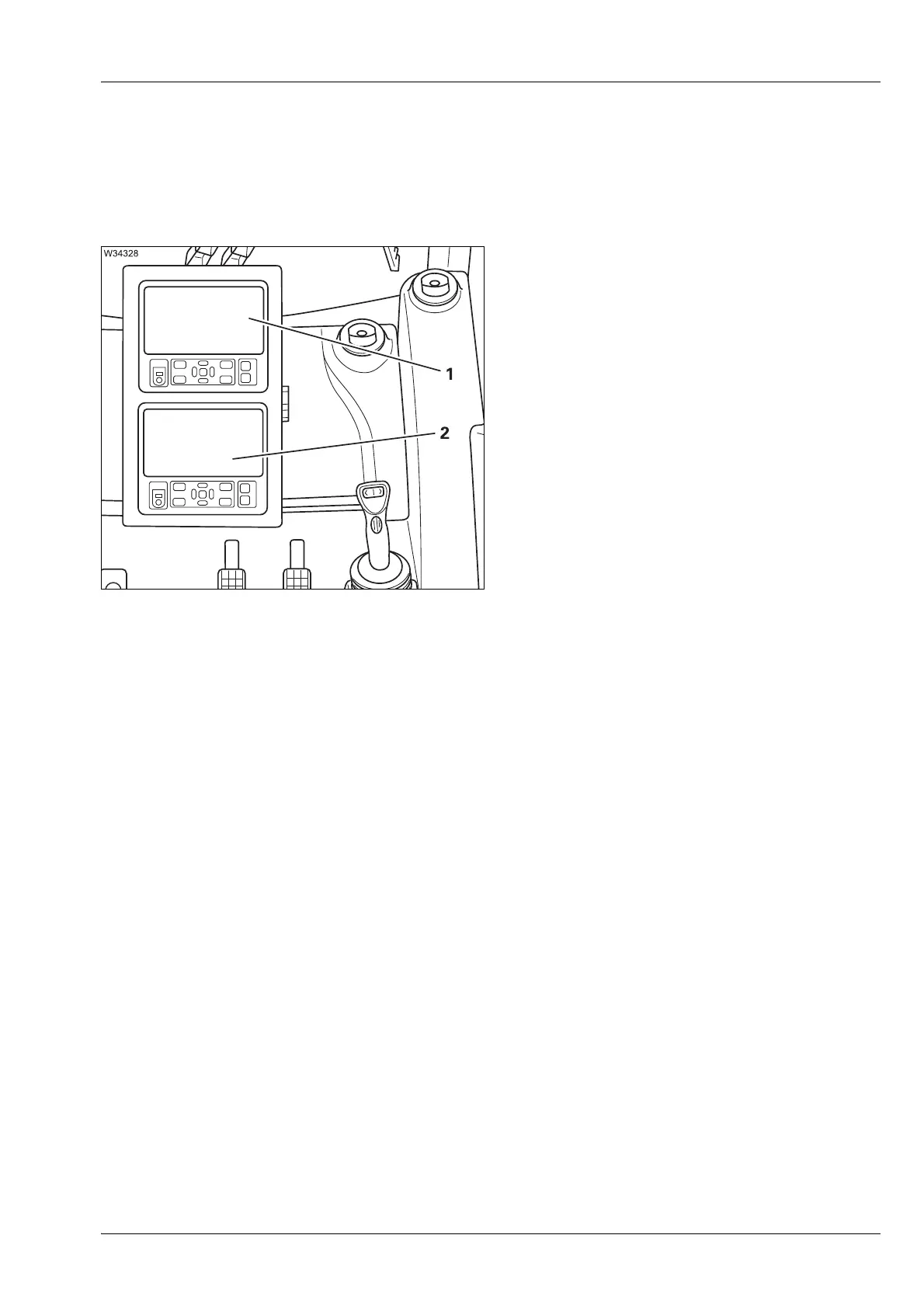

• Check if the RCL (1) or CCS (2) control unit
shows an error message.
• If an error message is displayed, check that
all electrical connections are established;
à p. 6 - 24.
The following requirements must be met for the subsequent inspection:
– The truck crane is on outriggers.
– The main boom is resting in the boom rest.
– The current rigging mode must have been entered and confirmed on the
RCL display.
• Telescope the telescopic section about 1 m out and back in.
• Retract the telescoping cylinder into another telescopic section and
mechanically lock it there.
• Check to see if the hydraulic connections in the turntable are sealed.
H
Before operating for the first time, carry out the movement Incline lattice
extension
with the hydraulically derricking lattice extension and check if the
corresponding connections in the turntable are sealed.
Installing/removing the hose drum requires using an auxiliary crane
with sufficient load-bearing capacity. The weight of the hose drum is
about 170 kg (375 lbs).
