Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 709 en 11 - 53
GMK5150L
12.01.2018
On the CCSdisplay After confirming a permissible rigging mode, the Start menu opens
automatically.
Slewing range type
Standard
If the MAXbase slewing range type has been entered; Ã p. 11 - 55.
The RCL display differs according to the confirmed slewing range.

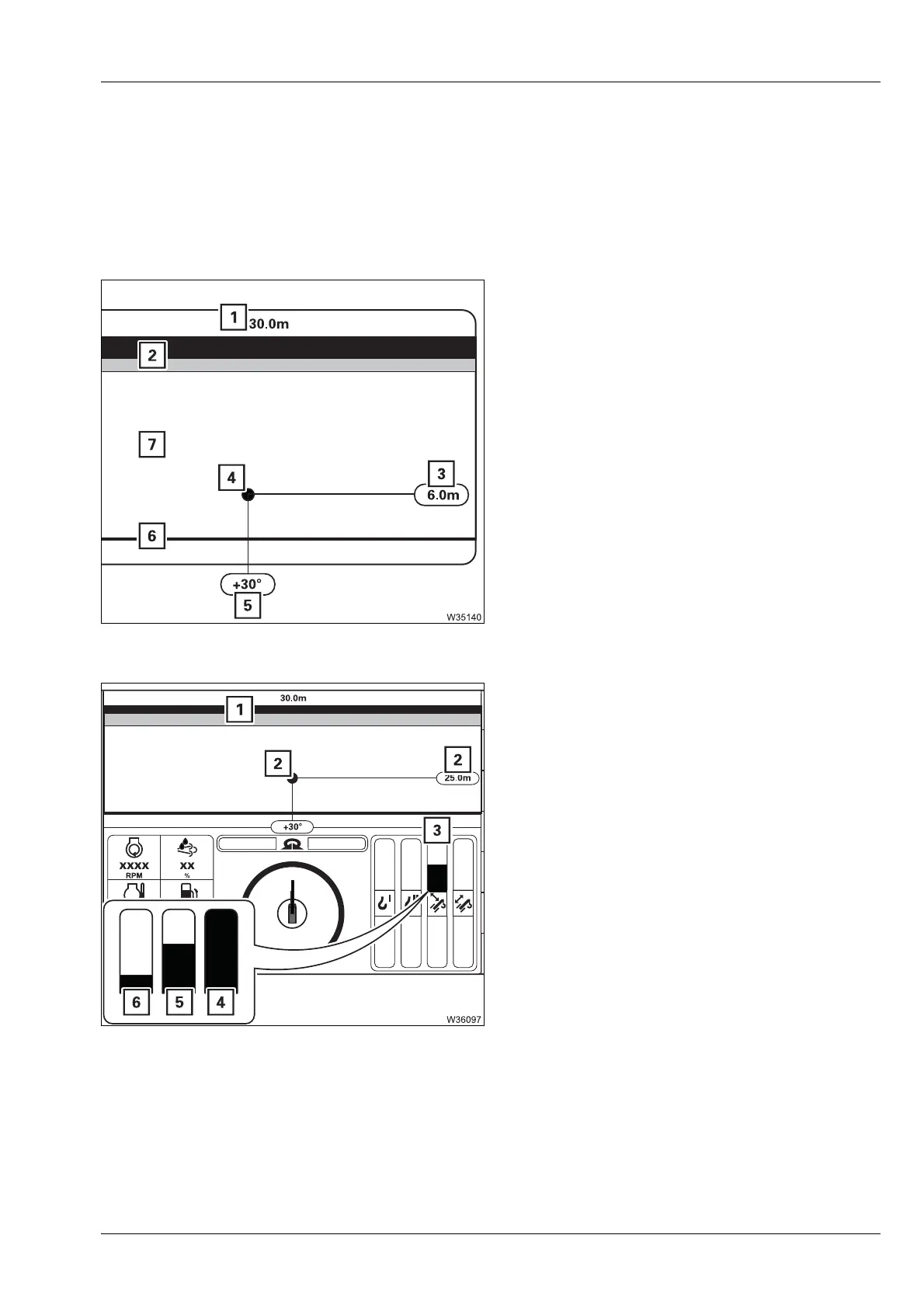

360° slewing range
The diagram (7) covers the entire width.
The height of the diagram corresponds to
the maximum permissible working radius (1),
for example, 30 m (100 ft).
The current position of the boom head is
shown using the symbol (4) and defined by
two displays.
The shutdown range for the maximum
working radius (2) is shown in colour and –
if active – the shutdown range for the
minimum working radius (6) is displayed.
– When telescoping or derricking
The displays (2) move up and down to show
the current working radius, e.g. 25 m (20 ft).
In a shutdown range (1) the movement
towards the shutdown limit is continually
reduced until reaching a standstill.
The corresponding display (3) shows the
current speed reduction, e.g. for lowering
the boom.
s
3 Current working radius, e.g. 6 m (20 ft)
5 Current slewing angle, for example +30°
4 Green: 26% to 100%
5Yellow: 11% to 25%
6Red: 0% to 10%
