Crane operation
11.4 Operation of the rated capacity limiter
11 - 52 3 302 709 en Operating manual
GMK5150L
12.01.2018
Telescoping cylinder position display

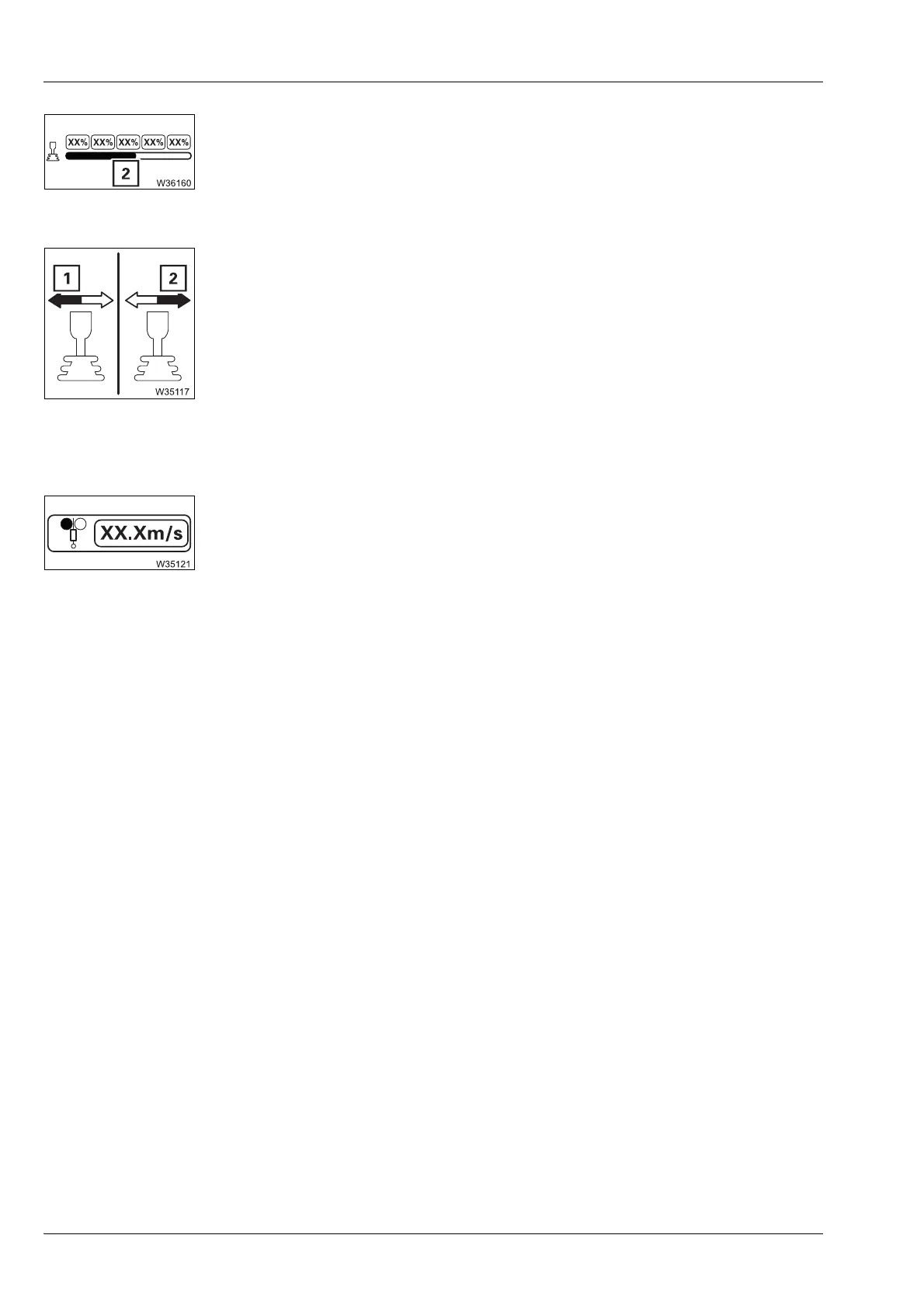

The bar (2) shows the telescoping length of the telescoping cylinder – the
total bar length corresponds to 100%.
Telescoping direction display
The display is only active when telescoping with teleautomation and shows
the direction in which you must move the control lever for each respective
telescoping direction.
Current wind speed display
Shows the current wind speed in metres per second (m/sec) or miles per
hour (mph). The display flashes in colour in the vicinity of the maximum
permissible value (v
max
).
1 Start with
Retract
2 Start with Extend
à Telescoping with semi-automaton, p. 11 - 110
Yellow: approx. 90 – 100% of v
max
reached
Red: v
max
exceeded
