Manitowoc GROVE GMK5150L

Operating elements for driving
3.2 Short description of the operating elements
3 - 62 3 302 709 en Operating manual
GMK5150L
12.01.2018

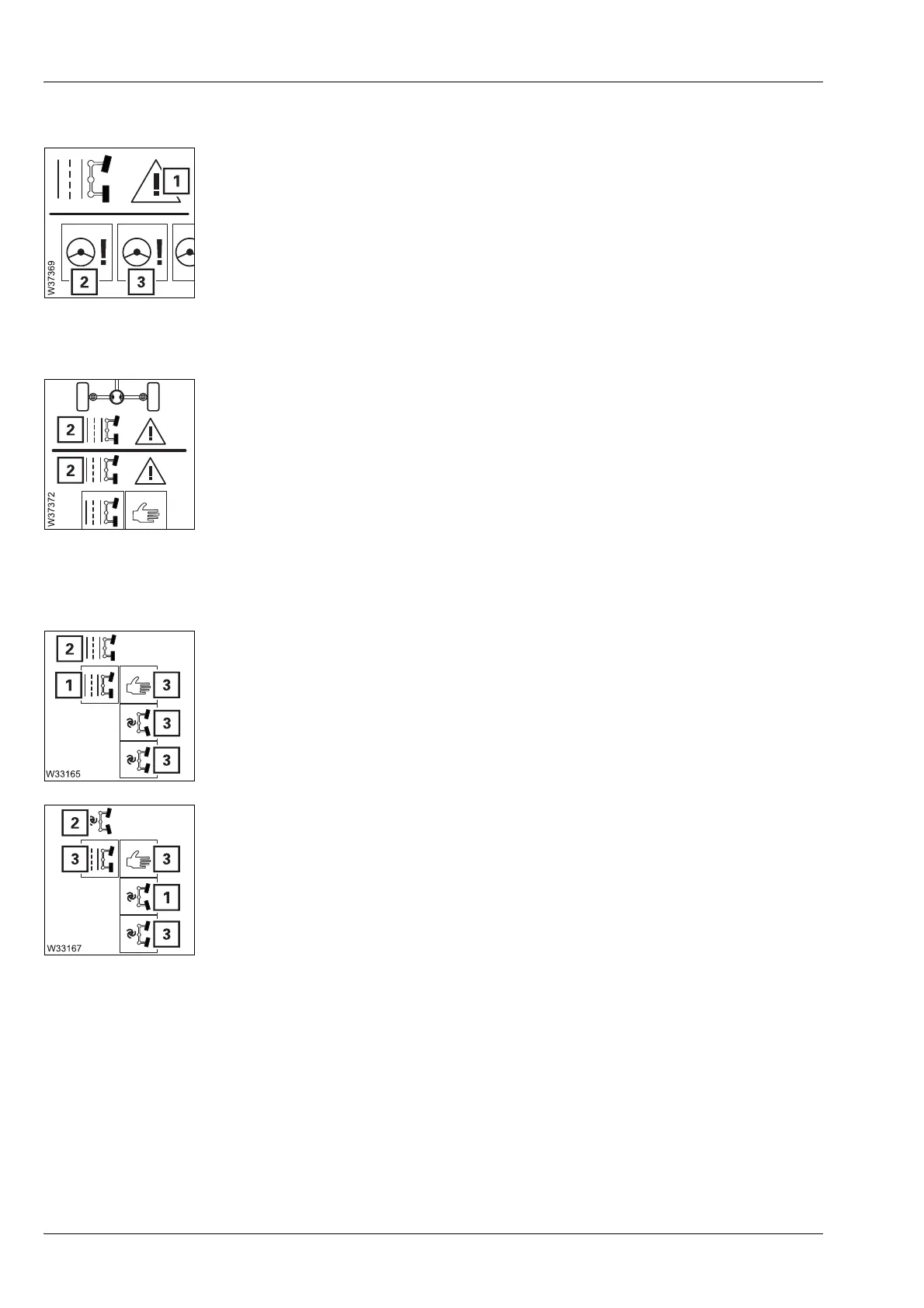

CCS display
Steering system malfunction/warning
The display (1) is shown in the
Driving menu and in the Start menu.
Steering mode display
The display (2) is shown in the
Start menu and in the Driving menu.
The following applies to all steering modes:
The selected symbol must be confirmed within 2 seconds, otherwise the
steering mode remains unchanged.
Normal steering mode, on-road driving, on/off
Separate steering for driving around corners on/off
1 – Yellow: Steering system malfunction – lamp (3) lit
–Red: Steering system warning – lamp (2) lit
– No symbol: No malfunction/warning
à p. 8 - 7
2 – Orange: Steering mode switched on indicator
–Blue: Automatic alignment of the steering angle is active
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – symbol (3)
à p. 5 - 60
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – symbol (3)
à p. 5 - 60
