Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 709 en 3 - 69
GMK5150L
12.01.2018

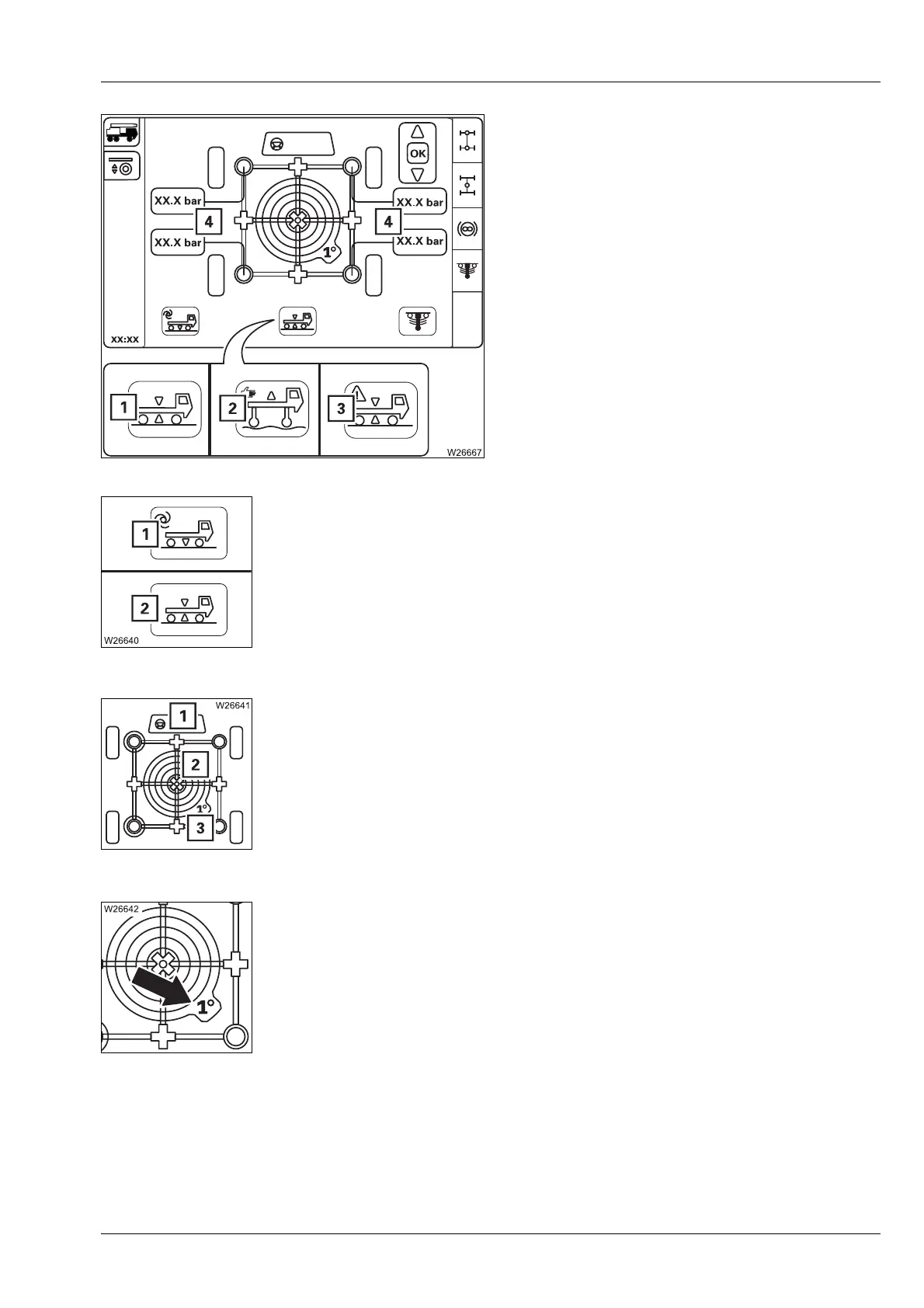

Vehicle level display
The current status is shown using different
symbols.
Setting the on-road level
The suspension is switched on.
Display of current inclination
Switching between measuring ranges
1 On-road level
2 Off-road level
3 Error
4 Operation pressure in the suspension
struts
à p. 5 - 53
1 Select and confirm – level is changed until the on-road level is
reached.
2 On-road driving level reached
à p. 5 - 54
1 Directional indicator
2 Inclination indicator
3 Measuring range display
à p. 5 - 56
The current measuring range 1° or 5° is displayed – changeover automatic
à p. 5 - 56
