Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 9 - 15
GMK5150L
Version 2 In version 2, the right control lever is configured with the Telescope function.

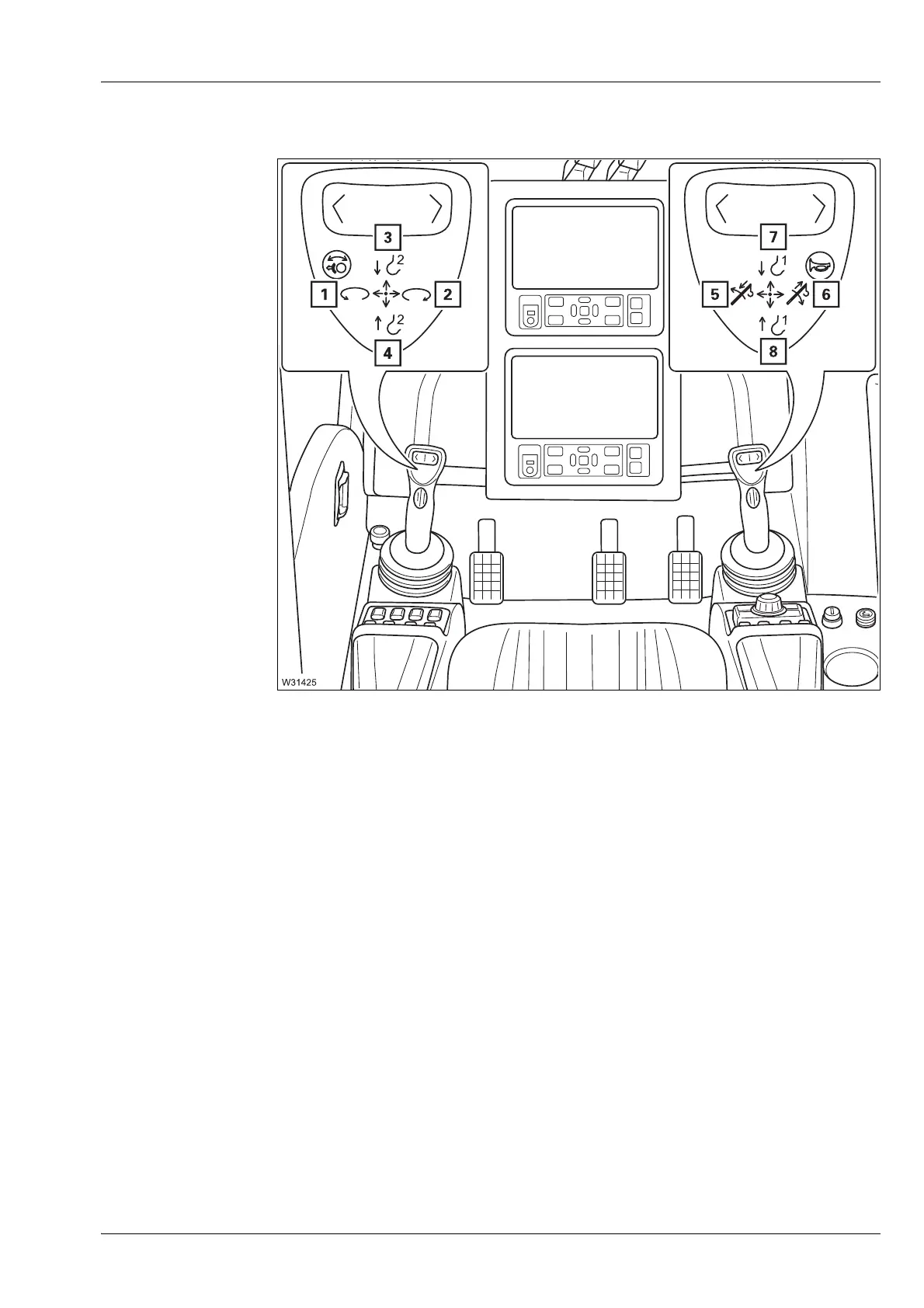

Left control lever Right control lever
1 Slewing to the left 5 Raise/retract
2)
2 Slewing to the right 6 Lower/extend
2)
3 Lower auxiliary hoist
1)
7 Lower the main hoist
4 Raise auxiliary hoist
1)
8 Lift the main hoist
1)
Additional equipment
2)
Derricking the lattice extension; à Lattice extension operating manual
