Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 9 - 13
GMK5150L

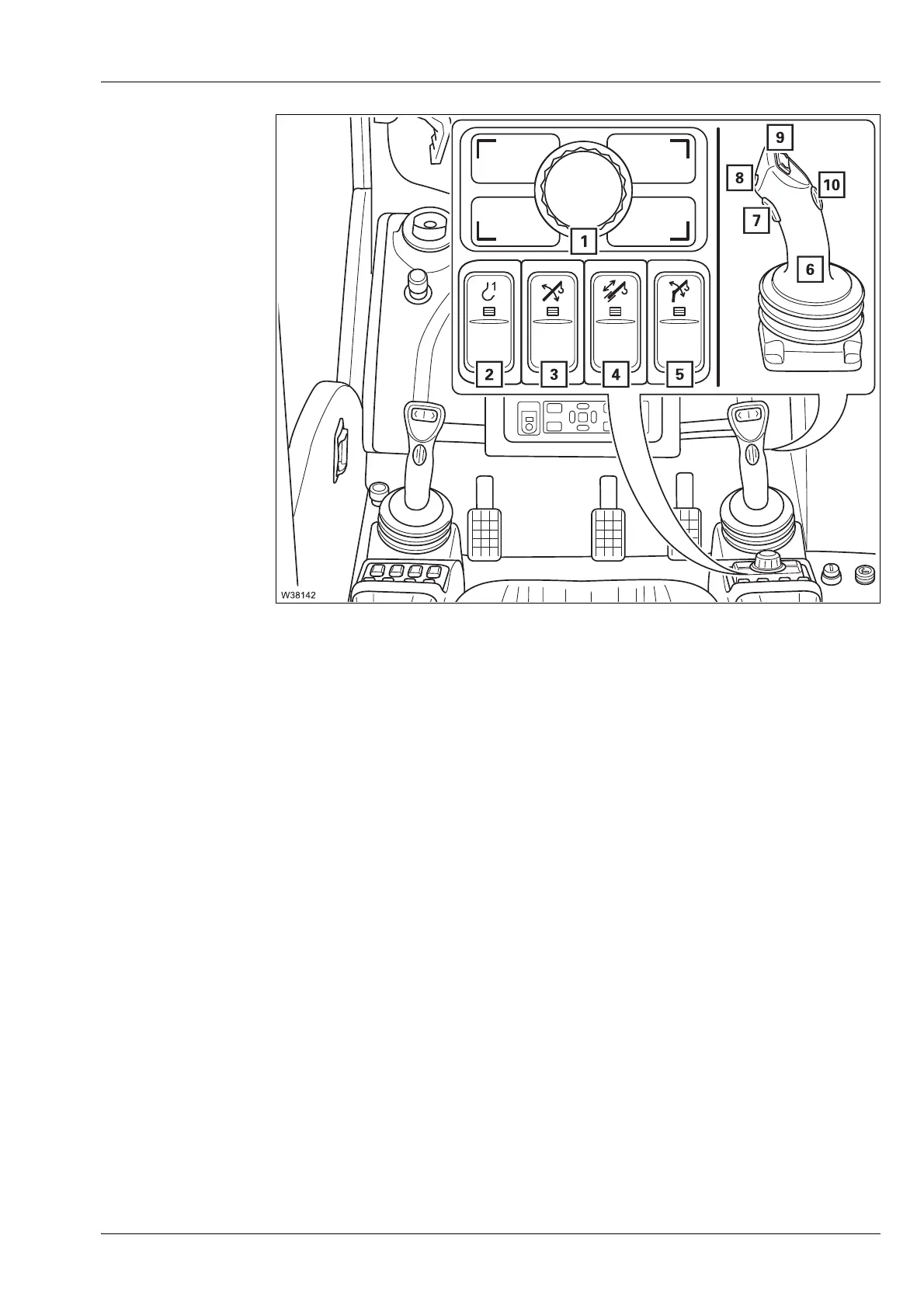

Right
1 Jog dial (rotary push button)
à p. 9 - 95
2 Main hoist on/off
à p. 9 - 114
3 Derricking gear on/off
à p. 9 - 120
4 Telescoping mechanism on/off
à p. 9 - 122
5 Lattice extension derricking gear
1), 2)
6 Right-hand control lever (configuration depends on
version)
à p. 9 - 14
7 Dead man's switch
à p. 9 - 94
8 Horn
à p. 9 - 149
9 Depending on which function is switched on,
button for:
– Hoist high-speed mode on/off
– Steering in normal steering mode
à p. 9 - 114
à p. 9 - 166
10 Main hoist slewing indicator
à p. 11 - 78
1)
Additional equipment
2)
à Lattice extension operating manual
