Rigging work
12.8 Outrigger operation
Operating manual 3 302 709 en 12 - 65
GMK5150L
12.01.2018

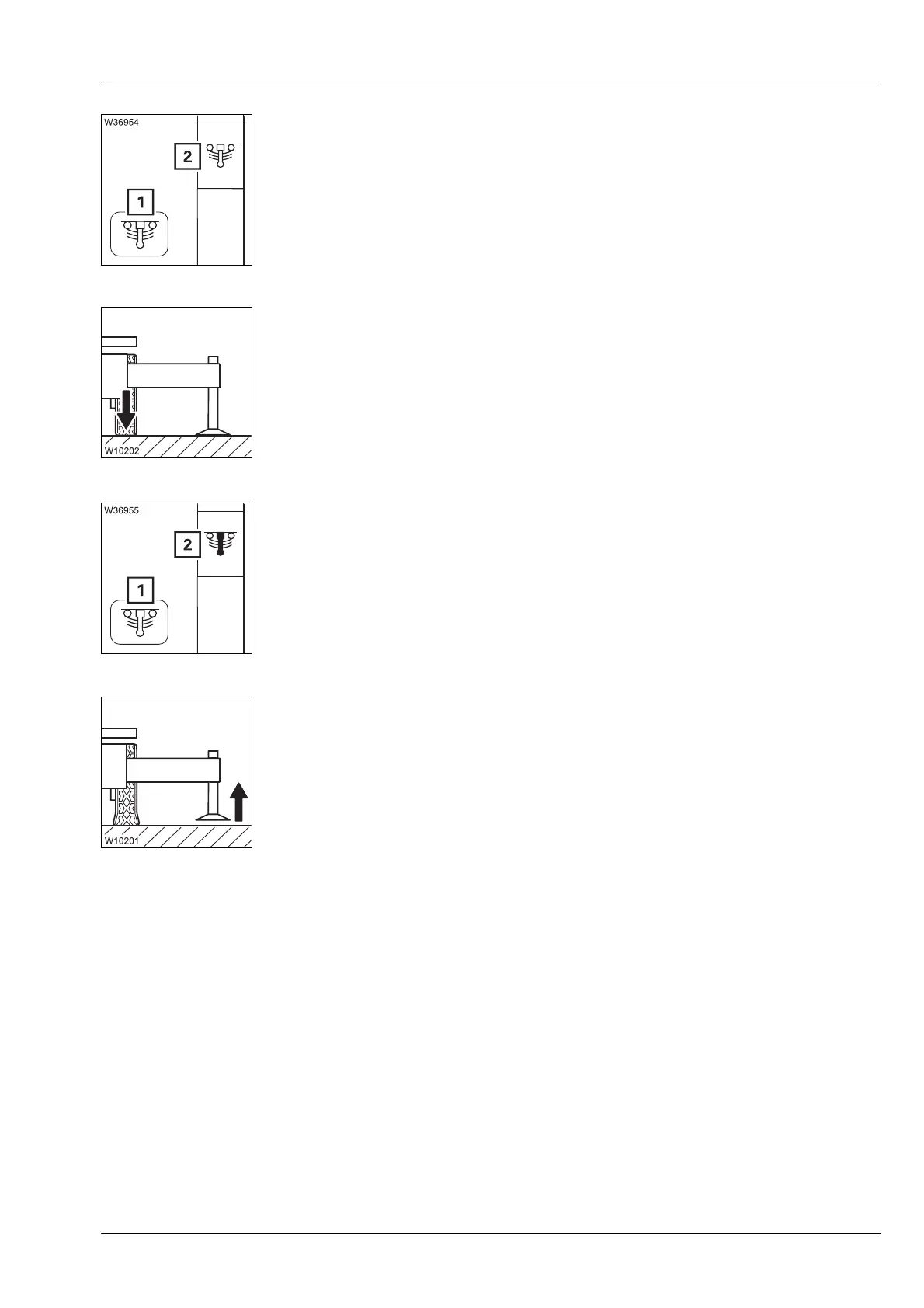

Switching on the suspension
• Select and confirm the symbol (1) once.
The symbol (2) is green if the suspension is switched on.
Now all wheels are lowered to the ground and are in the right position for
the horizontal alignment.
Switching off the suspension
• Select and confirm the symbol (1) once.
The symbol (2) is red if the suspension is switched off.
To secure the truck crane
• Retract the supporting cylinders until the outrigger pads are
about 5 to 10 cm (2 to 4 in) above the ground. Leave the outrigger
beams extended.
