Manitowoc GROVE GMK5150L

Rigging work
12.10 Rigging work on the main boom
12 - 138 3 302 709 en Operating manual
GMK5150L
12.01.2018
With 9 head
sheaves
The 7th head sheave of the auxiliary single-sheave boom top
1)
is used for
this version.
9-pulley hook block
1)

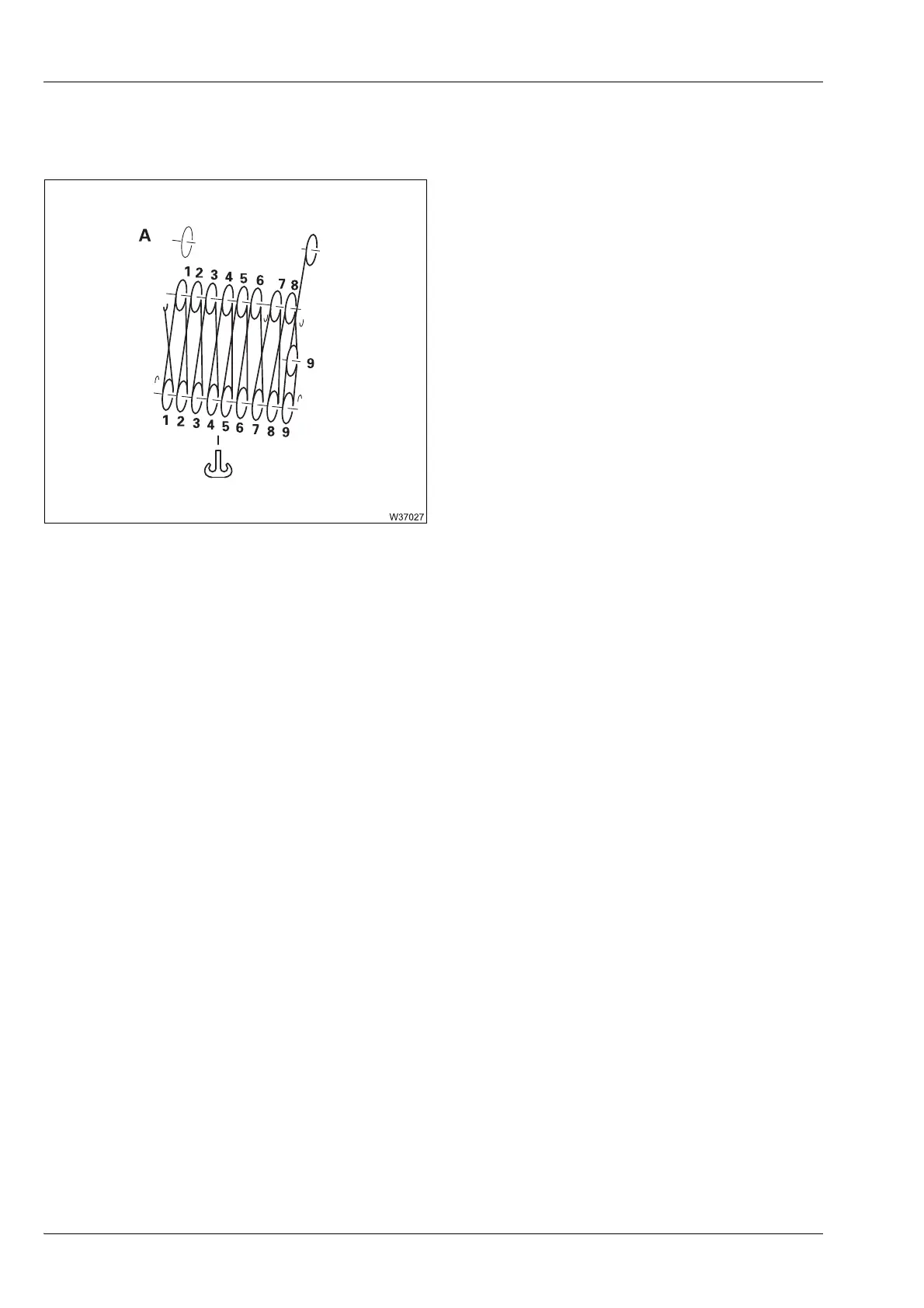

Reeving
A 18-falls
2)
1)
Additional equipment;
à Lattice extension operating manual
2)
Only with special equipment; à p. 1 - 7
