Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating manual 3 302 709 en 6 - 27
GMK5150L
12.01.2018

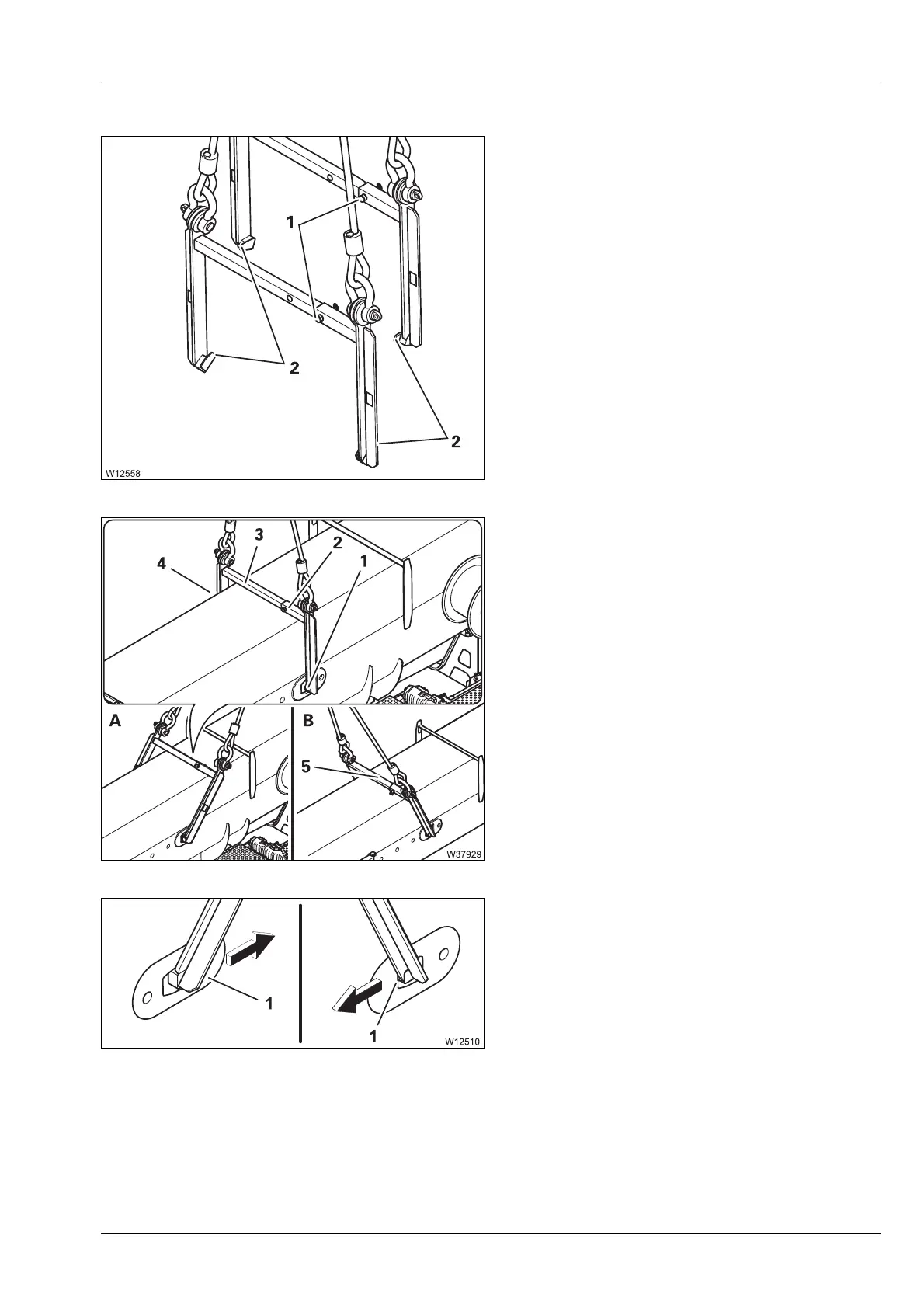

Attach lifting gear
• If the installation is correct, the load-bearing
equipment (2) of both brackets point to each
other.
• Lock both brackets in the wide position.
Secure the pins (1) using the retaining pins.
• Install the front bracket first. It hangs on
longer ropes, which makes installing the
back bracket easier.
• Insert the bracket (3) into the slinging
point (1). Pull the pin (2)
• Insert the bracket into the slinging point (4).
• Secure the bracket with the pin (2) and the
retaining pin.
• (A) – Pull the bracket to the centre –
the bracket must rest on the slinging
point on both sides.
• (B) – Install the bracket (5) in the same
manner
• (A) – Before lifting, make sure the brackets
on both sides are resting on the slinging
point (1)
s
