Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 28 3 302 709 en Operating manual
GMK5150L
12.01.2018
Removing the
sling gear

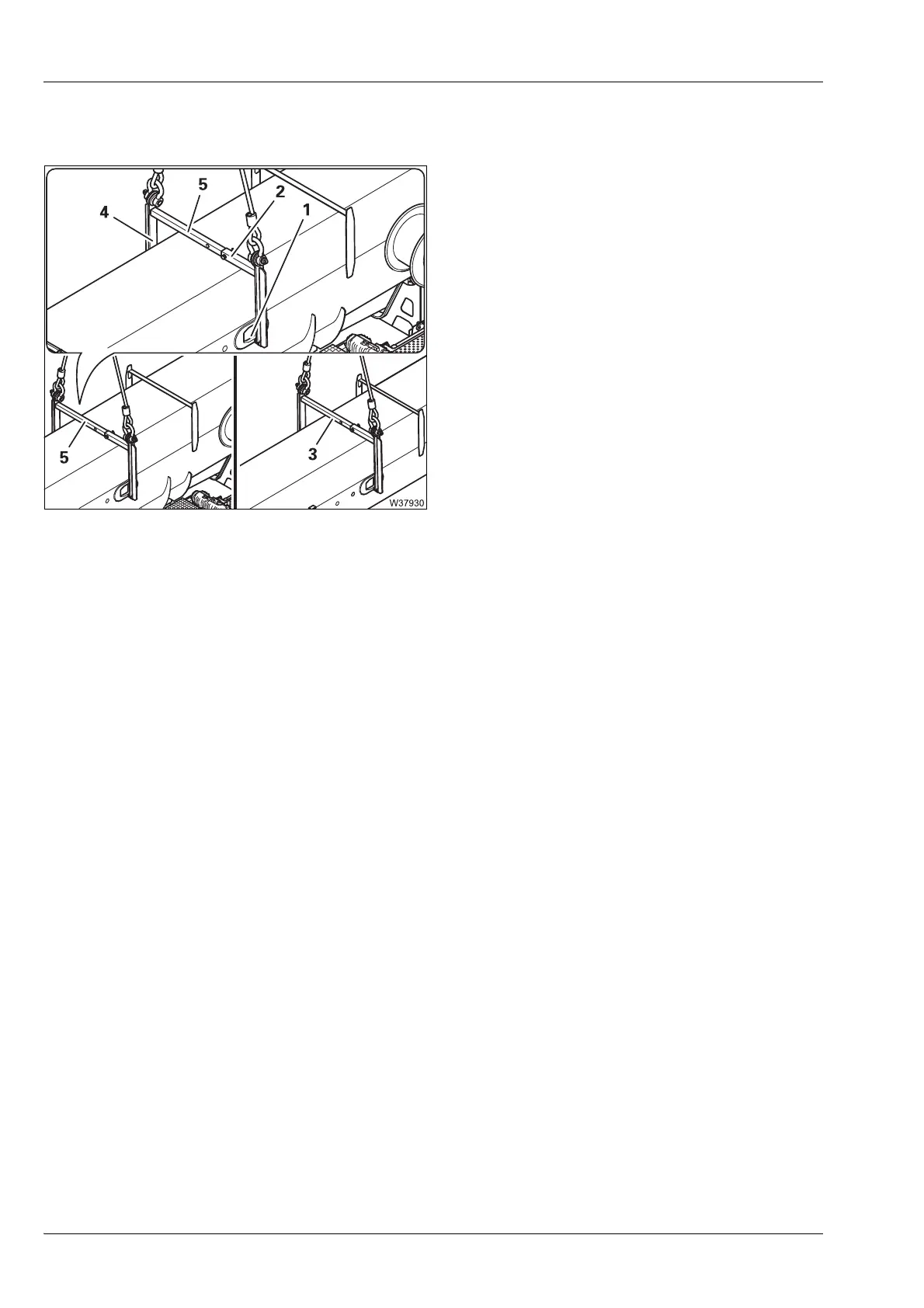

• Remove the pin (2) and pull the bracket (5)
out of the slinging point (4)
• Secure the bracket with the pin (2) and the
retaining pin.
• Pull the bracket out of the slinging point (1)
• Position the lifting gear such that the
bracket (3) is relieved.
• Remove the bracket (3) in the same manner.
• Put down the lifting gear for transport.
