Driving
5.5 Separate steering
Operating manual 3 302 709 en 5 - 61
GMK5150L
12.01.2018

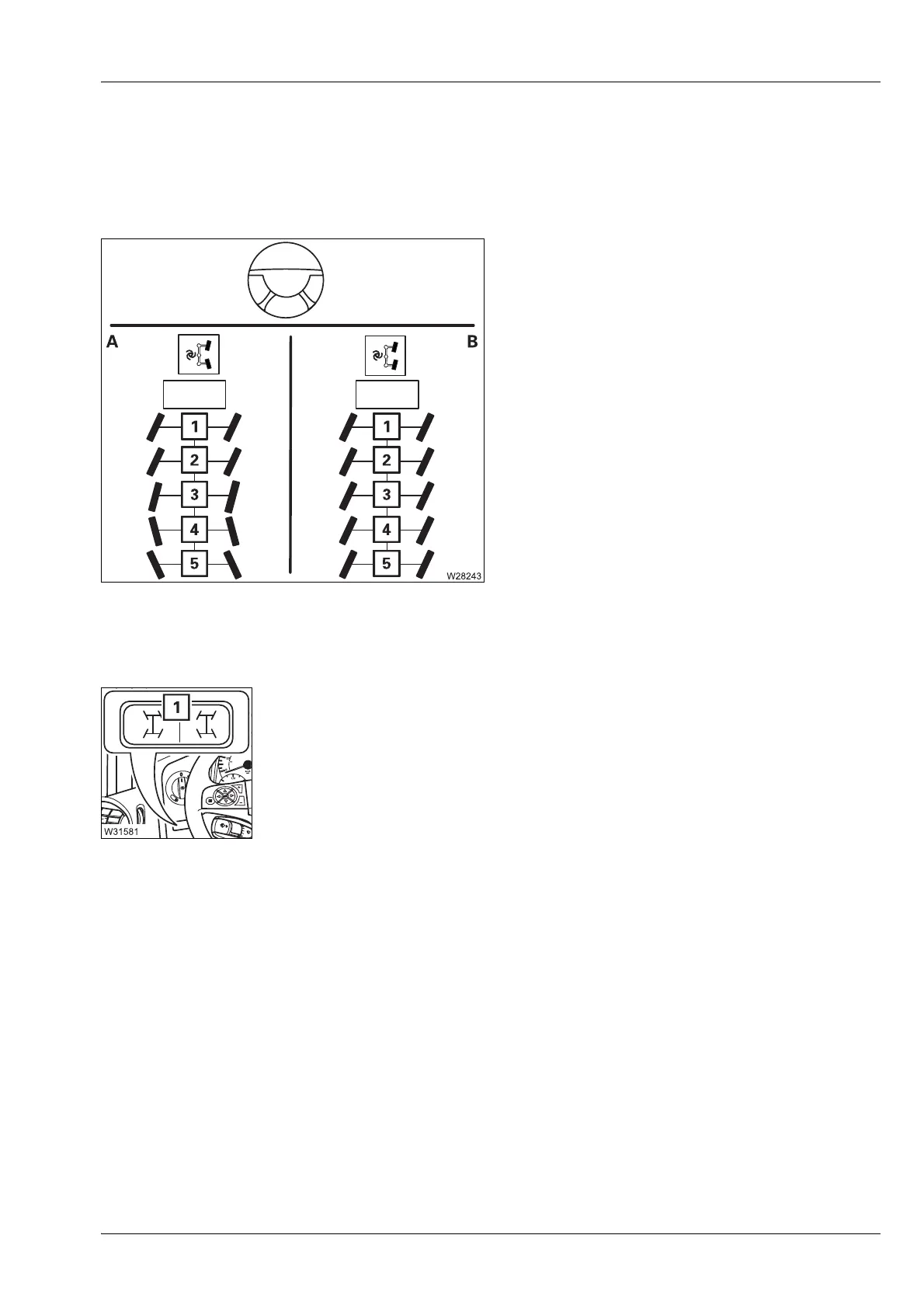

Sterring with separate steering – automatic
• Steer the 1st and 2nd axle line with the steering wheel.
The electronics will register the steering angle on the 1st and 2nd axle lines
and automatically steer the wheels of the 3rd and 5th axle lines.
(A) – When driving around corners
The 3rd to 5th axle lines are always steered to
suit the turning radius.
– The 3rd axle line is steered in the same
direction as the 1st and 2nd axle lines.
– The 4th and 5th axle lines are steered in the
opposite direction to the 1st and 2nd axle
lines.
(B) – For crab travel mode
The 3rd and 5th axle lines are steered in the
same direction as the 1st and 2nd axle lines.
Steering with manual separate steering
• Steer the 1st and 2nd axle line with the steering wheel.
• Steer the 1st to 3rd axle line with the button (1).
The axle lines are steered as long as you keep the button pressed or until an
end position is reached.
s
– To turn to the left: • Press button (1) to the left.
– To turn to the right:
• Press button to the right.
