Driving
5.6 Heating and air-conditioning system
5 - 66 3 302 709 en Operating manual
GMK5150L
12.01.2018

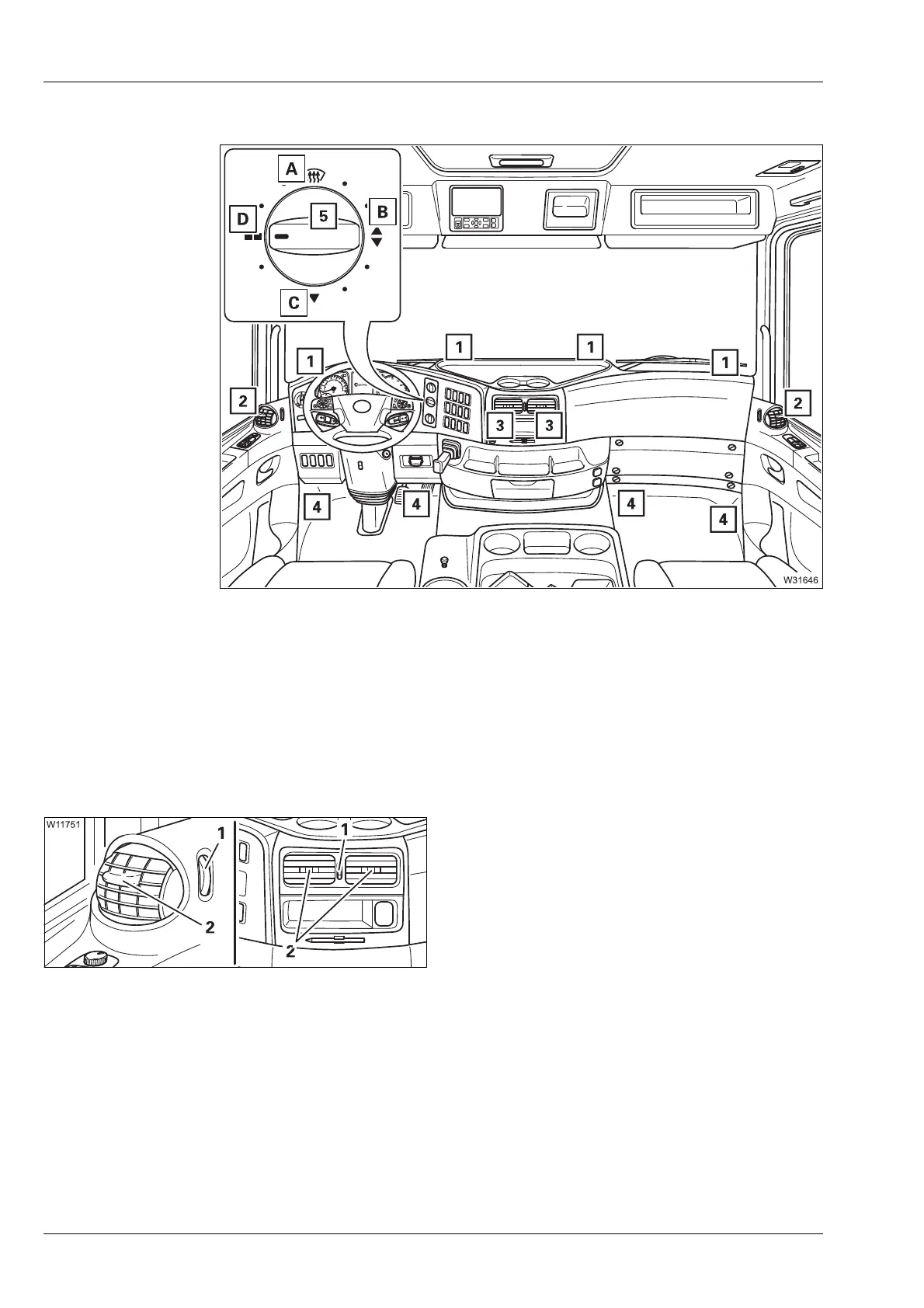

Air distribution You can direct the air to flow out of various air vents.
• Turn the switch (5) to the position for the required air vents.
You can adjust air vents (2) and (3).
Adjusting the air vents
A Air vents (1), (2) – front windscreen, side
B Air vents (1) to (4)
C Air vents (2), (3), (4) – side, centre, below
D Air vents (2), (3) – side, centre
1 – To open: Upwards
– To close: Downwards
2 To direct the air flow
