Driving modes and rigging for on-road driving
6.2 Weighing the truck crane
6 - 8 3 302 709 en Operating manual
GMK5150L
12.01.2018

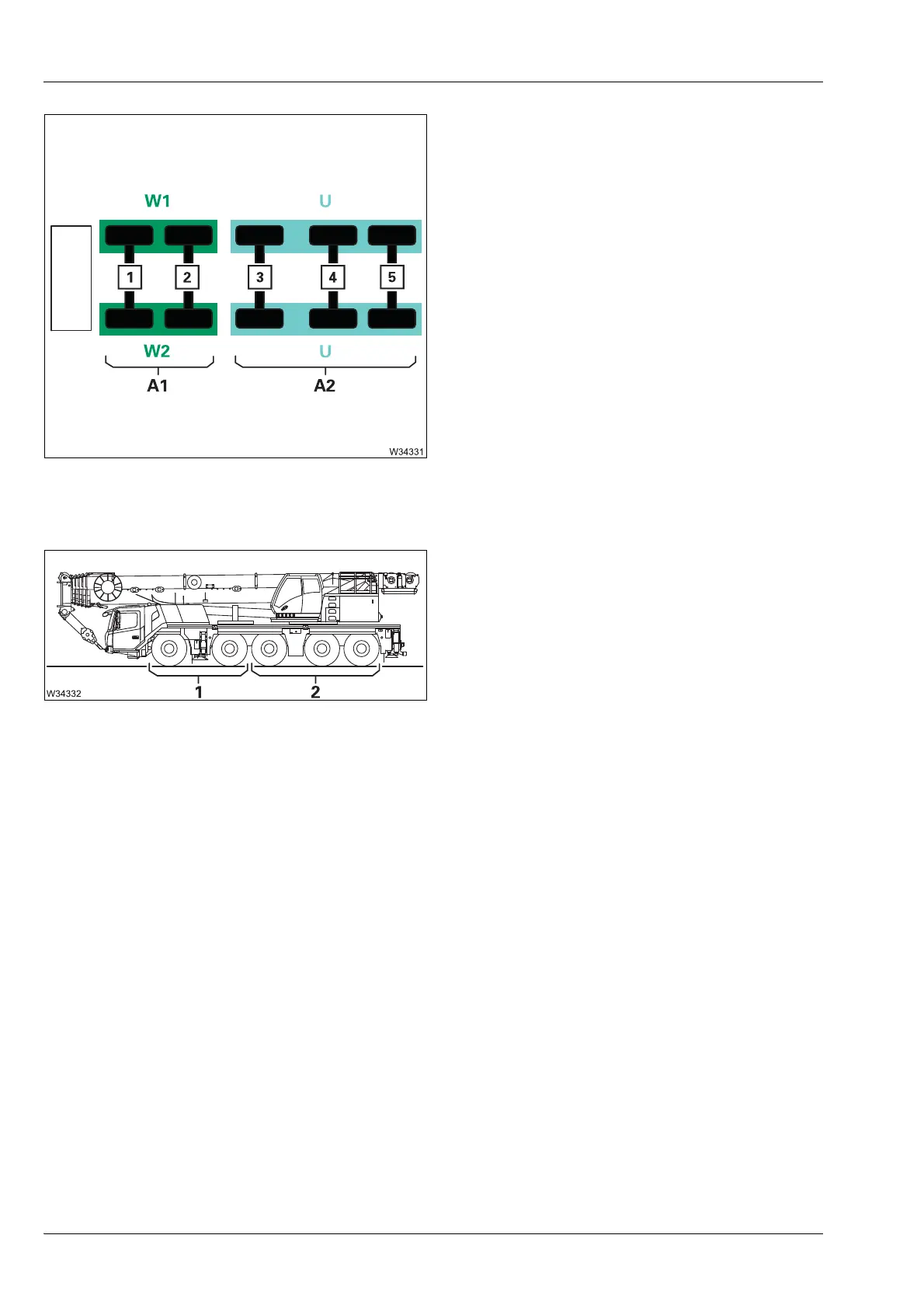

– Determining the axle loads
All the axle lines belonging to an axle group
must always be weighed. In addition, all the
wheels must be on the same level. If for
instance only the axle group A1 is to be
weighed, then the axle groups A2 must be
equalised on a support plate U which has
the same height as the scales W1 and W2.
Axle groups
GMK5150L
– Axle group 1 1. + 2. axle lines
– Axle group 2 3. + 4. + 5. axle lines
