Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 34 3 302 709 en Operating manual
GMK5150L
12.01.2018
Pushing the
pivot pin in
After pushing in, you must secure the pivot pins and switch the hydraulic
circuit over.

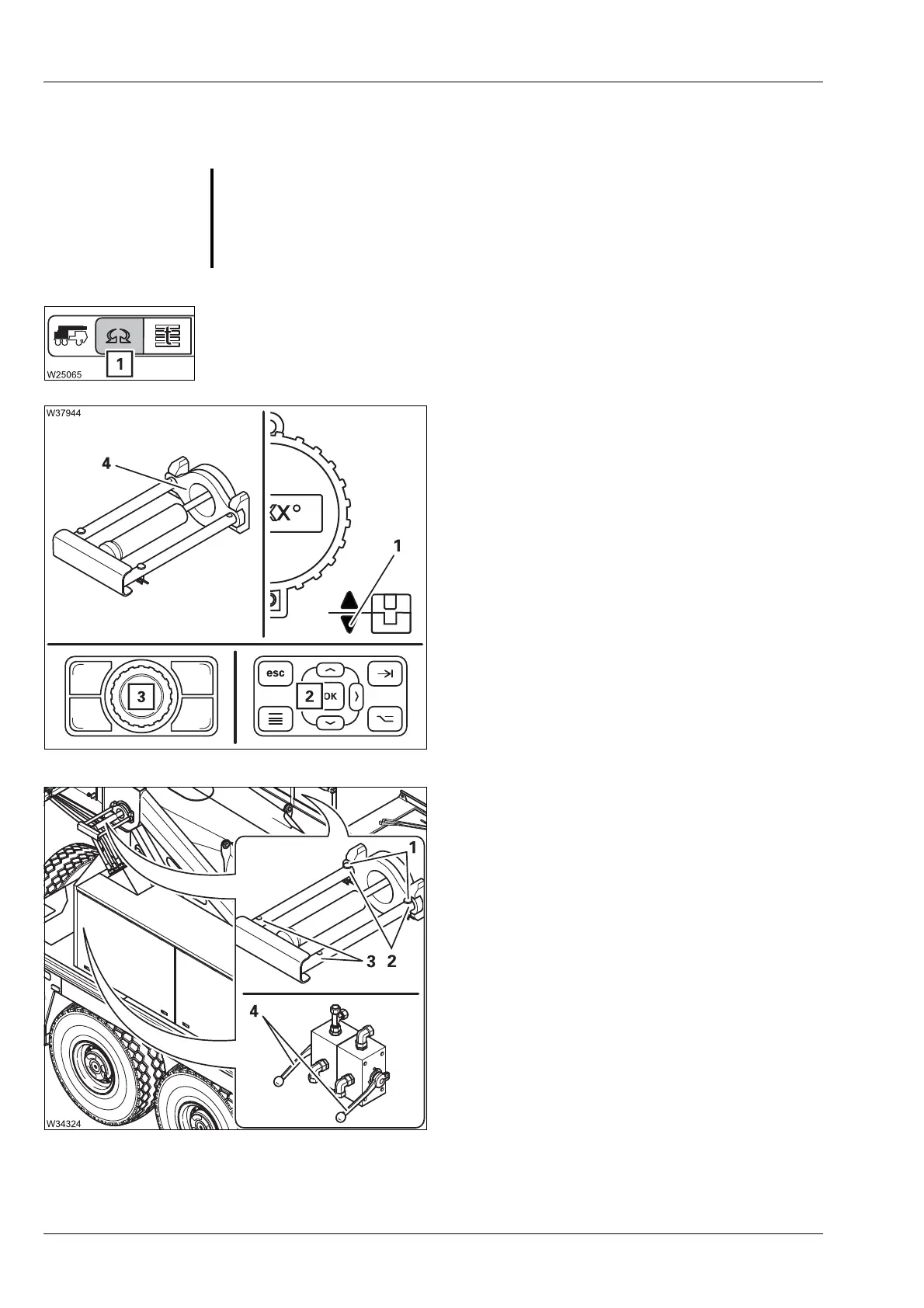

• Open the Superstructure lock menu (1) if necessary.
Pushing the pivot pin in
• Start the engine from the crane cab;
à p. 10 - 3.
• Select the symbol (1).
• Press and hold (2) or (3) button until the
pivot pins (4) are completely pushed in on
both sides.
• Switch the engine off.
Securing the pivot pins
• Remove the pins (1) from the connecting
points (3) and insert them into the connect-
ing points (2).
• Secure the pins (1).
• Secure the pivot pins on the other side in the
same way.
Switching over the hydraulic circuit
• Switch over valves – lever (4) horizontal.
S
Risk of damage to the main boom
Before pushing in, the bearing points on the turntable must be aligned with
the boom pivot pin.
