Operating elements for crane operation

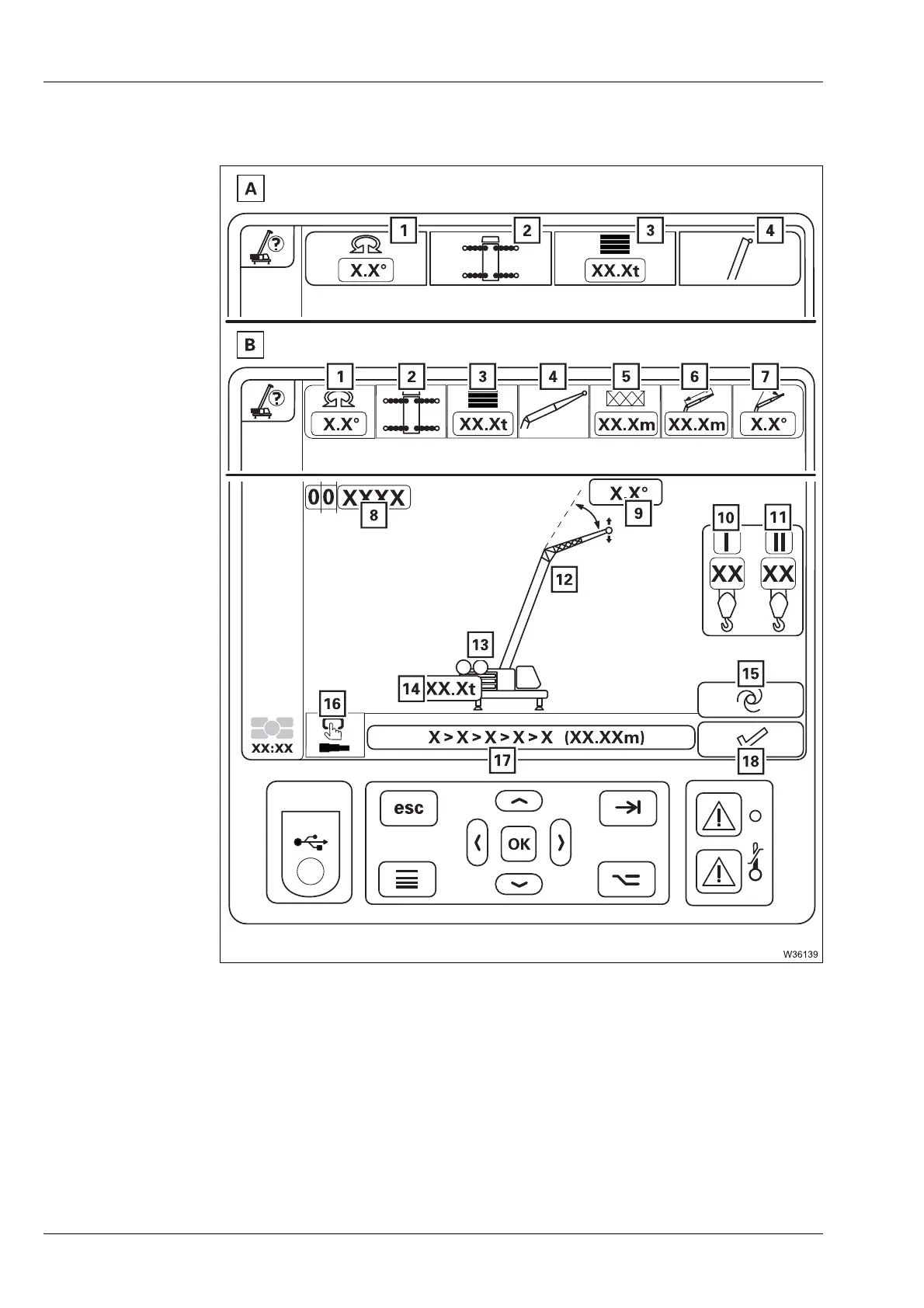

9.1 Overview of the operating elements
9 - 38 Operating manual
GMK5150L
Menu enter
rigging mode/
telescope
–For the Standard slewing range type
H
Depending on the version, the top view (2) is shown rotated by 180°.
The representation occurs in the same manner as in the RCL
Monitoring
menu;
à p. 9 - 78.
A For the Main boom boom system
B For the
Lattice extension boom system
