Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 111
GMK5150L

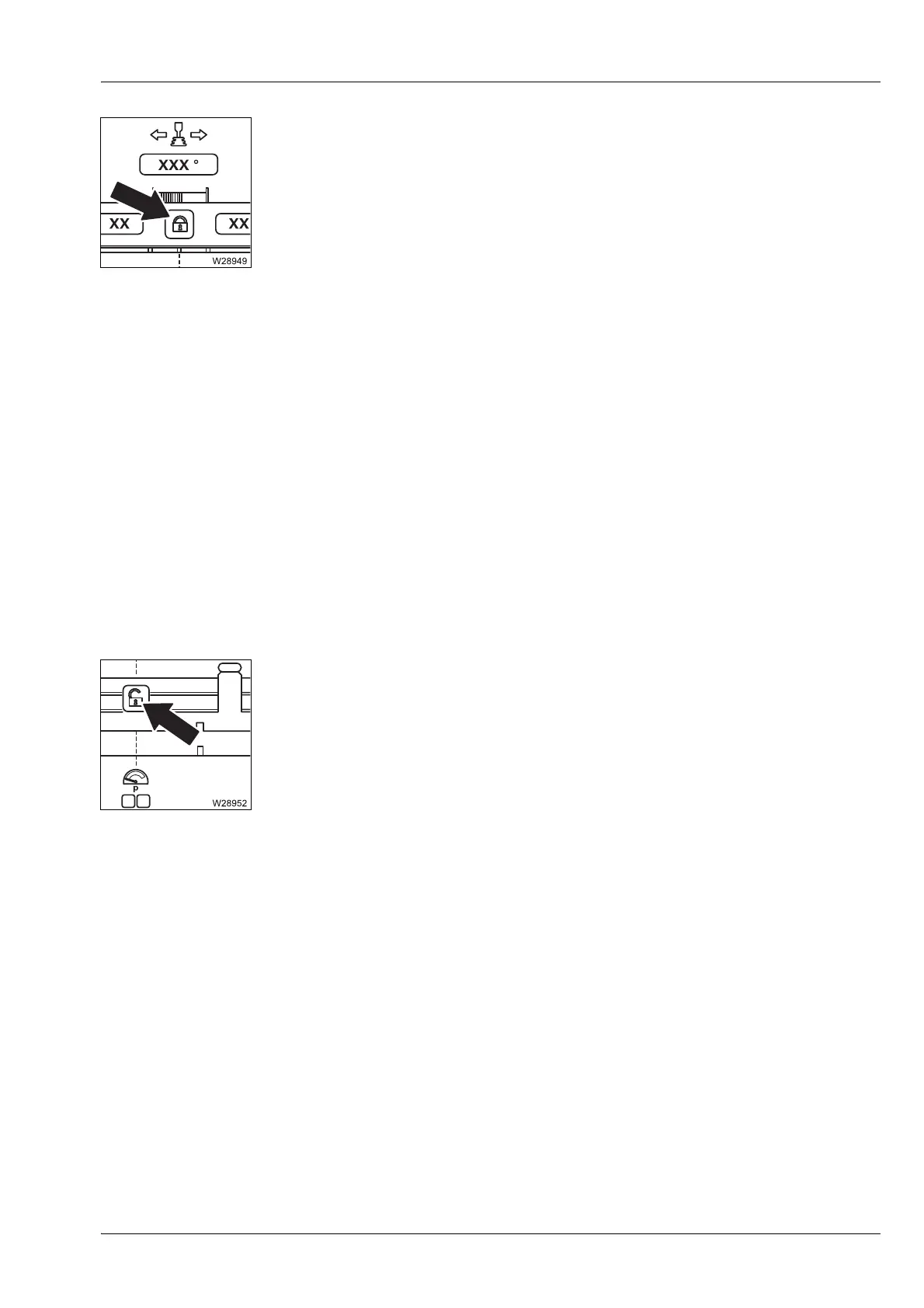

Automatic mode, rigging
The superstructure is within the rigging range, the slewing gear is switched
on and the lifting cylinders are retracted
Automatic mode, unrigging
The superstructure is within the rigging range and the slewing gear is
switched on
s
– Display Yellow: Recognition that the counterweight is rigged
Flashing: Automatic mode on
Grey: Automatic mode cancelled or
No recognition that counterweight is rigged
– To switch on: Select symbol and confirm – symbol flashes yellow
– To execute: Move control lever for slewing gear, automatically:
– Slewing in
Move lifting cylinders position
– Extend lifting cylinders,
Move the control lever for slewing gear in indicated
direction, automatically:
– Slewing in
Lift/lower counterweight position,
– Lift counterweight,
– Pre-tension counterweight.
Automatic mode ends – symbol yellow
à p. 12 - 105
– Display Yellow: Recognition that the counterweight is
unrigged
Flashing: Automatic mode on
Grey: Automatic mode cancelled or no recognition
that the counterweight is unrigged
– To switch on: Select symbol and confirm – symbol flashes yellow
– To execute: Move control lever for slewing gear, automatically:
– Slewing in
Lift/lower counterweight position,
– Lower the counterweight,
move the control lever for slewing gear in indicated
direction, automatically:
– Slewing in
Move lifting cylinders position,
– Retract the lifting cylinders,
Automatic mode ends – symbol yellow
à p. 12 - 107
