Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 119
GMK5150L

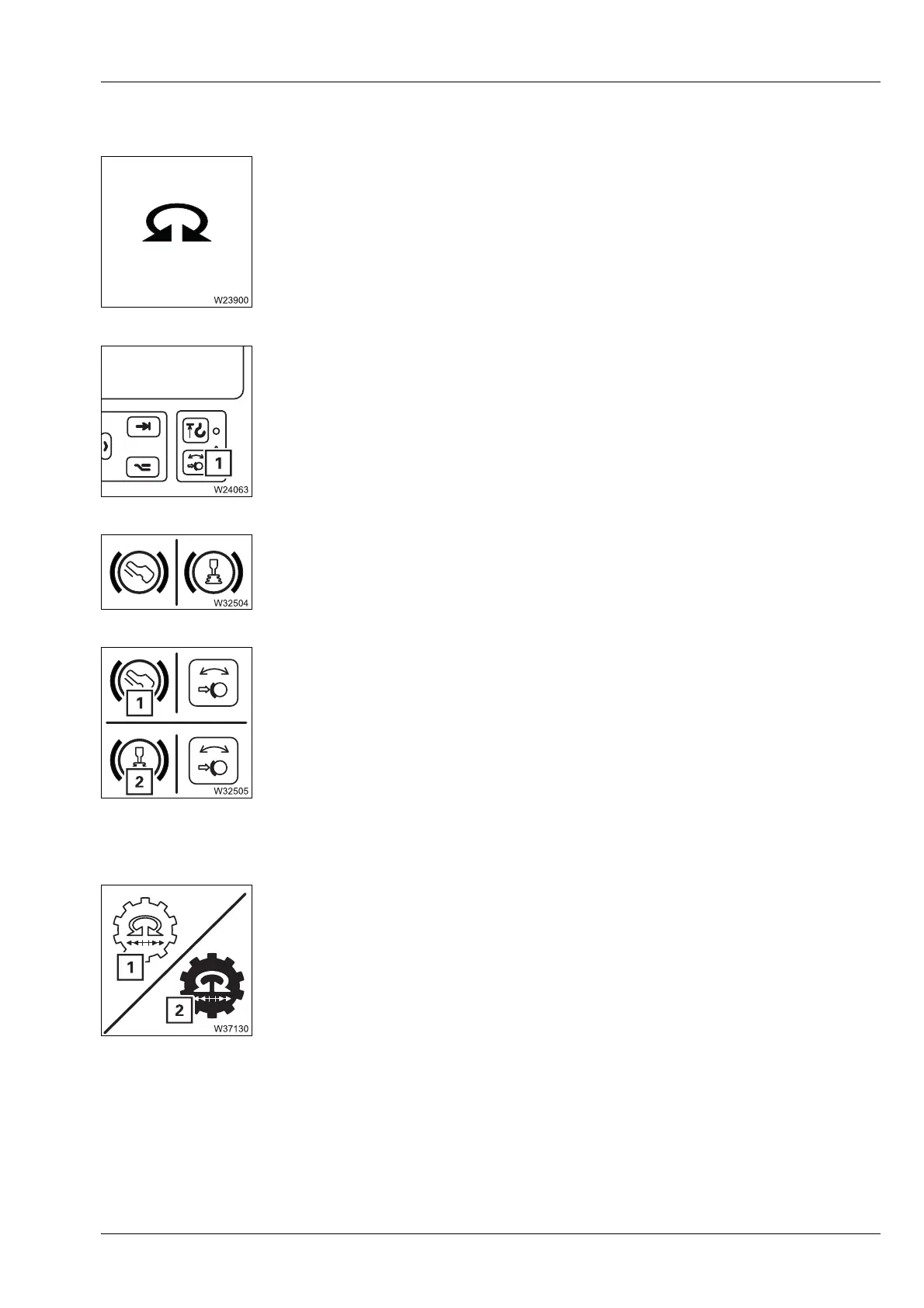

CCS display
Power units display
Slewing gear brake engaged/released
Switch slewing gear brake function
Slewing gear is switched on
Slewing gear brake function display
Slewing speed reduction on/off
– Green: Slewing gear on
–Red: Slewing gear off
1On: Slewing gear brake applied
1Out: Slewing gear brake released
à p. 11 - 116
–To switch: Select symbol and confirm – the function is displayed
1 Brake pedal function
Brake slewing movement – actuate
Slewing gear brake pedal
2 Control lever function
Brake slewing movement – control lever in the zero position
Slewing gear brake pedal without function
à p. 11 - 115
Switch off: Select symbol (1) and confirm – Symbol (2) is displayed
Switch on: Select symbol (2) and confirm – Symbol (1) is displayed
à Switching the reduction of slewing speed on and off, p. 11 - 121
