Operating elements for crane operation
9.2 Short description of the operating elements
9 - 130 Operating manual
GMK5150L

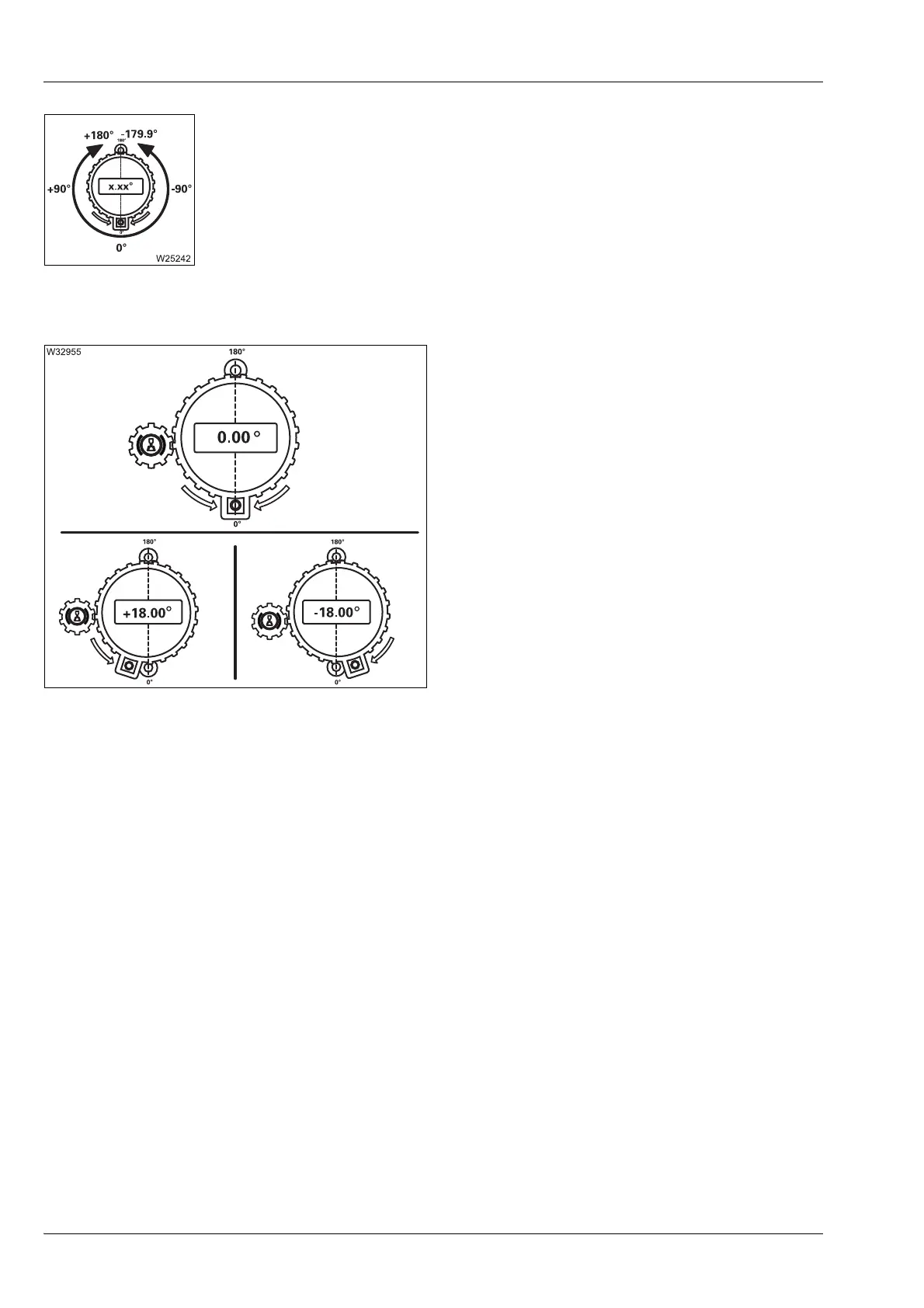

Current slewing angle display
Directional indicator
Current position ±20° in front of the locking
point.
0°:
0° to the rear position – locking point
180°:
180° to the front position – locking point
+0.1 to +180.0°: Turned to the right from 0°
-0.1 to -179.9°: Turned to the left from 0°
à p. 11 - 115
– Both arrows: locking point reached
– One arrow: direction of arrow =
turning direction towards
the locking point
à p. 11 - 15
