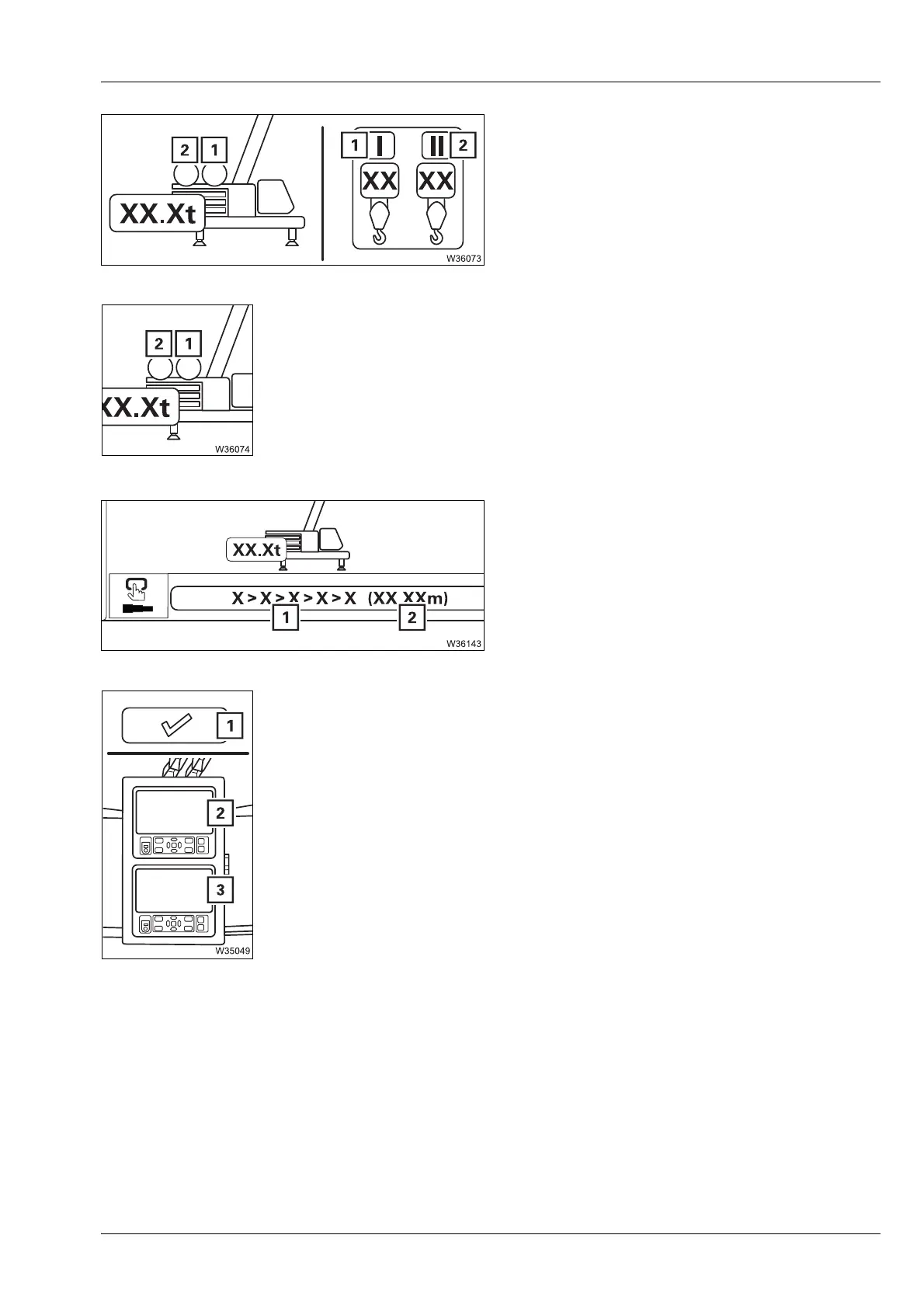

Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 137
GMK5150L
Reeving input mode display
Enter reeving
Preselected telescoping display
Confirming the rigging mode
s
1 Main hoist
2 Auxiliary hoist
Orange: on
Grey: off
à Enter rigging mode, p. 11 - 32
1 Main hoist
In input mode – select and confirm current reeving
2 Auxiliary hoist – functions as with (1)
à Enter rigging mode, p. 11 - 32
1 Telescope status display in
percentage (%)
2 Preselected main boom length (1) in
metres (m) or in feet (ft)
à Enter rigging mode, p. 11 - 32
1 – Orange: Select and confirm
– Rigging mode and preselected telescope status are
adopted – lifting capacity table is confirmed
– Display (2) –
Monitoring menu on
– Display (3) –
Start menu on
– Grey: MAXbase only – no selection possible
Measured outrigger width ≠ of required width
à Enter rigging mode, p. 11 - 32
