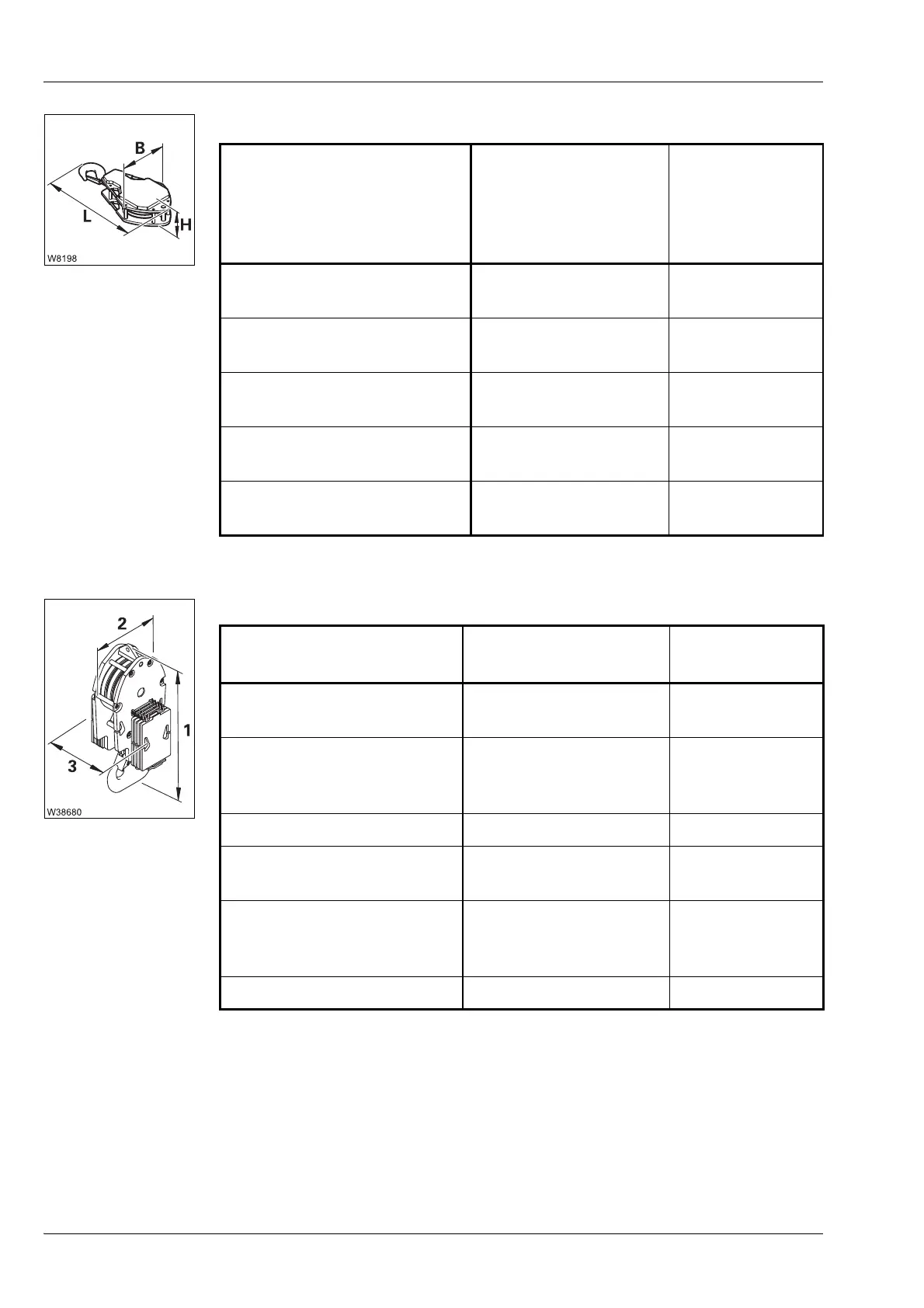

1.5 Technical data
1 - 12 3 302 709 en Operating manual
GMK5150L
12.01.2018
Standard versions
Versions with ballast plate – Version A
Description
Length x width x
height
(L) x (W) x (H)
in m
(ft)
Weight
In kg
(lbs)
Single or double hook,
8 sheaves
1.50 x 0.55 x 0.40
(4.90 x 1.80 x 1.30)
1,600
(1,325)
Single or double hook,
5 sheaves
1.40 x 0.55 x 0.30
(4.60 x 1.80 x 1.00)
1,300
(795)
Single or double hook,
3 sheaves
1.40 x 0.55 x 0.30
(4.60 x 1.80 x 1.00)
950
(795)
Single hook, 1 sheave 1.35 x 0.55 x 0.25
(4.45 x 1.80 x 0.82)
500
(465)
Hook tackle 0.90 x 0.35 x 0.35
(2.95 x 1.15 x 1.15)
200
(220)
Description
(1) x (2) x (3)
in m
Weight
In kg
Hook block
1 sheave with ballast plates
1.33 x 0.56 x 0.47
(4.36 x 1.84 x 1.54)
500
Hook block
1 sheave without ballast
plates
1.33 x 0.56 x 0.20
(4.36 x 1.84 x 0.65)
325
1 ballast plate 23
Hook block
3 sheave with ballast plates
0.82 x 0.50 x 0.59
(2.70 x 1.64 x 1.94)
450
Hook block
3 sheave without ballast
plates
1.36 x 0.53 x 0.19
(4.46 x 1.74 x 0.62)
275
1 ballast plate 23
