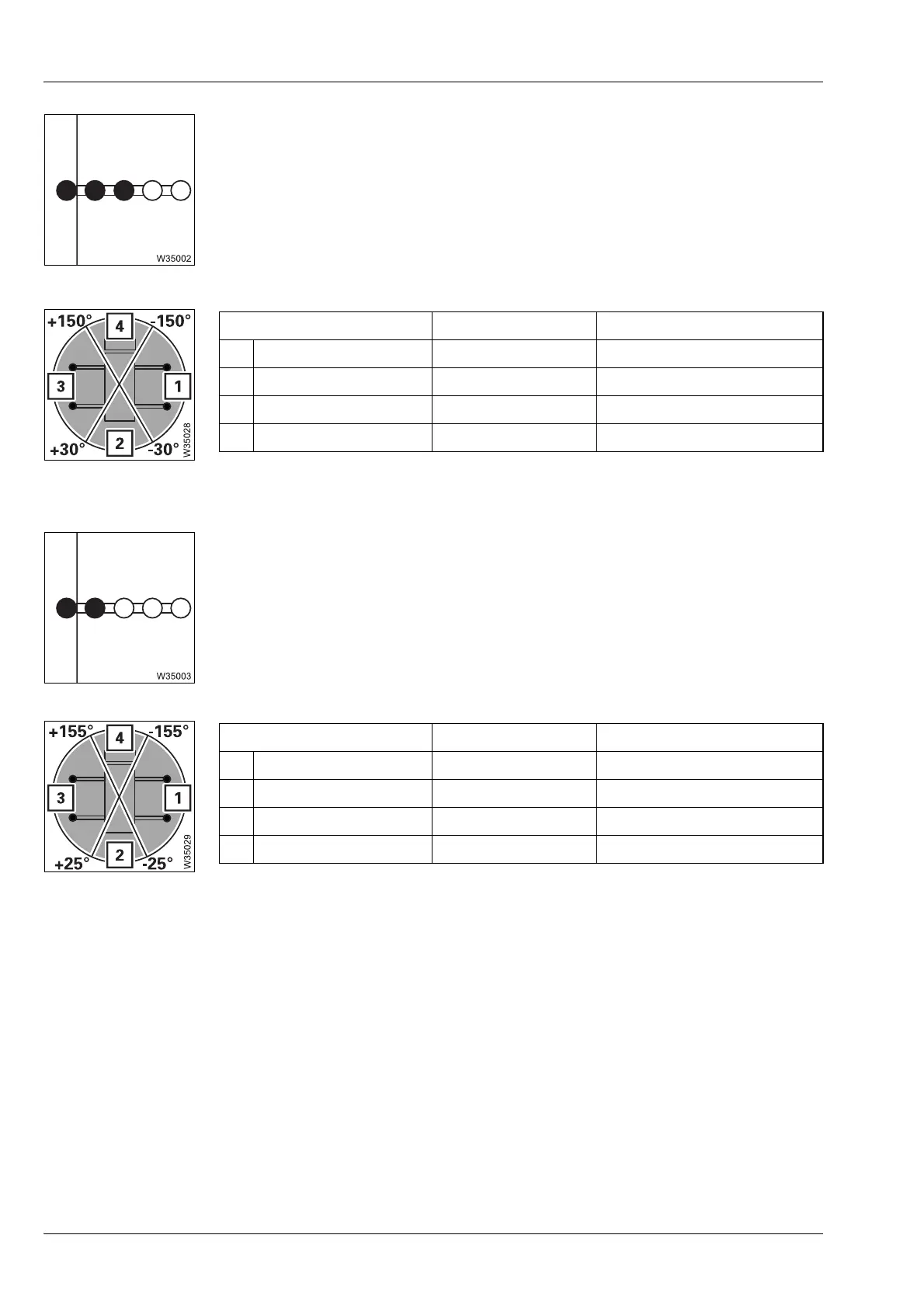

Crane operation
11.3 MAXbase slewing range type
11 - 26 3 302 709 en Operating manual
GMK5150L
12.01.2018
Smallest individual width 2.950 m (9.7 ft)
This case applies when one or more outrigger beams is extended to a span
of 2.950 m (9.7 ft) and all other outrigger beams are extended to larger
spans.
Smallest individual width 2.550 m (8.4 ft)
This case applies when one or more outrigger beams is extended to a span
of 2.550 m (8.4 ft) and all other outrigger beams are extended to larger
spans.
Positional reference Angular range Enabled slewing range
1 To the right ±60° -150° to -30°
2 Backwards ±30° -30° to +30°
3 To the left ±60° +30° to +150°
4 Forwards ±30° +150° to -150°
Positional reference Angular range Enabled slewing range
1 To the right ±65° -155° to -25°
2 Backwards ±25° -25° to +25°
3 To the left ±65° +25° to +155°
4 Forwards ±25° +155° to -155°
