Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 709 en 11 - 33
GMK5150L
12.01.2018
Enter the slewing
range type

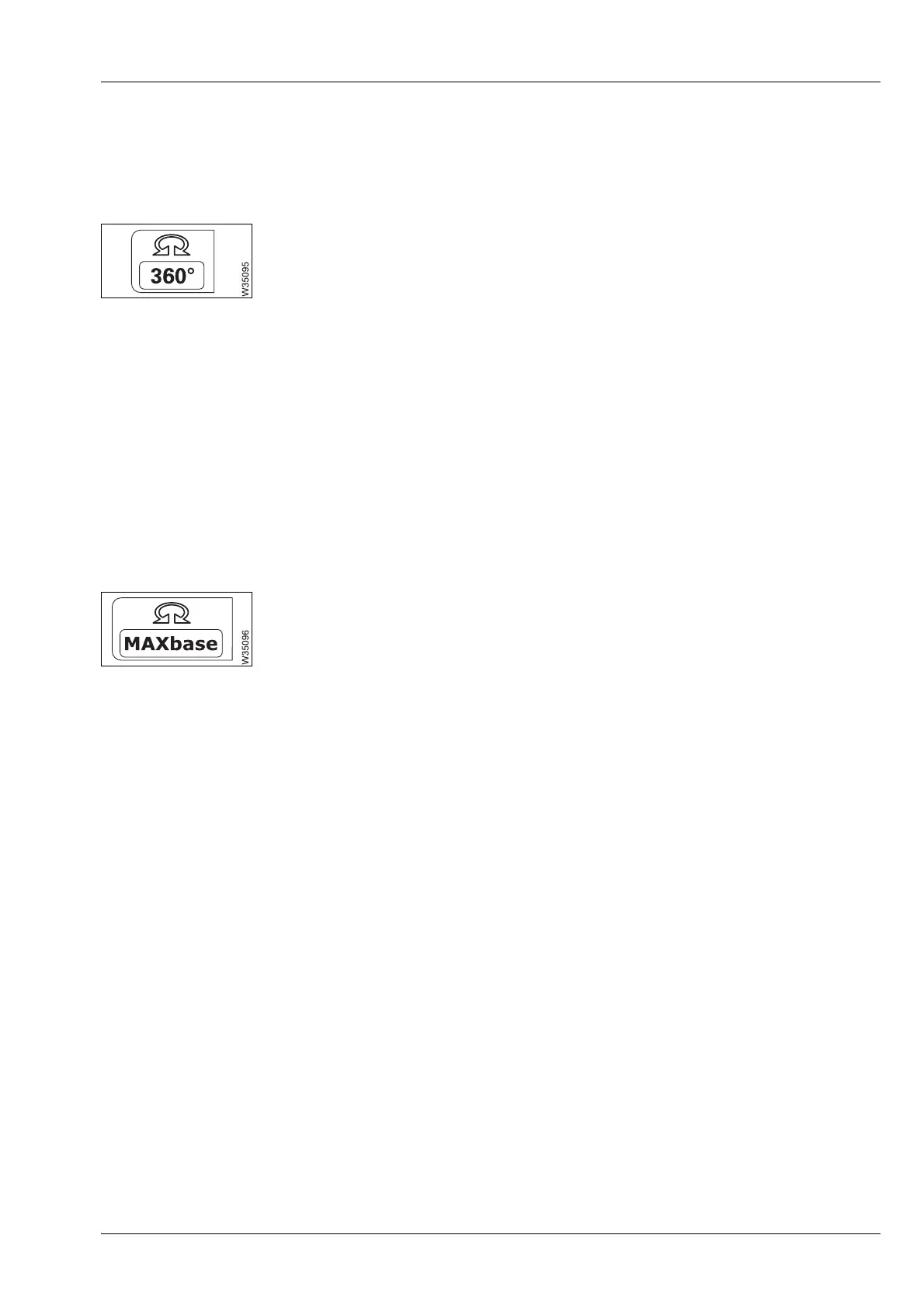

Possible types are the Standard slewing range type and, with the
corresponding equipment, the
MAXbase slewing range type.
Different lifting capacity tables apply depending on the entered slewing
range type and these then influence further input of the rigging mode.
– Slewing range type
Standard
The standard lifting capacity tables provided in printed form with the truck
crane apply. All rigging modes listed there can be entered.
– The rigging mode can be specified via entry of the reeving and RCL
code or via the individual components.
– In the case of individual components, the outriggers are always
entered as complete outrigger span.
– In the case of individual components, the slewing range is entered
according to the
Lifting capacity table.
H
An overview of all enabled Standard outrigger spans is provided in the
section
Outriggers; Ã Supplied operating manual.
– Slewing range type
MAXbase
The MAXbase tables apply, which are only provided in digital form due to
the wide diversity of configurations. All rigging modes listed there can be
entered.
– The rigging mode is entered via the individual components.
– The outriggers are entered as individual widths for each outrigger
beam.
– The enabled slewing range is displayed, divided into four areas with
different lifting capacities.
H
An overview of all enabled MAXbase outrigger spans is provided in the
section
Outriggers; Ã Supplied operating manual.
