Crane operation
11.4 Operation of the rated capacity limiter
11 - 46 3 302 709 en Operating manual
GMK5150L
12.01.2018

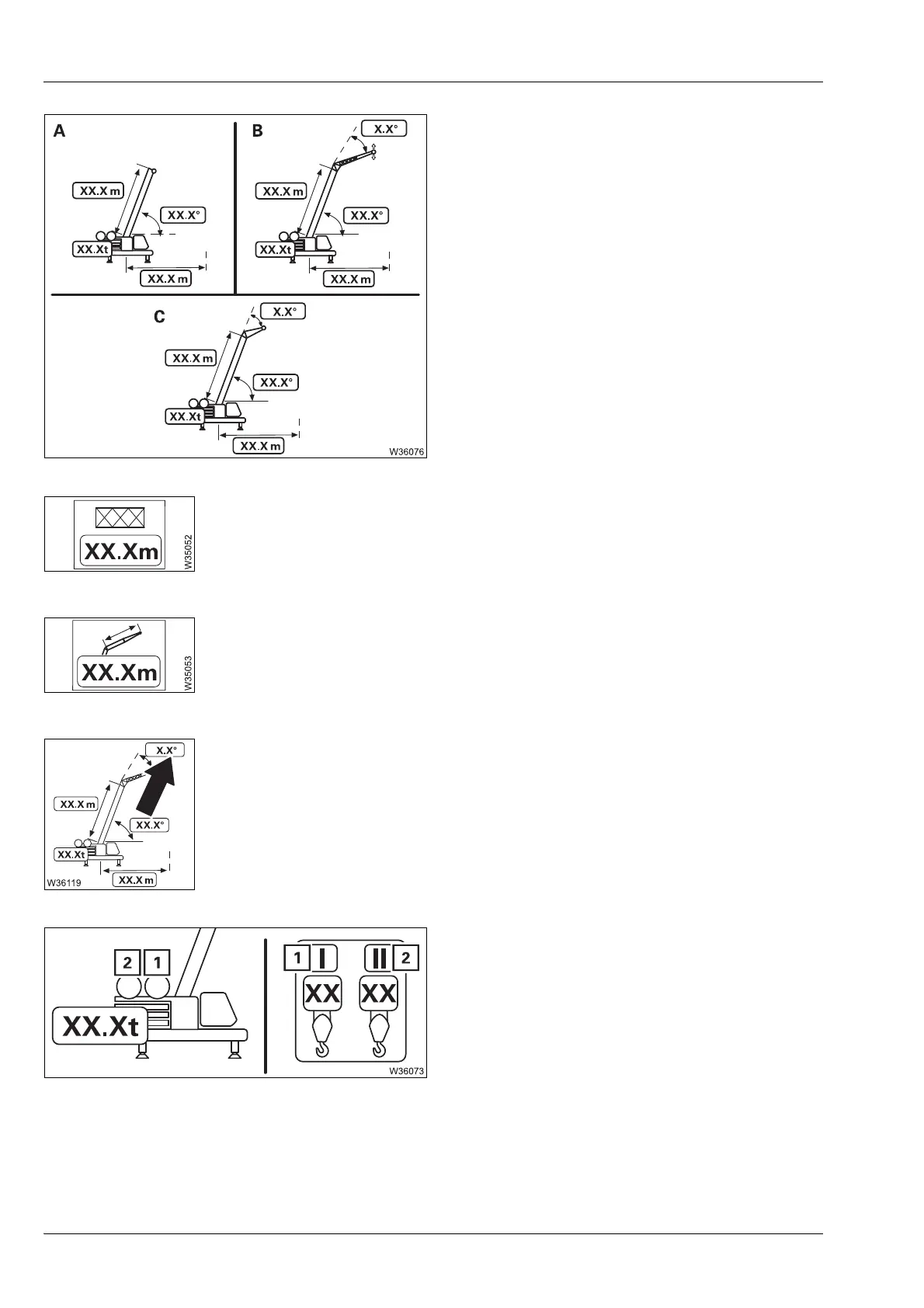

Boom system display
Shows the boom system corresponding to the
confirmed rigging mode.
Lattice extension display – length before the angle
Shows the required length of lattice extension before the angle according to
the confirmed rigging mode – in metres (m) or feet (ft).
Lattice extension display – length after the angle
Shows the required length of lattice extension after the angle according to
the confirmed rigging mode – in metres (m) or feet (ft).
Angle of the lattice extension display
Only for manually inclinable lattice extensions
Shows the required angle of the lattice extension for the confirmed rigging
mode.
Display of reeving used
A main boom
B Swing-away lattice extension
1)
/ boom
extension
1)
C Heavy load lattice extension
1)
1)
For the Standard slewing range type only.
The lattice extension must be electrically
connected.
1 Main hoist
2 Auxiliary hoist
Orange: Used
1)
Grey: Not used
1)
The value on the Maximum load display applies to this reeving.
You may need to switch over the display if necessary;
à p. 11 - 47.
