Crane operation
11.4 Operation of the rated capacity limiter
11 - 60 3 302 709 en Operating manual
GMK5150L
12.01.2018
Limitation due to reeving
If the maximum load is limited due to the
confirmed reeving then the disabled range
is marked.

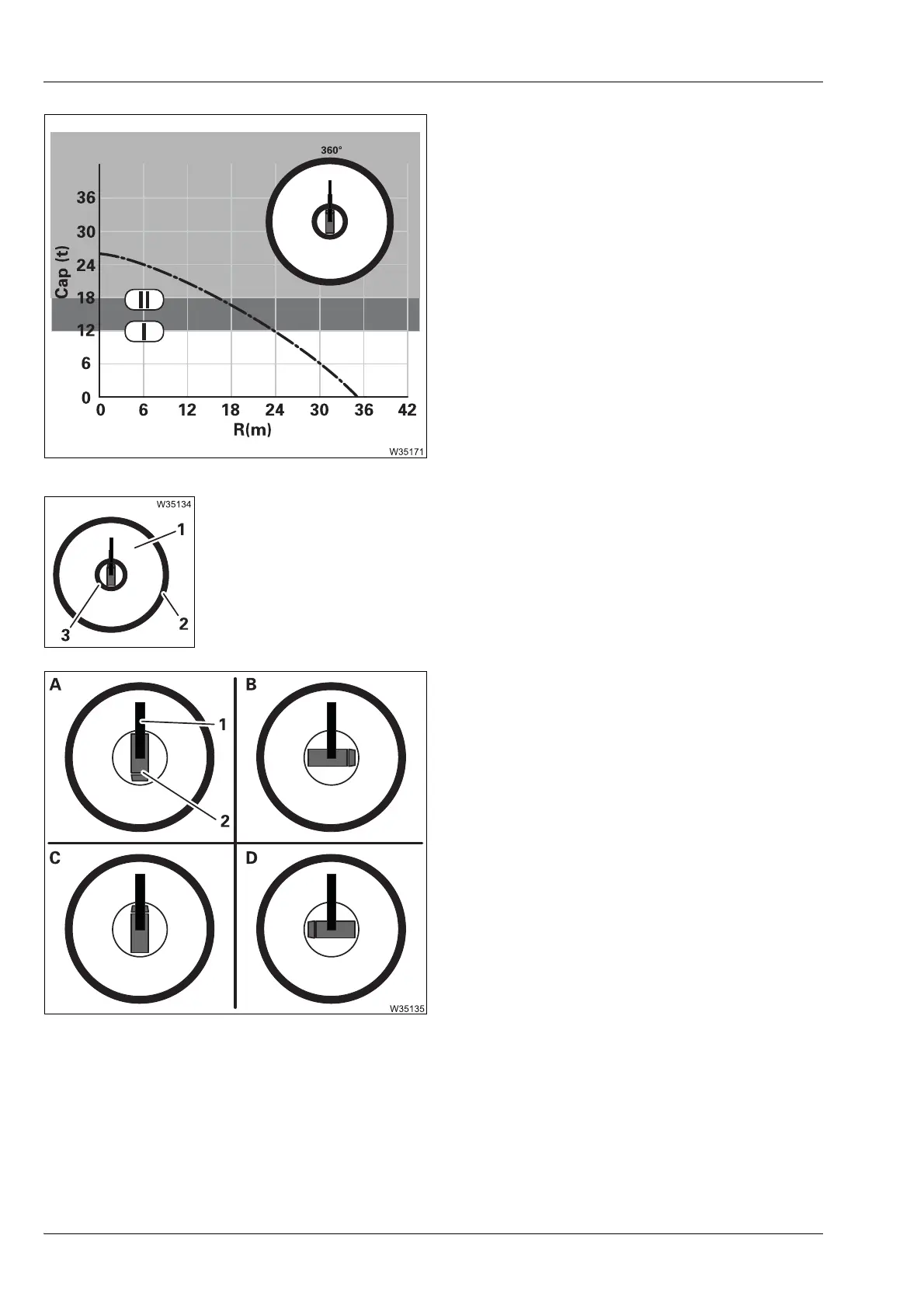

Slewing range display
When slewing
The symbol (1) for the superstructure always
points upwards and does not move.
The symbol (2) for the carrier rotates to the
position corresponding to the slewing angle.
Examples
I Display for main hoist, for example,
maximum load 12 t
II Display for main hoist, for example,
maximum load 18 t
1 Coloured: Enabled slewing range
2 Yellow/red: Shutdown range for maximum working radius
3White: Shutdown range for minimum working radius – display
only when the lifting capacity table specifies a limitation
A Current slewing angle 0°
B Current slewing angle +90°
C Current slewing angle 180°
D Current slewing angle -90°
