Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 709 en 11 - 69
GMK5150L
12.01.2018
Display the data You need the CraneEvaluation program in order to display the exported data.
The installation program is located in the
CraneEvaluation folder on the
Owner's USB stick supplied.

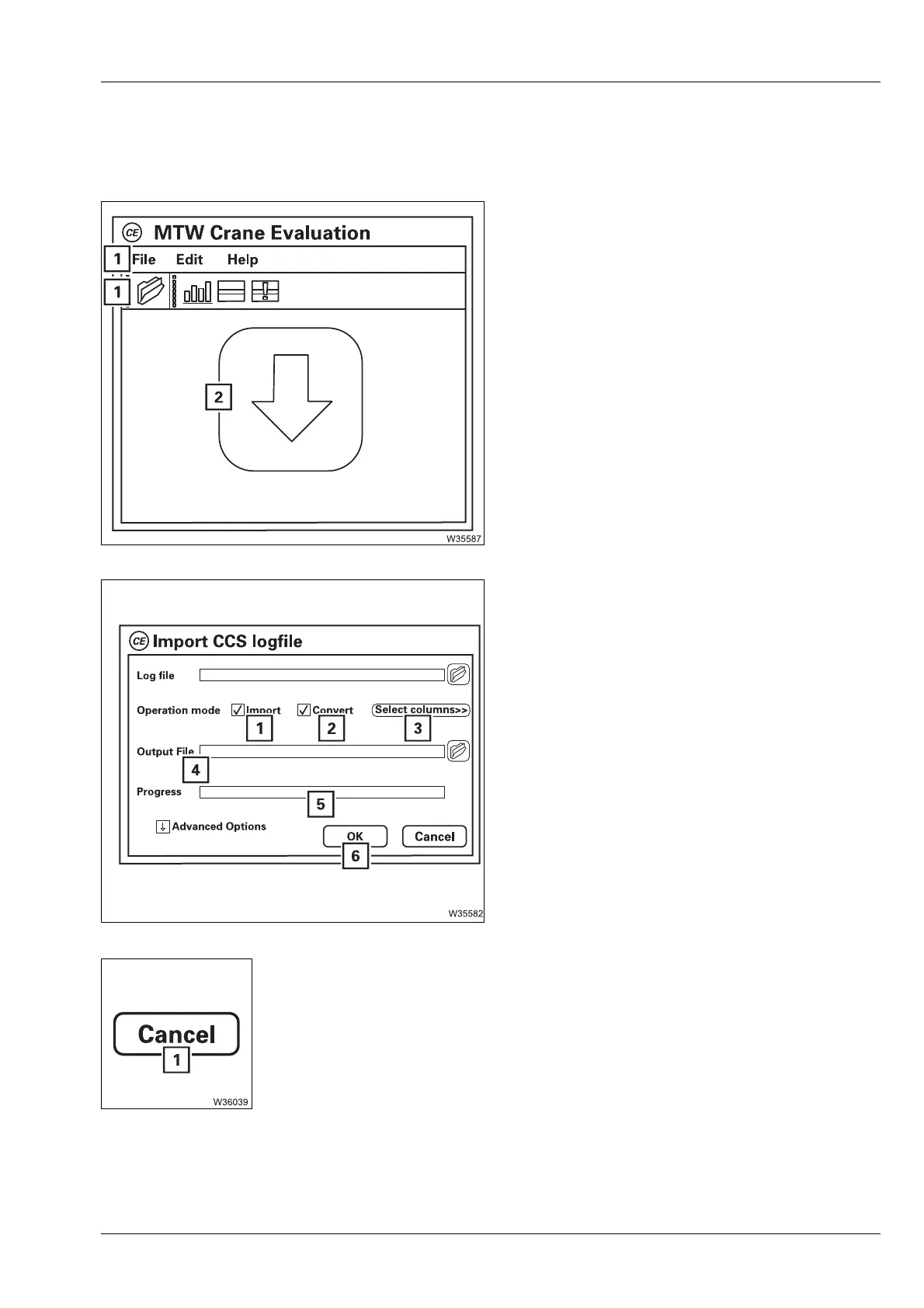

Import data
• Start the CraneEvaluation program.
• Drag the file xxx.mcd onto the symbol (2) or
open the file via a command (1).
An Import window with various settings is
displayed.
• Confirm the selection via the symbol (6) –
the display (5) shows the import progress.
A graphical selection window opens.
If you do not wish to select a graph, you can simply close the window –
symbol (1);
à Displaying tables, p. 11 - 71.
s
1 Import – the data is imported for display in
the program.
2
Convert – the data is saved in a log file that
can be opened for example, with Excel.
3
Select columns – with the default setting, all
available data is imported. The menu
allows individual selection.
4
Output File – Storage location for the
log file
GMKXXXX_XXXX_XXXX_XXXXXXX_XXXXXXX.mcd
XXX_XXXX_XXXXX_XXXXXXXX_XXXXXXXXX.log
