Manitowoc GROVE GMK5150L User Manual

Crane operation
11.5 Crane operation with main boom
11 - 94 3 302 709 en Operating manual
GMK5150L
12.01.2018
Assignment
for display

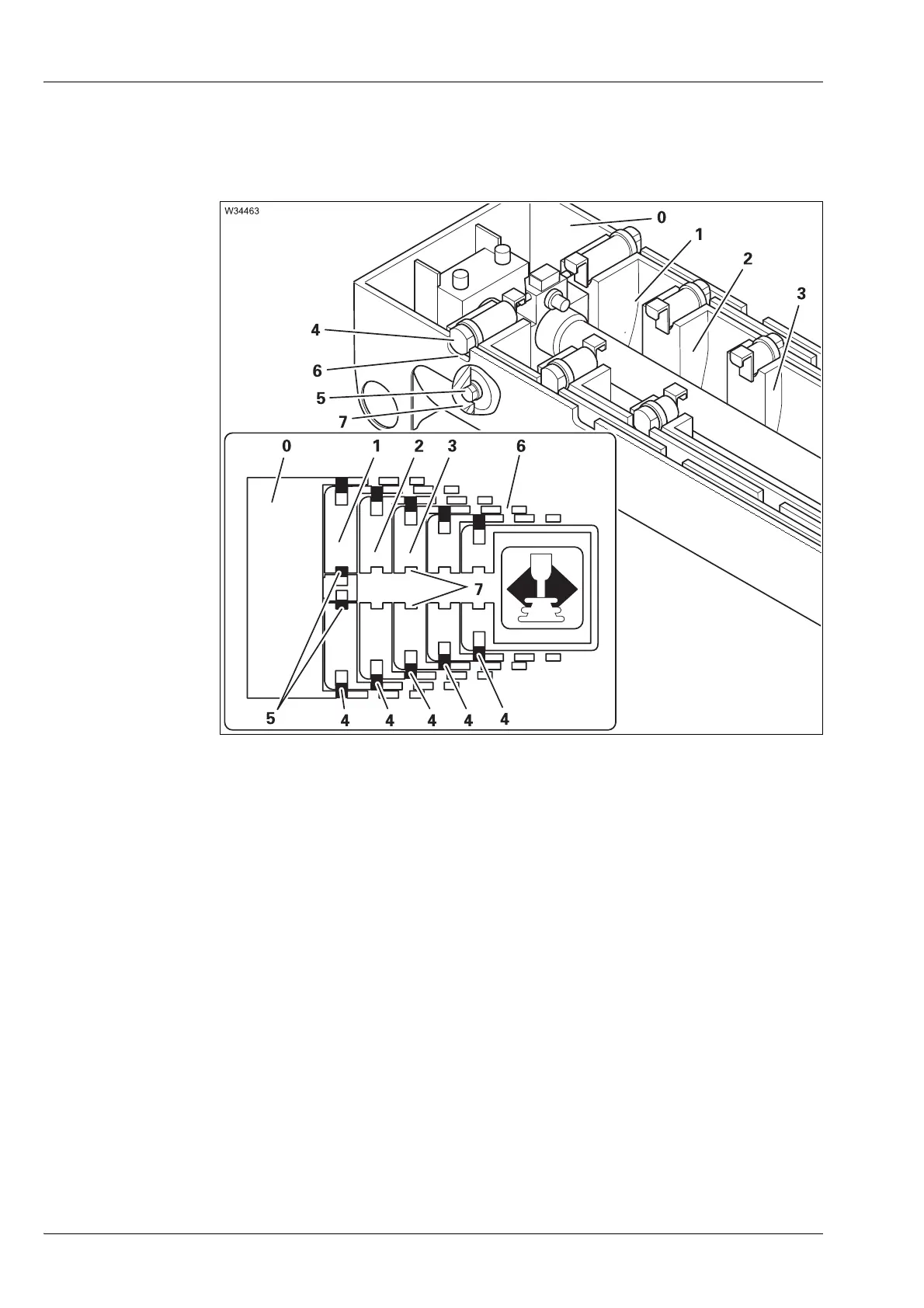

The CCS display shows a sectional view of the main boom in the menus.
The following elements are displayed:
0 Basic section
1 Telescopic section
I
2 Telescopic section II
3 Telescopic section III
4 Locking pin on the telescopic section
5 Locking pins on the telescoping cylinder
6 Cutouts, external
7 Cutouts, internal
