Crane operation
11.5 Crane operation with main boom
Operating manual 3 302 709 en 11 - 109
GMK5150L
12.01.2018
Locking the tele-
scopic section
Every telescopic section can be locked at the fixed lengths – fixed lengths;
à p. 11 - 95.
Prerequisites
– Telescoping mechanism on – symbol (3)
green
– Telescopic section unlocked – symbol (1)
red
– Telescoping cylinder locked – symbol (2)
green.
Locking

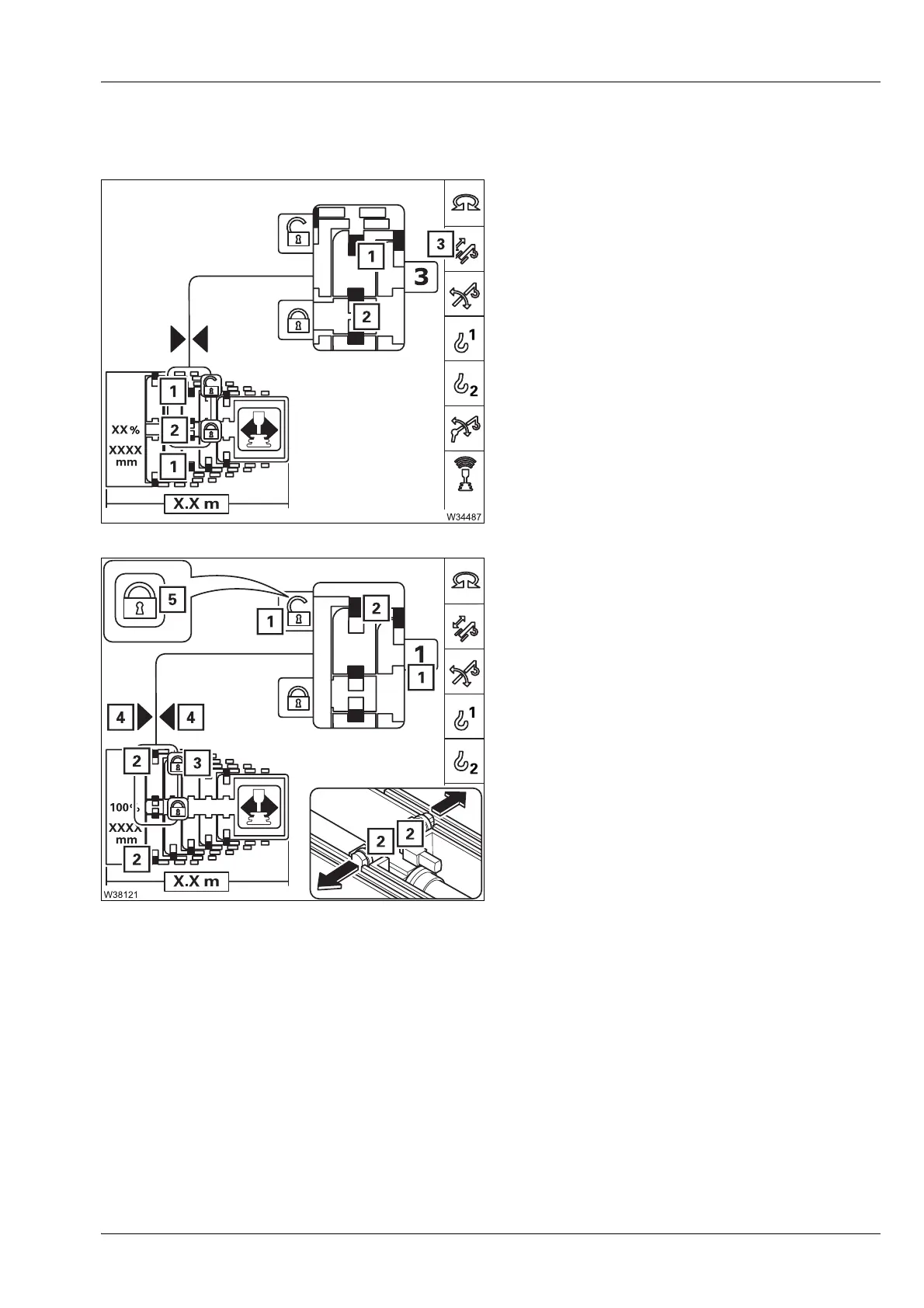

• Telescope to the desired fixed length,
e. g. telescopic section (1)
1 to 100%.
If the symbol (4) is displayed, the telescopic
section must be locked.
• Select and confirm the symbol (3).
The locking pins (2) extend.
s
–Yellow:Intermediate position
– Green: Locked – symbol (5) displayed
